This Kit Includes:

1 × Powrmatic SWQ75/1 Electric Industrial Infrared Heater

1 × High efficiency medium-wave infrared heating element assembly

1 × Marine-grade aluminium heater housing and reflector system

1 × Heavy-duty adjustable mounting bracket assembly

1 × Factory-wired electrical connection terminal

1 x SRP MC200 Digital Controller

Powerful Industrial Infrared Heating for Warehouses and Production Areas

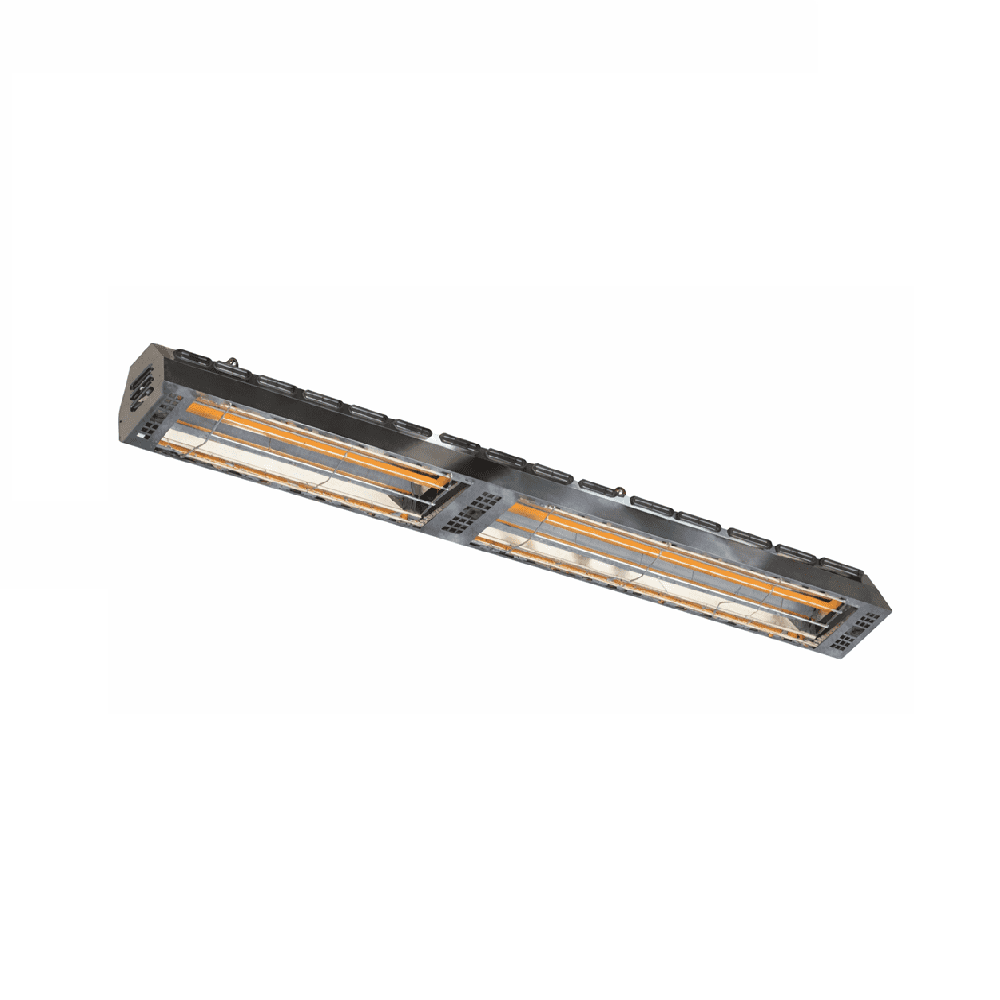

The Powrmatic SWQ75/1 Electric Industrial Infrared Heater is part of the advanced sWAVE infrared heating range, designed to deliver efficient zonal heating for industrial and commercial environments. With a heat output of 7.5 kW, the SWQ75/1 provides powerful radiant heat for work areas such as production lines, warehouse picking zones, workshops and service bays.

Infrared heating works differently from traditional space heating systems. Rather than warming the surrounding air, infrared heaters transfer heat directly to people, machinery and surfaces. This method of heating is particularly effective in large buildings with high ceilings, open loading doors or significant air movement where warm air heating systems often struggle to maintain comfort levels.

By delivering heat precisely where it is required, infrared heaters significantly reduce energy waste and provide instant warmth to occupied areas. This targeted approach makes them ideal for zonal heating applications in factories, warehouses and logistics facilities. Infrared systems can provide rapid heat output while minimising energy consumption compared with conventional heating methods.

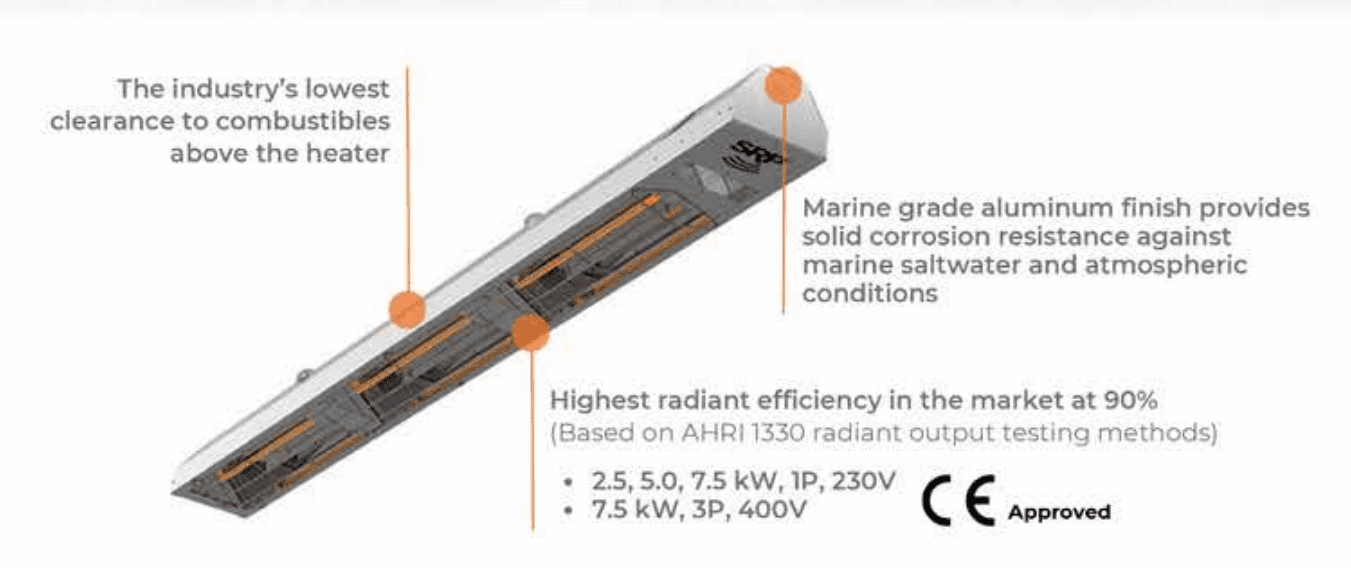

The SWQ75/1 heater features a robust marine-grade aluminium housing which provides excellent resistance to corrosion and harsh working environments. This durable construction makes the heater suitable for industrial buildings, agricultural installations, workshops and coastal environments where long-term reliability is essential.

The compact linear design allows flexible installation options including wall-mounted or ceiling-mounted configurations. When positioned above work areas, the heater provides efficient downward radiant heat coverage that improves worker comfort while reducing heating costs.

Key Product Features:

• Electric medium-wave infrared radiant heating technology
• Heat output: 7.5 kW / 22,000 Btu
• Electrical supply: 220-240V~50Hz single phase
• Instant radiant heat with no warm-up delay
• High radiant efficiency heating system
• Marine-grade aluminium construction for corrosion resistance
• Lightweight industrial heater design
• Wall mounted or ceiling mounted installation options
• Ideal for zonal heating in large buildings
• Compatible with SQ90RVC remote variable heater controller

Technical Specifications:

Model: SWQ75/1

Product Type: Electric Industrial Infrared Heater

Heat Output:
7.5 kW / 22,000 Btu

Electrical Supply:
220-240V~50Hz

Phase:
Single Phase

Current Draw:
Approx. 32 A

Construction:
Marine grade aluminium housing

Mounting Options:
Wall mounted or ceiling suspended installation

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
