This Kit Includes:

1 × Powrmatic SWQ50/1 Electric Industrial Infrared Heater

1 × High efficiency medium-wave infrared heating element assembly

1 × Marine-grade aluminium heater housing and reflector system

1 × Heavy-duty adjustable mounting bracket assembly

1 × Factory-wired electrical connection terminal

1 x SRP MC200 Digital Controller

High Efficiency Industrial Infrared Heating for Workshops and Warehouse Zones

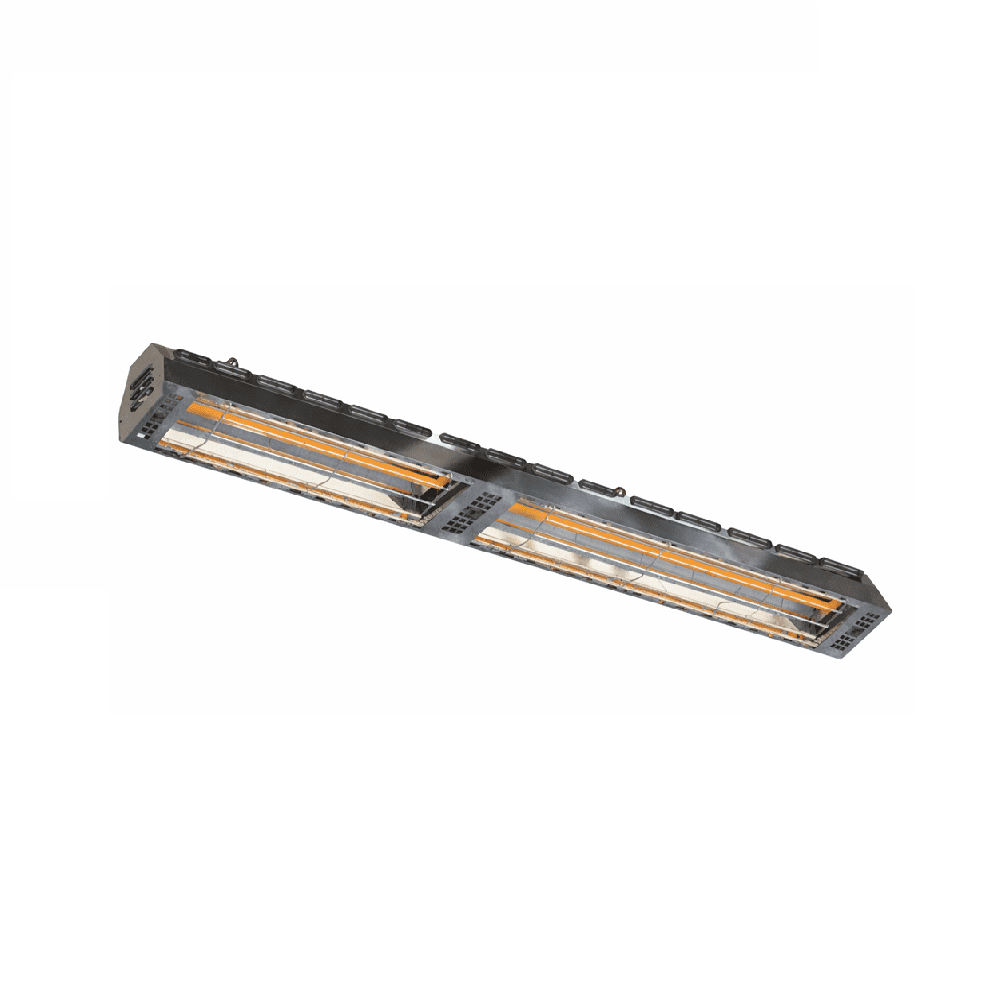

The Powrmatic SWQ50/1 Electric Industrial Infrared Heater is part of the advanced sWAVE radiant heating range designed for efficient zonal heating in industrial and commercial environments. Delivering 5kW of radiant heat output, the SWQ50/1 provides powerful localised heating for work areas such as warehouse packing stations, production lines, workshops and service bays.

Unlike conventional heating systems that attempt to warm the entire air volume within a building, infrared heaters transfer heat directly to people, machinery and surfaces. This radiant heating principle makes infrared heaters extremely effective in buildings with high ceilings, open loading doors or large air volumes where traditional warm-air heating systems often struggle to maintain comfortable temperatures.

The sWAVE heater system uses advanced radiant heating technology capable of delivering exceptionally high radiant efficiency. By directing heat precisely where it is required, the SWQ50/1 provides immediate warmth to occupied areas while reducing energy waste and improving overall heating efficiency.

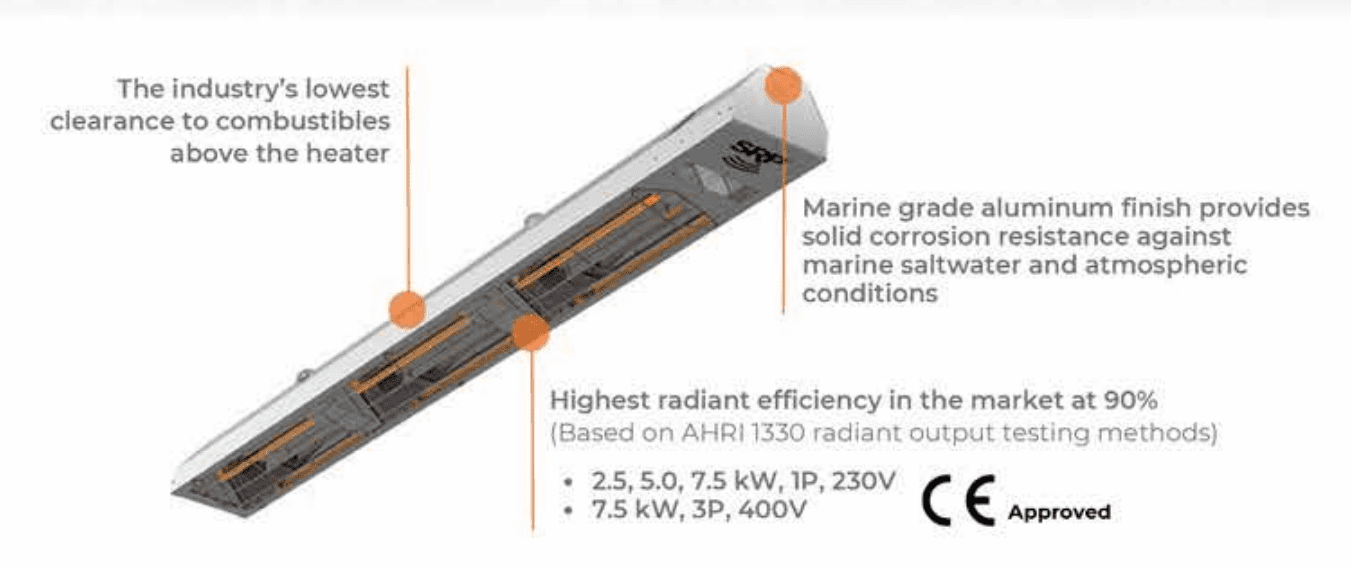

Constructed from marine-grade aluminium, the heater housing offers excellent corrosion resistance and durability in demanding industrial environments. This robust construction makes the SWQ50/1 suitable for factories, logistics buildings, workshops and agricultural installations where reliable heating performance is essential.

The compact linear design allows flexible installation options including wall-mounted or ceiling-mounted positioning, enabling heat to be directed precisely over occupied work zones. When paired with the recommended heater controller, the system provides accurate control of heat output and zonal heating management across large buildings.

Key Product Features:

• Electric medium-wave infrared radiant heating technology
• Heat output: 5kW / 18,000Btu
• Electrical supply: 220-240V~50Hz single phase
• High radiant efficiency heating system
• Instant radiant heat with no warm-up delay
• Marine-grade aluminium housing for corrosion resistance
• Lightweight industrial heater design
• Ideal for zonal heating applications in large buildings
• Wall mounted or ceiling mounted installation options
• Compatible with SQ60RVC remote variable heater controller

Technical Specifications:

Model: SWQ50/1

Product Type: Electric Industrial Infrared Heater

Heat Output:
5kW / 18,000Btu

Electrical Supply:
220-240V~50Hz

Phase:
Single Phase

Current Draw:
22A

Dimensions (L × W × H):
1270 × 165 × 107 mm (132 mm including guard)

Weight:
3.4 kg

Construction:
Marine grade aluminium housing

Mounting Options:
Wall mounted or ceiling suspended installation

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
