This Kit Includes:

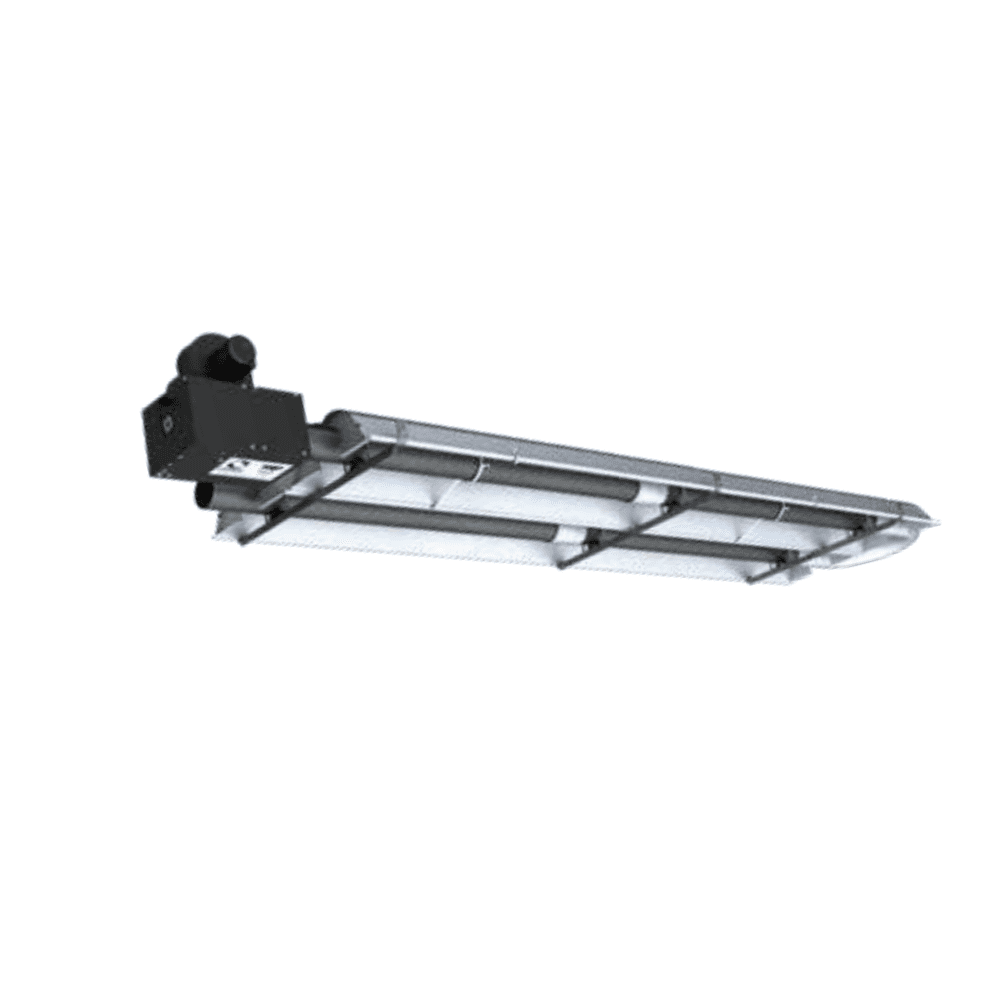

1 × Powrmatic SRP PU50 U-Tube Gas Radiant Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision-formed aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control system
1 × MC200 Optimised Control MC200V3
High Capacity 50kW U-Tube Gas Radiant Heater for Industrial and Warehouse Heating
The Powrmatic SRP PU50 is a high-output U-tube gas radiant heater designed to deliver efficient infrared heating for warehouses, factories and large industrial environments. With a heat input of 50 kW, this heater provides strong radiant heat coverage while maintaining a more compact installation footprint compared with longer linear radiant tube systems.
Using advanced infrared radiant heating technology, the PU50 warms people, equipment and floor surfaces directly rather than heating the surrounding air volume. This approach improves heating efficiency and reduces heat stratification in buildings with high ceilings or frequent door openings such as loading bays and distribution centres.
The U-tube emitter configuration provides effective radiant heat distribution while keeping the installed length manageable for industrial buildings with structural limitations. Combined with the high-efficiency aluminium reflector and gas burner system, the heater directs radiant heat precisely into the occupied workspace, delivering consistent and reliable heating performance.
Supplied with the MC200 optimised digital controller, the PU50 allows installers to implement accurate temperature control and improved energy management within industrial heating systems.
Key Product Features:
• Gas-fired U-tube radiant tube heater
• Heat input: 50 kW / 170,000 Btu
• Compact U-tube radiant emitter configuration
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital heater controller
• Designed for suspended ceiling installation
• Ideal for zoned heating within warehouses and workshops
• Reduces heat stratification in high ceiling environments
• Heavy-duty industrial construction for demanding applications
Technical Specifications:
Model: SRP PU50
Product Type: U-Tube Gas Radiant Tube Heater
Heat Input (High Fire):
50 kW
Heat Input (Low Fire):
40 kW
Heating Capacity:
50 kW / 170,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas-fired burner with combustion fan
Emitter Tube Material:
Heat-treated aluminised steel
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling or roof mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Workshops and vehicle garages
• Agricultural buildings
• Storage depots
• Zoned heating within large commercial buildings
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
