This Kit Includes:

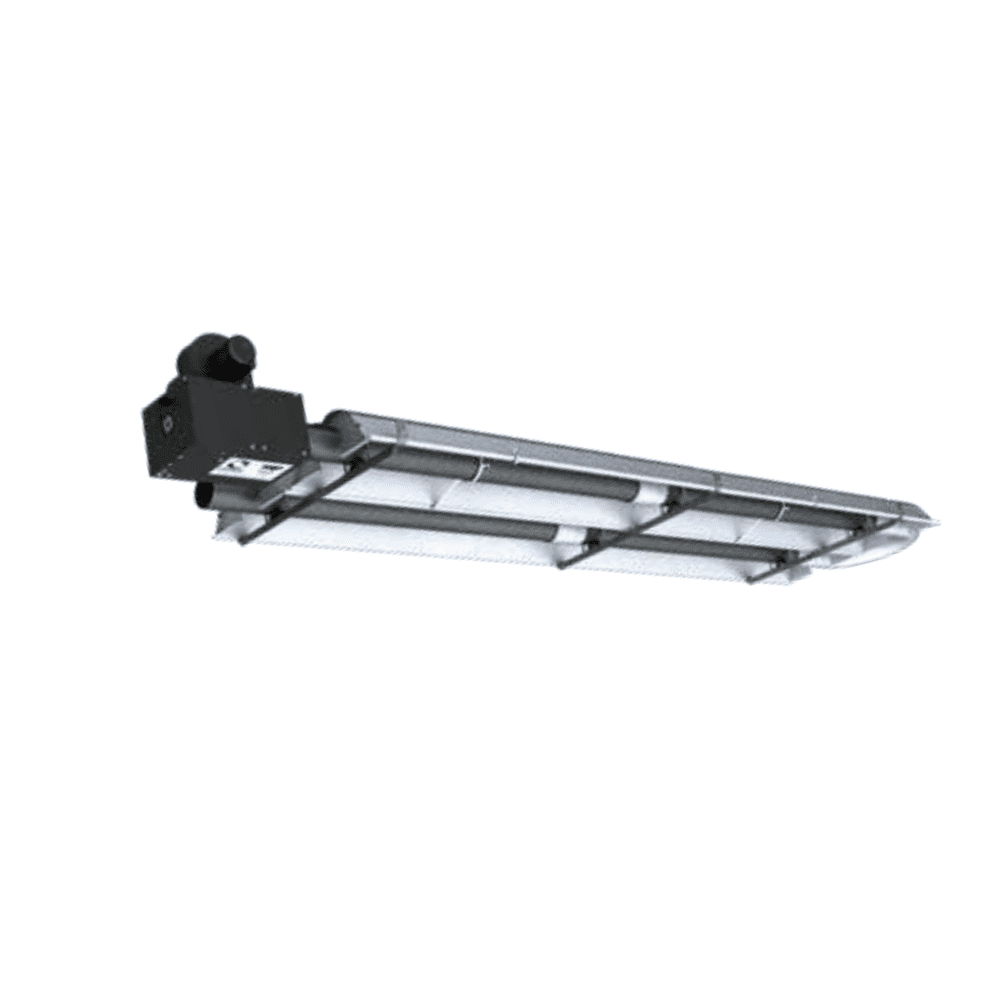

1 × Powrmatic SRP PU30 U-Tube Gas Radiant Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision-formed aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control system
1 × MC200 Optimised Control MC200V3
High Output 30kW U-Tube Gas Radiant Heater for Industrial and Warehouse Heating
The Powrmatic SRP PU30 is a high-performance U-tube gas radiant heater designed to provide efficient infrared heating for warehouses, factories and industrial environments. Delivering a heat input of 30 kW, this model provides powerful radiant heat coverage while maintaining a compact installation footprint compared with longer linear radiant heaters.
Using advanced infrared radiant heating technology, the PU30 warms people, equipment and floor surfaces directly rather than heating the surrounding air volume. This approach significantly improves heating efficiency in buildings with high ceilings or frequent door openings such as loading bays and logistics facilities.
The U-tube configuration enables strong radiant heat output while reducing the overall installation length, making it ideal for industrial buildings where space or structural limitations prevent the installation of longer linear radiant heaters. Combined with the high-efficiency aluminium reflector and gas-fired burner system, the heater provides focused and reliable radiant heating across the working environment.
Supplied with the MC200 optimised controller, the PU30 offers accurate temperature control and efficient system management for industrial heating installations.
Key Product Features:
• Gas-fired U-tube radiant tube heater
• Heat input: 30 kW / 102,000 Btu
• Compact U-tube radiant emitter configuration
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital heater controller
• Designed for suspended ceiling installation
• Ideal for zoned heating within warehouses and workshops
• Reduces heat stratification in high ceiling environments
• Heavy-duty industrial construction for demanding applications
Technical Specifications:
Model: SRP PU30
Product Type: U-Tube Gas Radiant Tube Heater
Heat Input (High Fire):
30 kW
Heat Input (Low Fire):
23 kW
Heating Capacity:
30 kW / 102,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas-fired burner with combustion fan
Emitter Tube Material:
Heat-treated aluminised steel
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling or roof mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Workshops and vehicle garages
• Agricultural buildings
• Storage depots
• Zoned heating within large commercial buildings
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
