This Kit Includes:

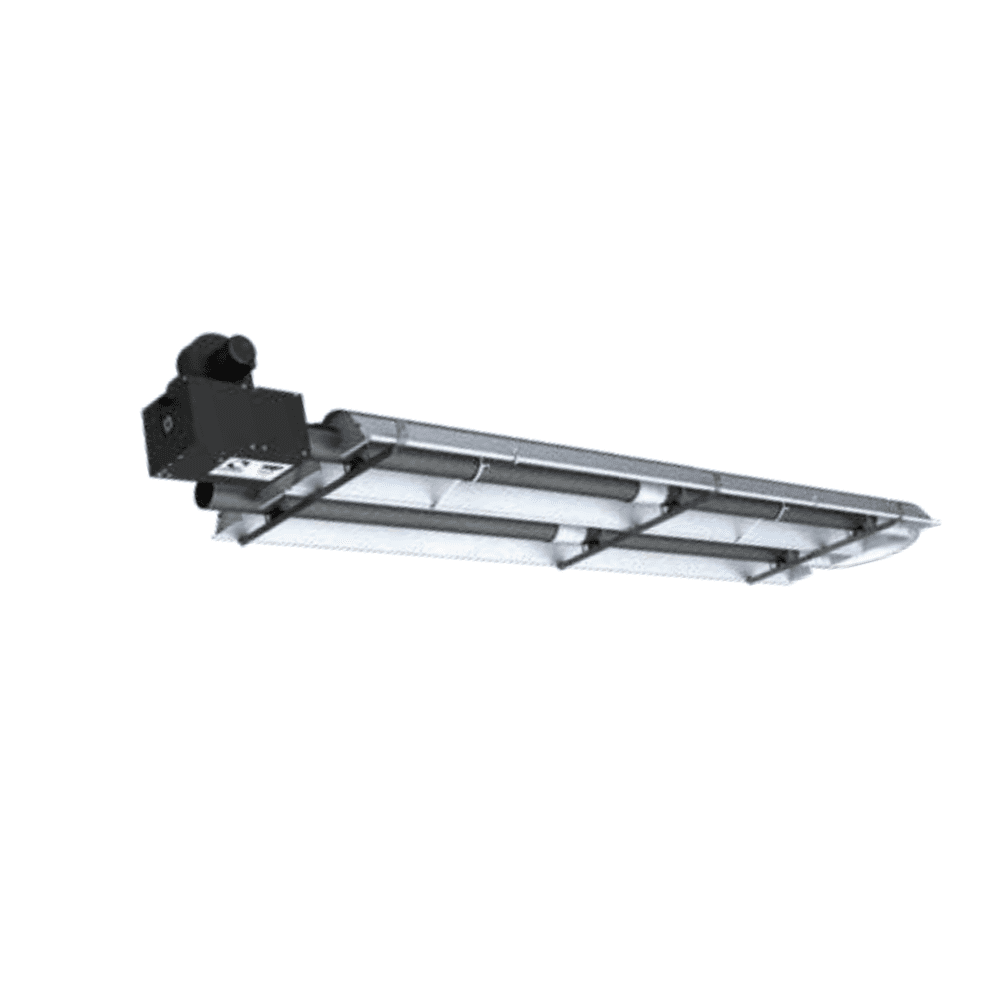

1 × Powrmatic SRP PU20 U-Tube Gas Radiant Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision-formed aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control system
1 × MC200 Optimised Control MC200V3
Efficient 22kW U-Tube Gas Radiant Heater for Industrial and Warehouse Heating
The Powrmatic SRP PU20 is a gas-fired U-tube radiant heater designed to provide efficient infrared heating for warehouses, workshops and industrial environments. With a heat input of 22 kW, this model delivers effective radiant warmth across working areas where conventional warm-air heating systems may struggle due to high roof spaces or frequent door openings.
Using advanced infrared radiant heating technology, the PU20 warms people, machinery and floor surfaces directly rather than heating the surrounding air volume. This significantly improves heating efficiency and reduces heat stratification, making it particularly suitable for industrial buildings and warehouse spaces.
The U-tube emitter configuration provides strong radiant heat coverage while maintaining a compact installed footprint compared with longer linear radiant heaters. Combined with a high-efficiency aluminium reflector and gas burner system, the heater directs infrared energy precisely into the occupied zone, improving comfort and reducing wasted heat in roof spaces.
Supplied with the MC200 optimised digital controller, the PU20 allows accurate temperature control and improved energy management for professional heating installations.
Key Product Features:
• Gas-fired U-tube radiant tube heater
• Heat input: 22 kW / 74,000 Btu
• Compact U-tube radiant emitter design
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital heater controller
• Designed for suspended ceiling installation
• Ideal for zoned heating within warehouses and workshops
• Reduces heat stratification in high ceiling environments
• Durable industrial construction for long service life
Technical Specifications:
Model: SRP PU20
Product Type: U-Tube Gas Radiant Tube Heater
Heat Input (High Fire):
22 kW
Heat Input (Low Fire):
17 kW
Heating Capacity:
22 kW / 74,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas-fired burner with combustion fan
Emitter Tube Material:
Heat-treated aluminised steel
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling or roof mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Workshops and vehicle garages
• Agricultural buildings
• Storage depots
• Zoned heating within large commercial buildings
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
