This Kit Includes:

1 × Powrmatic SRP PL50 Linear Gas Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly
1 × Precision-formed aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control system
1 × MC200 Optimised Control MC200V3

High Output 52kW Linear Gas Radiant Tube Heater for Industrial and Warehouse Heating

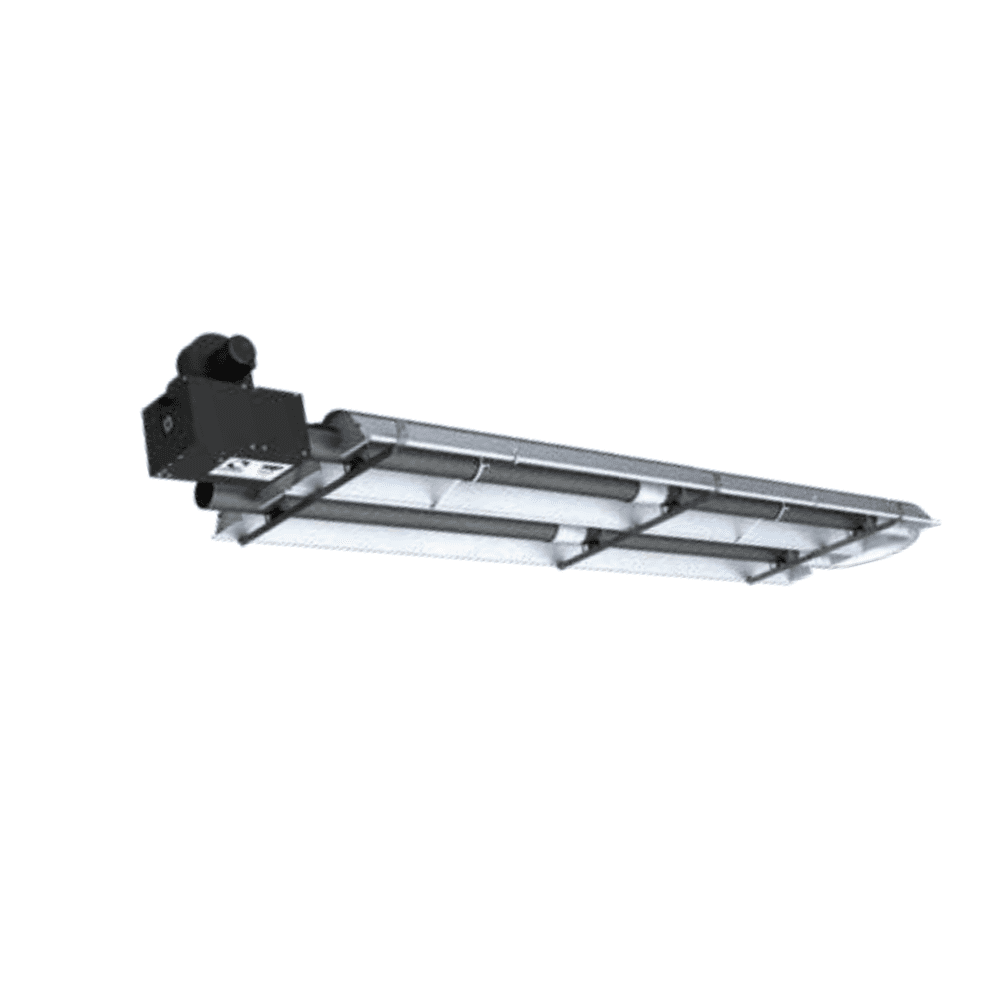

The Powrmatic SRP PL50 is a high-capacity linear gas radiant tube heater designed to deliver powerful infrared heating for large industrial and commercial environments. With a heat input of 52 kW, this heater is ideally suited to warehouses, factories and distribution centres where maintaining comfortable working temperatures can be difficult using conventional warm-air heating systems.

Utilising advanced infrared radiant heating technology, the SRP PL50 heats people, equipment and floor surfaces directly rather than warming the surrounding air volume. This heating method reduces heat stratification and improves energy efficiency in buildings with high ceilings or frequent door openings such as loading bays and logistics facilities.

The extended radiant tube configuration distributes heat evenly along the emitter length while the high-efficiency aluminium reflector directs radiant energy downward into the occupied area. This ensures effective heat coverage across large floor spaces while reducing energy losses often associated with traditional heating systems.

Built for long-term reliability and industrial use, the SRP PL50 provides robust heating performance in demanding warehouse and manufacturing environments.

Key Product Features:

• Gas-fired radiant tube heater
• Heat input: 52 kW / 177,000 Btu
• Linear radiant emitter tube configuration
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital heater controller
• Designed for suspended ceiling installation
• Ideal for zoned heating within large industrial buildings
• Reduces heat stratification in high roof spaces
• Heavy-duty industrial construction

Technical Specifications:

Model: SRP PL50
Product Type: Linear Gas Radiant Tube Heater

Heat Input (High Fire):
52 kW

Heat Input (Low Fire):
41 kW

Heating Capacity:
52 kW / 177,000 Btu

Fuel Type:
Natural Gas (G20) or LPG (G31)

Heating Method:
Infrared Radiant Tube

Electrical Supply:
220-240V~50Hz 1Ph

Burner Type:
Gas-fired burner with combustion fan

Emitter Tube Material:
Heat-treated aluminised steel

Reflector Type:
High-efficiency aluminium radiant reflector

Installation Type:
Suspended ceiling or roof mounting

Applications:

• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Workshops and vehicle maintenance garages
• Agricultural buildings
• Commercial storage facilities
• Zoned heating within large industrial spaces
