This Kit Includes:

1 × Powrmatic SRP PL40 Linear Gas Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly
1 × Precision-formed aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control system
1 × MC200 Optimised Control MC200V3

High Capacity 43kW Linear Gas Radiant Tube Heater for Industrial and Warehouse Heating

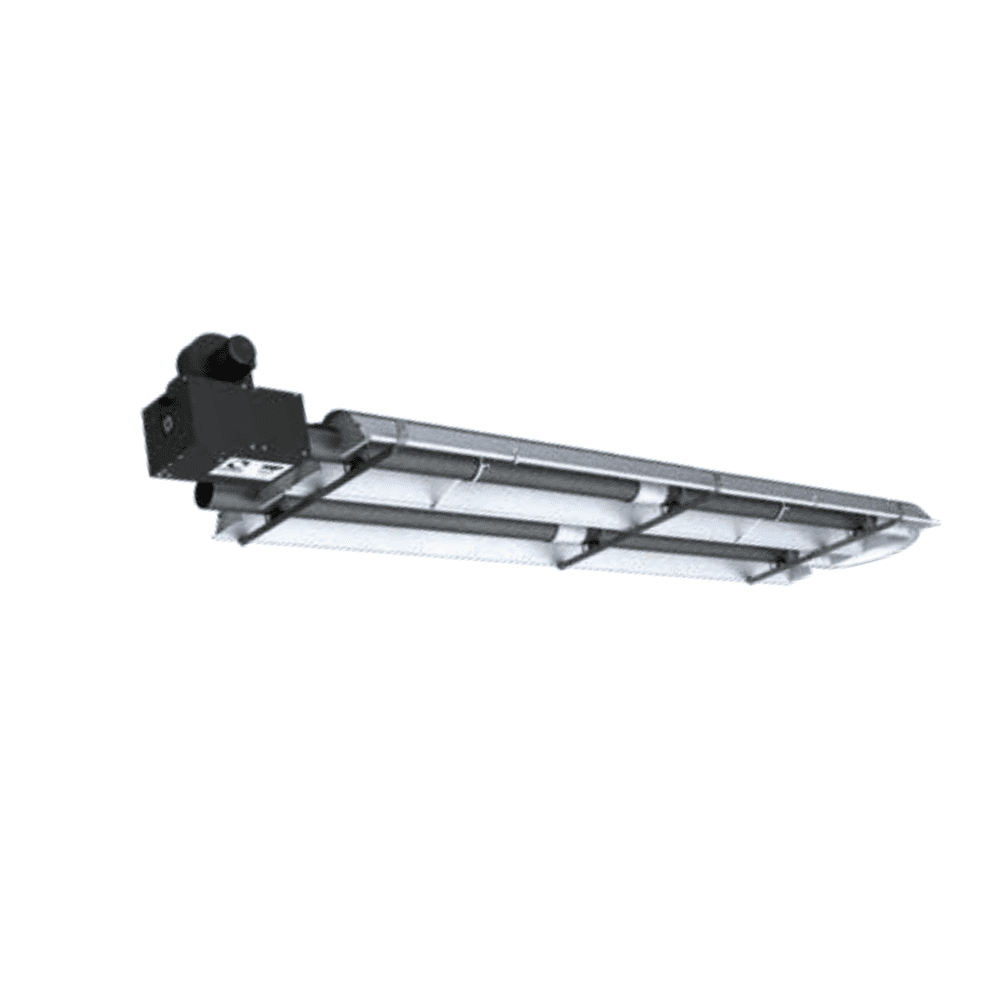

The Powrmatic SRP PL40 is a high-output linear gas radiant tube heater designed to deliver powerful and efficient infrared heating for large industrial and commercial environments. With a heat input of 43 kW, this model is ideally suited to warehouses, manufacturing facilities and distribution centres where traditional warm-air heating systems can struggle due to high ceilings and large open spaces.

Utilising advanced infrared radiant heating technology, the SRP PL40 warms people, machinery and floor surfaces directly rather than heating the surrounding air volume. This significantly reduces heat stratification and improves heating efficiency in buildings where heat loss through roof space or open doors would normally impact performance.

The extended linear radiant tube emitter distributes heat evenly along its length, while the high-efficiency aluminium reflector directs infrared energy downward into the occupied zone. This ensures the radiant heat generated by the gas burner is focused precisely where it is required, delivering effective zoned heating and improved comfort across the working environment.

Built with durable industrial components and designed for long service life, the SRP PL40 provides reliable heating performance in demanding commercial installations.

Key Product Features:

• Gas-fired radiant tube heater
• Heat input: 43 kW / 146,000 Btu
• Linear radiant emitter tube configuration
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital heater controller
• Designed for suspended ceiling installation
• Ideal for zoned heating in large industrial buildings
• Reduces heat stratification in high roof environments
• Heavy-duty industrial construction

Technical Specifications:

Model: SRP PL40
Product Type: Linear Gas Radiant Tube Heater

Heat Input (High Fire):
43 kW

Heat Input (Low Fire):
34 kW

Heating Capacity:
43 kW / 146,000 Btu

Fuel Type:
Natural Gas (G20) or LPG (G31)

Heating Method:
Infrared Radiant Tube

Electrical Supply:
220-240V~50Hz 1Ph

Burner Type:
Gas-fired burner with combustion fan

Emitter Tube Material:
Heat-treated aluminised steel

Reflector Type:
High-efficiency aluminium radiant reflector

Installation Type:
Suspended ceiling or roof mounting

Applications:

• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Workshops and vehicle maintenance garages
• Agricultural buildings
• Commercial storage facilities
• Zoned heating within large industrial spaces
