This Kit Includes:
- 1 × Powrmatic SRP PL20LS Linear Gas Radiant Tube Heater
- 1 × High-efficiency aluminised steel radiant emitter tube assembly
- 1 × Precision aluminium reflector system
- 1 × Gas burner assembly with combustion fan
- 1 × Mounting suspension bracket kit
- 1 × Factory-installed ignition and safety control system
- 1 x MC200 optimised control MC200V3

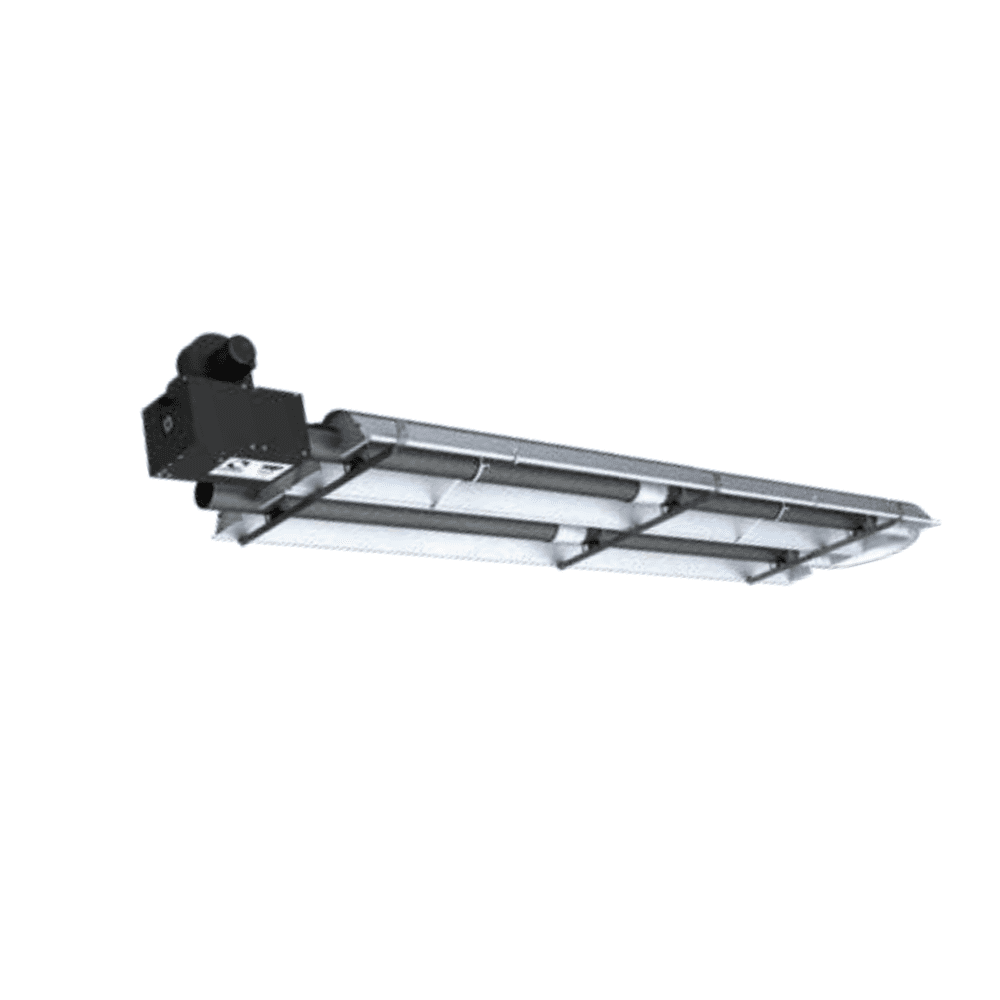

High Output 22kW Gas Radiant Tube Heater for Industrial and Warehouse Heating
The Powrmatic SRP PL20LS is a linear gas-fired radiant tube heater designed to provide efficient infrared heating for industrial buildings, warehouses and commercial spaces. Delivering a heat input of 22kW, this model is engineered to provide effective zoned heating within large open areas where traditional warm air heating systems can struggle to maintain consistent comfort levels.
Using advanced radiant heating technology, the SRP PL20LS heats people, equipment and floor surfaces directly rather than warming the air volume within the building. This approach reduces heat stratification and minimises energy losses in buildings with high ceilings or frequent door openings such as loading bays, workshops and manufacturing facilities.
The linear radiant tube configuration distributes heat evenly along the emitter length, while the high-efficiency aluminium reflector directs infrared energy downward into the occupied zone. Combined with a gas-fired burner system and combustion fan, the heater provides reliable industrial heating performance with excellent operational efficiency.
This model is particularly well suited to narrow warehouse aisles, production areas and workspaces where focused heating coverage is required.
Key Product Features:
• Gas-fired radiant tube heater
• Heat input: 22kW
• Linear radiant emitter tube design
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for natural gas or LPG operation
• Designed for suspended ceiling installation
• Ideal for zoned heating in large buildings
• Reduces heat stratification in high roof spaces
• Durable industrial construction for demanding environments
Technical Specifications:
Model: SRP PL20LS
Product Type: Linear Gas Radiant Tube Heater
Heat Input (High Fire):
22kW
Heat Input (Low Fire):
17kW
Fuel Type:
Natural Gas or LPG
Heating Method:
Infrared Radiant Tube
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas-fired burner with combustion fan
Emitter Tube Material:
Heat-treated aluminised steel
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling or roof mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Workshops and garages
• Distribution centres
• Agricultural buildings
• Storage depots
• Zoned heating for large industrial spaces
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
