This Kit Includes:
1 × Powrmatic SRP PL20 Linear Gas Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly
1 × Precision aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Mounting suspension bracket kit
1 × Factory-installed ignition and safety control system
1 x MC200 optimised control MC200V3

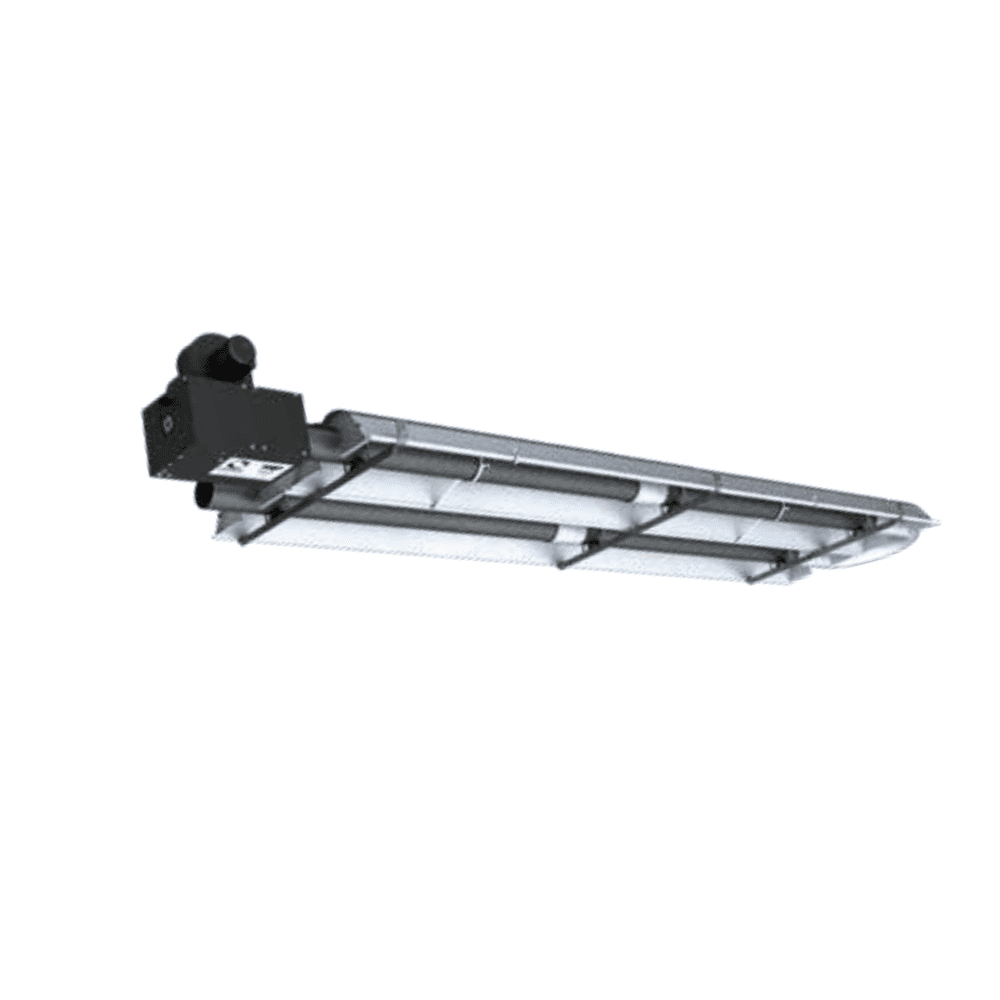

High Output 22kW Linear Gas Radiant Tube Heater for Industrial and Warehouse Heating
The Powrmatic SRP PL20 is a linear gas-fired radiant tube heater engineered to provide efficient infrared heating for industrial buildings, warehouses and commercial workspaces. Delivering a heat input of 22kW, this heater is designed to provide consistent radiant warmth across large areas where conventional warm-air systems often struggle to maintain comfort.
Using advanced infrared heating technology, the SRP PL20 warms people, machinery and floor surfaces directly rather than heating the surrounding air volume. This approach significantly reduces heat stratification in buildings with high ceilings and improves heating efficiency in spaces with frequent door openings such as loading bays and production areas.
The extended linear radiant tube design allows heat to be distributed evenly along the emitter length, providing wider radiant coverage than compact models. A high-efficiency aluminium reflector directs infrared heat downward into the occupied zone, ensuring the energy generated by the gas burner is delivered precisely where it is required.
Designed for durability and long-term industrial use, the SRP PL20 is commonly installed in warehouses, factories and distribution centres where reliable zoned heating is essential.
Key Product Features:
• Gas-fired radiant tube heater
• Heat input: 22kW
• Linear radiant emitter tube configuration
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Two-stage burner operation for improved efficiency
• Suitable for natural gas or LPG operation
• Designed for suspended ceiling installation
• Ideal for zoned heating in large industrial buildings
• Reduces heat stratification in high ceiling environments
• Robust industrial construction for demanding applications
Technical Specifications:
Model: SRP PL20
Product Type: Linear Gas Radiant Tube Heater
Heat Input (High Fire):
22kW
Heat Input (Low Fire):
17kW
Fuel Type:
Natural Gas or LPG
Heating Method:
Infrared Radiant Tube
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas-fired burner with combustion fan
Emitter Tube Material:
Heat-treated aluminised steel
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling or roof mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Workshops and vehicle garages
• Agricultural buildings
• Storage depots
• Zoned heating within large commercial buildings
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
