This Kit Includes:
1 × Powrmatic SRP PL10 Linear Gas Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube
1 × Precision aluminium reflector system
1 × Gas burner assembly with combustion fan
1 × Mounting bracket suspension kit
1 × Factory-installed safety and ignition controls
1 x MC200 optimised control MC200V3

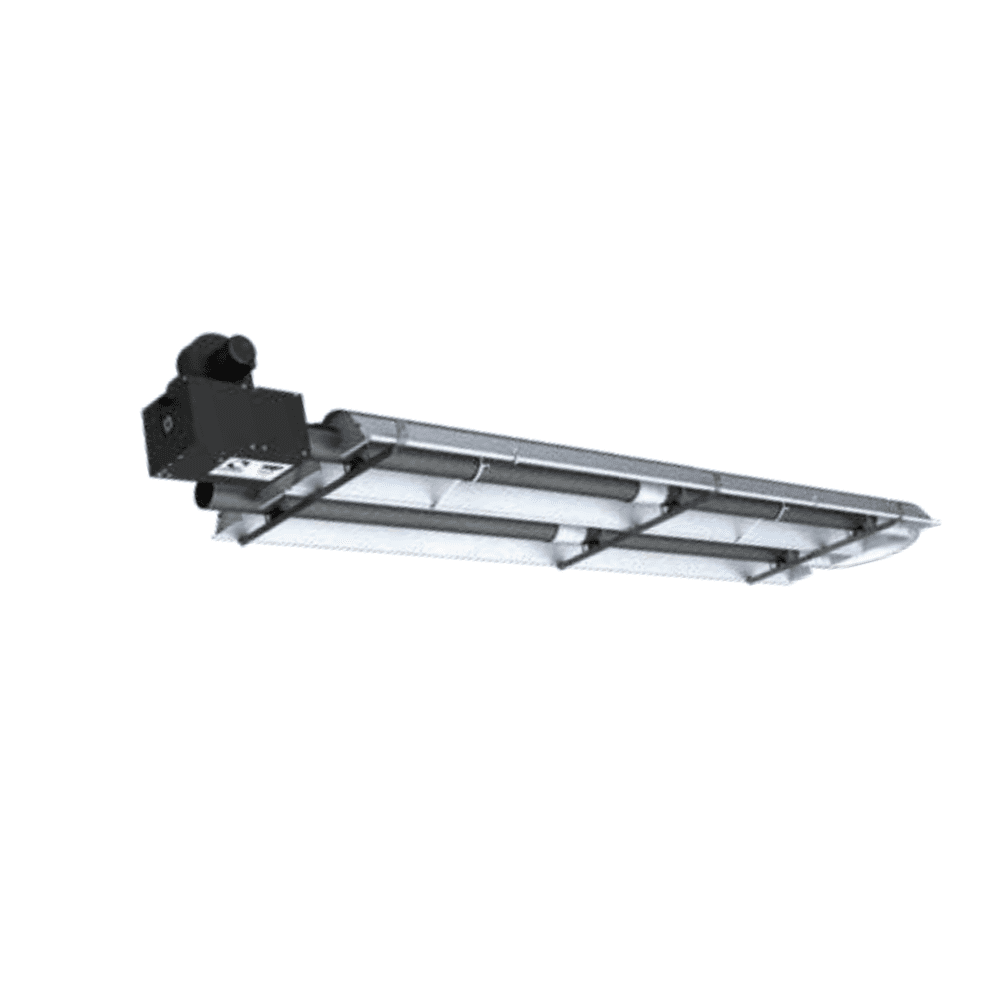

Compact 11kW Gas Radiant Tube Heater for Industrial and Warehouse Heating
The Powrmatic SRP PL10 is a linear gas-fired radiant tube heater designed to deliver efficient infrared heating for industrial and commercial buildings. With a heat input of 11kW, this compact radiant heater provides effective spot or zoned heating for workshops, warehouses and smaller industrial spaces where traditional warm-air heating systems may be inefficient.
Using infrared radiant heating technology, the SRP PL10 warms people, floors and equipment directly rather than heating the air volume of the building. This approach significantly reduces heat stratification and improves comfort levels in buildings with high ceilings or frequently opened doors. The high-efficiency reflector directs radiant heat downward into the occupied area, ensuring energy is delivered precisely where it is needed.
The linear radiant tube design allows heat to be distributed evenly along the emitter length, making the PL10 particularly suitable for narrow buildings, work areas or production zones requiring focused heating performance.
Key Product Features:
• Gas-fired radiant tube heater
• Heat input: 11kW
• Linear radiant emitter tube design
• Infrared radiant heating technology
• High-efficiency aluminium reflector system
• Suitable for natural gas or LPG operation
• Two-stage burner operation for improved efficiency
• Designed for industrial and commercial heating applications
• Reduces heat stratification in high ceiling buildings
• Ideal for spot heating or zoned heating installations
• Durable industrial construction for long service life
Technical Specifications:
Model: SRP PL10
Product Type: Linear Gas Radiant Tube Heater
Heat Input:
11kW
Fuel Type:
Natural Gas or LPG
Heating Method:
Infrared Radiant Tube
Electrical Supply:
230V~50Hz 1Ph
Burner Type:
Gas-fired burner with combustion fan
Emitter Tube Material:
Heat-treated aluminised steel
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling or roof mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Workshops and garages
• Distribution centres
• Agricultural buildings
• Commercial storage units
• Zoned heating within large industrial spaces
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
