This Kit Includes:

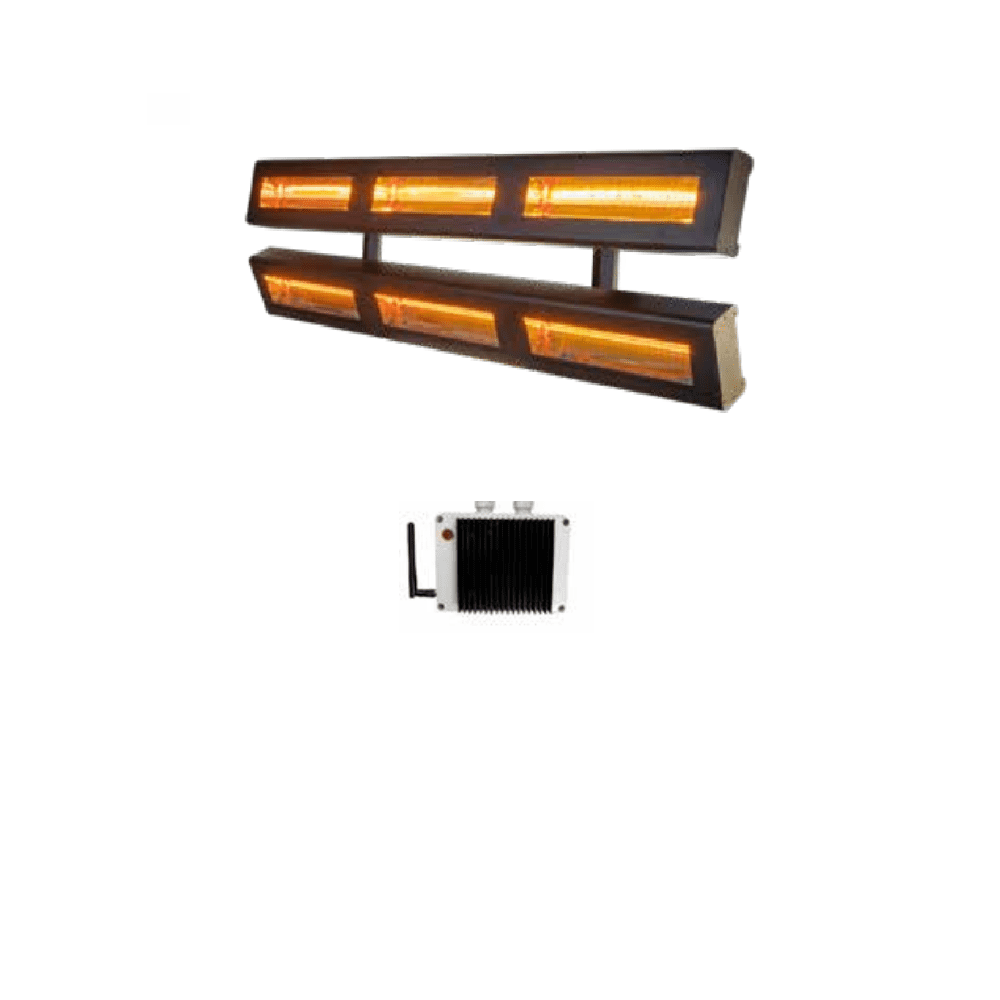

1 × Powrmatic SQ90H6/INF Electric Quartz Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (6 × 1.5kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

Infinity Series Industrial Quartz Infrared Heater

The Powrmatic SQ90H6/INF Electric Quartz Infrared Heater is part of the Infinity modular infrared heater range designed for large commercial and industrial environments. Using shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and working surfaces directly rather than heating the surrounding air volume.

Infrared heating is particularly effective in buildings such as warehouses, factories and distribution centres where conventional warm-air heating systems can lose efficiency due to high ceilings, open doors or large air volumes. By directing heat precisely into occupied zones, infrared heaters provide immediate comfort while significantly reducing wasted energy.

The Powrmatic SQ electric infrared heater range has been designed specifically for zonal heating applications, allowing heat to be delivered directly to the working areas rather than attempting to heat the entire building space. This targeted heating approach can dramatically improve heating efficiency in large industrial buildings.

The Infinity heater design allows multiple heaters to be connected together to form modular heating arrays. This configuration is ideal for warehouse aisles, production lines and large open industrial spaces where uniform heat coverage across long working areas is required.

The SQ90H6/INF model delivers 9kW of radiant heating output using six high-intensity quartz infrared lamps, providing powerful and efficient heating for large industrial zones.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 9kW / 31,000Btu
• Instant heat output with no warm-up delay
• Infinity modular heater system for linked installations
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large industrial buildings

Technical Specifications:

Model: SQ90H6/INF

Product Type: Electric Quartz Infrared Heater

Heat Output:
9kW / 31,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
6 × 1.5kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Typical Mounting Height:
Approx. 4–5 m depending on application

Coverage Area:
Approx. 43–45 m²

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
