This Kit Includes:

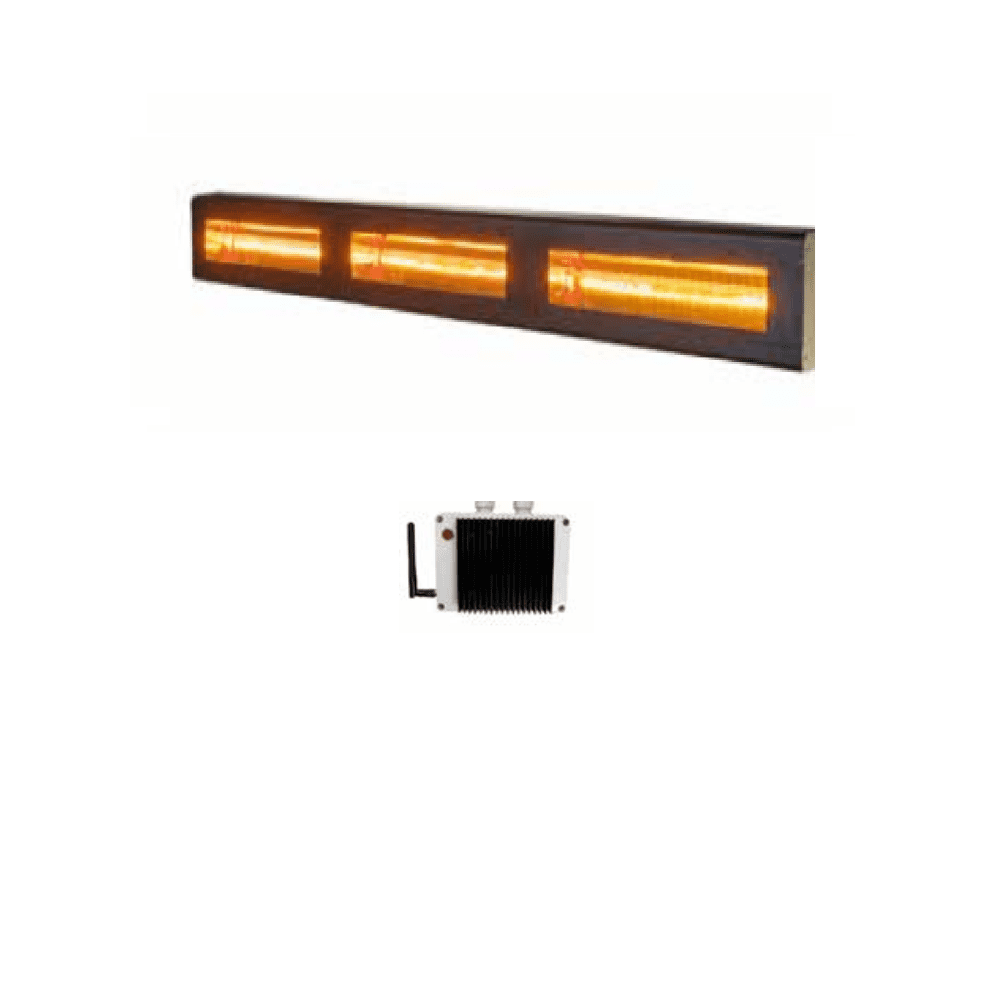

1 × Powrmatic SQ60H3/INF Electric Quartz Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (3 × 2kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ60RVC 6kW Remote Variable Heater Controller

Infinity Series Industrial Quartz Infrared Heater

The Powrmatic SQ60H3/INF Electric Quartz Infrared Heater is part of the Infinity modular infrared heating range designed for large commercial and industrial environments. Using shortwave quartz infrared technology, the heater delivers instant radiant heat that warms people, machinery and surfaces directly rather than heating the surrounding air.

Infrared heating is particularly effective in buildings such as warehouses, factories and distribution centres where traditional warm-air heating systems can lose efficiency due to high ceilings, open doors and large air volumes. By directing heat into occupied work zones, infrared heaters provide immediate comfort while reducing wasted energy.

Quartz infrared heaters produce intense radiant energy using high-temperature quartz heating lamps, which emit infrared radiation that is directed towards the working area using reflective housings. This allows rapid heat delivery and highly efficient zonal heating.

The Infinity heater series has been designed to allow multiple heaters to be linked together into modular heating arrays. This makes them particularly suitable for production lines, warehouse aisles and large industrial workspaces where consistent heating across extended areas is required.

The SQ60H3/INF model delivers 6kW of radiant heating output using three high-intensity quartz infrared lamps. The elongated Infinity heater design allows multiple units to be installed in continuous arrays to create larger heating systems.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 6kW / 20,000Btu
• Instant radiant heat with no warm-up delay
• Infinity modular system design for linking multiple heaters
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for demanding industrial environments
• Compatible with SQ60RVC remote heater controller
• Energy-efficient zonal heating solution for large industrial buildings

Technical Specifications:

Model: SQ60H3/INF

Product Type: Electric Quartz Infrared Heater

Heat Output:
6kW / 20,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
3 × 2kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Typical Mounting Height:
Approx. 3–4 m depending on application

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
