This Kit Includes:

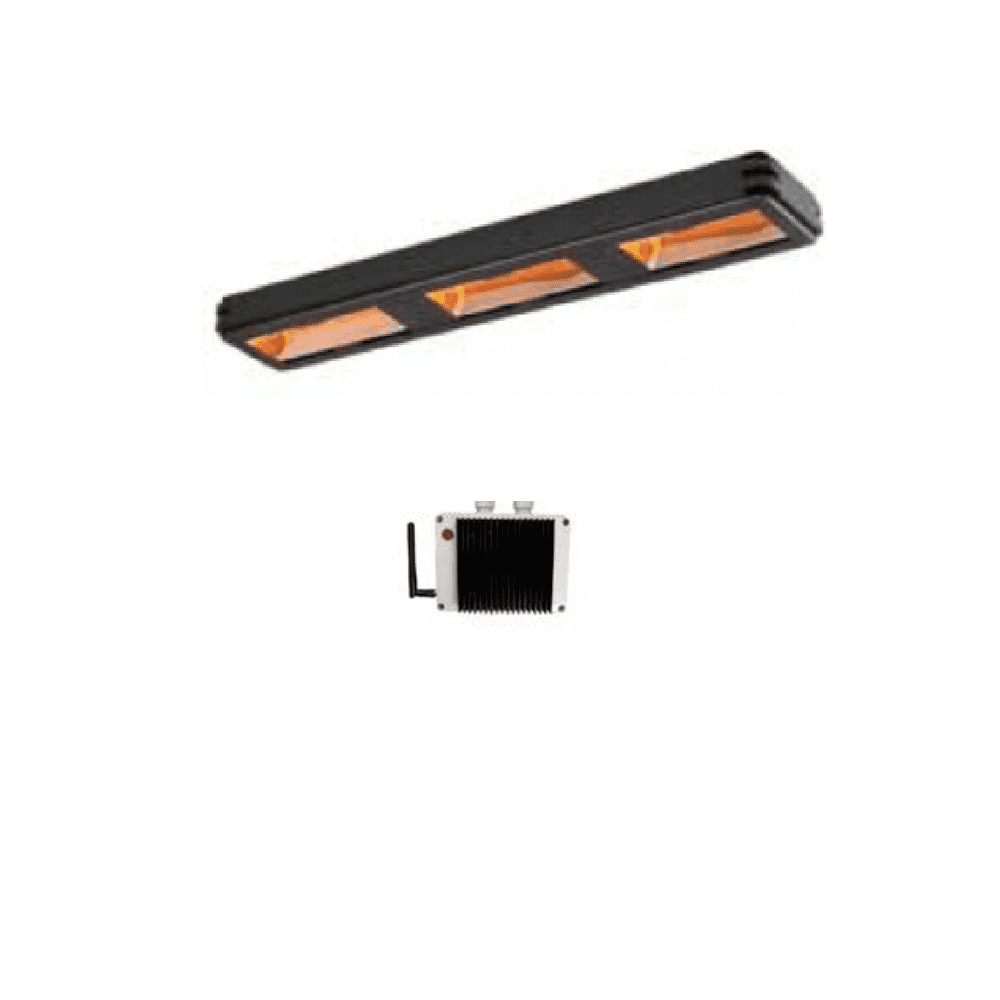

1 × Powrmatic SQ60H3 Electric Quartz Horizontal Industrial Infrared Heater

1 × Quartz infrared heating lamp assembly (3 × 2kW)

1 × Adjustable wall or suspension mounting bracket

1 × Protective heater guard and aluminium reflector housing

1 × Factory pre-wired electrical connection terminal

1 × SQ60RVC 6kW Remote Variable Heater Controller

High Capacity Quartz Infrared Heater for Industrial Workspaces

The Powrmatic SQ60H3 Electric Quartz Infrared Heater is a high-capacity radiant heating solution designed to deliver fast and efficient warmth in demanding commercial and industrial environments. Using high-intensity shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and surfaces directly rather than heating the surrounding air.

This heating approach is particularly effective in warehouses, workshops and manufacturing facilities where conventional warm-air heating systems often lose efficiency due to high ceilings, large air volumes or frequently opened doors. By directing heat precisely to the occupied working zone, infrared heaters provide immediate comfort while reducing wasted energy.

The SQ heater range has been engineered to provide efficient zonal heating, allowing warmth to be delivered only where it is required rather than heating entire building volumes. This targeted heating method can significantly improve energy efficiency and reduce operating costs in large industrial spaces.

The SQ60H3 model delivers 6kW of radiant heating output through three high-intensity quartz heating lamps. The horizontal heater configuration produces a linear heating pattern that is ideal for workbenches, production lines and long workstation areas where heat needs to follow the working space.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 6kW / 21,000Btu
• Instant heat output with no warm-up delay
• Horizontal heater design for linear heat distribution
• Direct radiant heat to people and working surfaces
• Industrial aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• Ideal for warehouses, workshops and production lines
• Compatible with SQ60RVC remote heater controller
• Energy-efficient zonal heating solution for large buildings

Technical Specifications:

Model: SQ60H3

Product Type: Electric Quartz Infrared Heater

Heat Output:
6kW / 21,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
220-240V~50Hz 1Ph

Heating Elements:
3 × 2kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
