This Kit Includes:

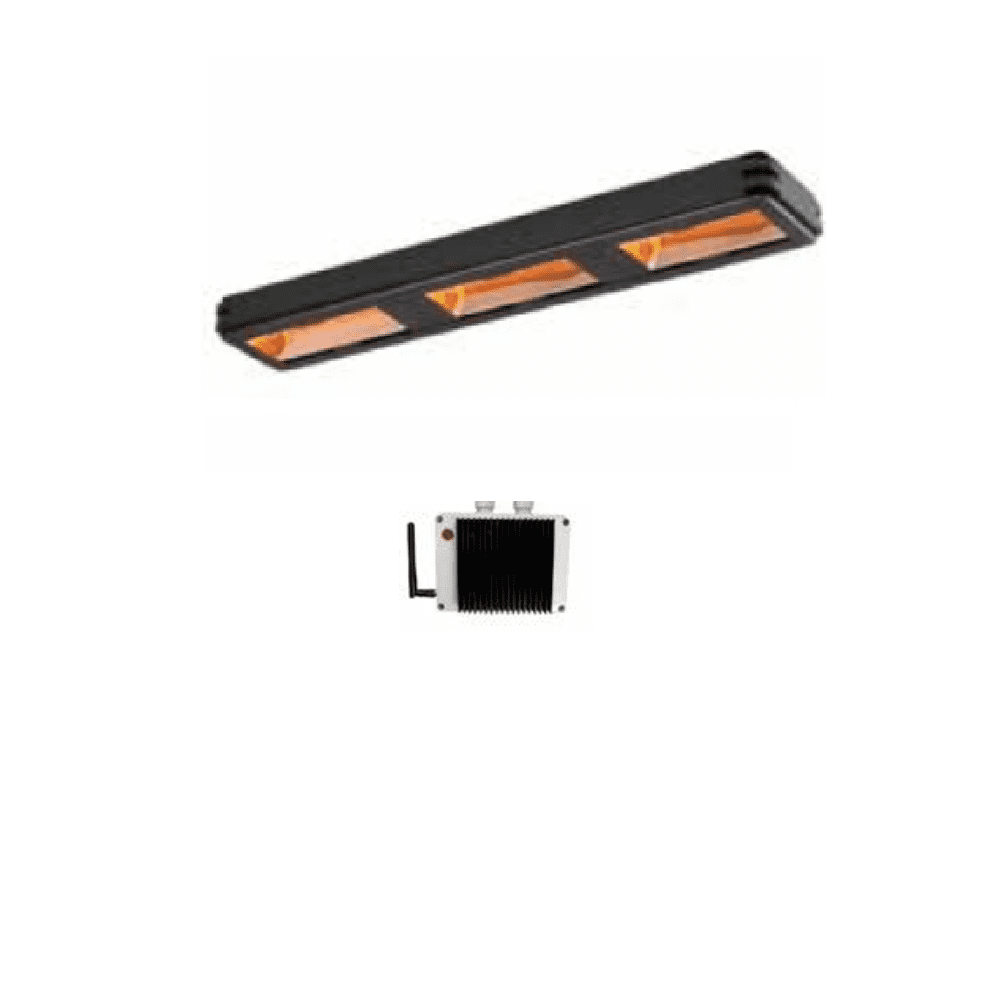

1 × Powrmatic SQ45V3 Electric Quartz Vertical Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (3 × 1.5kW)
1 × Adjustable wall or suspension mounting bracket
1 × Protective heater guard and aluminium reflector housing
1 × Factory pre-wired electrical connection terminal

1 × SQ60RVC 6kW Remote Variable Heater Controller

High Output Quartz Infrared Heater for Industrial Workstations

The Powrmatic SQ45V3 Electric Quartz Infrared Heater is designed to deliver rapid and efficient radiant heating for industrial and commercial environments. Using high-intensity shortwave quartz infrared technology, the heater produces instant radiant warmth that heats people, machinery and surfaces directly rather than heating the surrounding air.

This heating method is particularly effective in buildings such as warehouses, workshops and manufacturing facilities where large air volumes, high ceilings or open doors can cause heat loss when using conventional warm-air heating systems. By delivering heat directly to the working zone, infrared heaters provide faster comfort and improved energy efficiency.

The SQ heater range is engineered to provide zonal heating rather than attempting to warm entire building volumes. By focusing heat into occupied areas, energy consumption can be reduced while maintaining comfortable working conditions in demanding industrial environments. The SQ electric infrared heater series is designed specifically for large spaces such as factories and warehouses, providing instant warmth and improved energy efficiency.

The SQ45V3 model produces 4.5kW of radiant heat output through three high-intensity quartz heating lamps. The horizontal heater design produces a linear heating pattern that is ideal for workbenches, production lines and industrial workstations where heat needs to follow the working area.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 4.5kW / 15,000Btu
• Instant heat output with no warm-up delay
• Horizontal heater configuration for linear heating coverage
• Direct radiant heat to people and working surfaces
• Industrial aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• Suitable for warehouses, workshops and production lines
• Compatible with SQ60RVC remote heater controller
• Energy-efficient zonal heating solution for large buildings

Technical Specifications:

Model: SQ45V3

Product Type: Electric Quartz Infrared Heater

Heat Output:
4.5kW / 15,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
220-240V~50Hz 1Ph

Heating Elements:
3 × 1.5kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
