This Kit Includes:

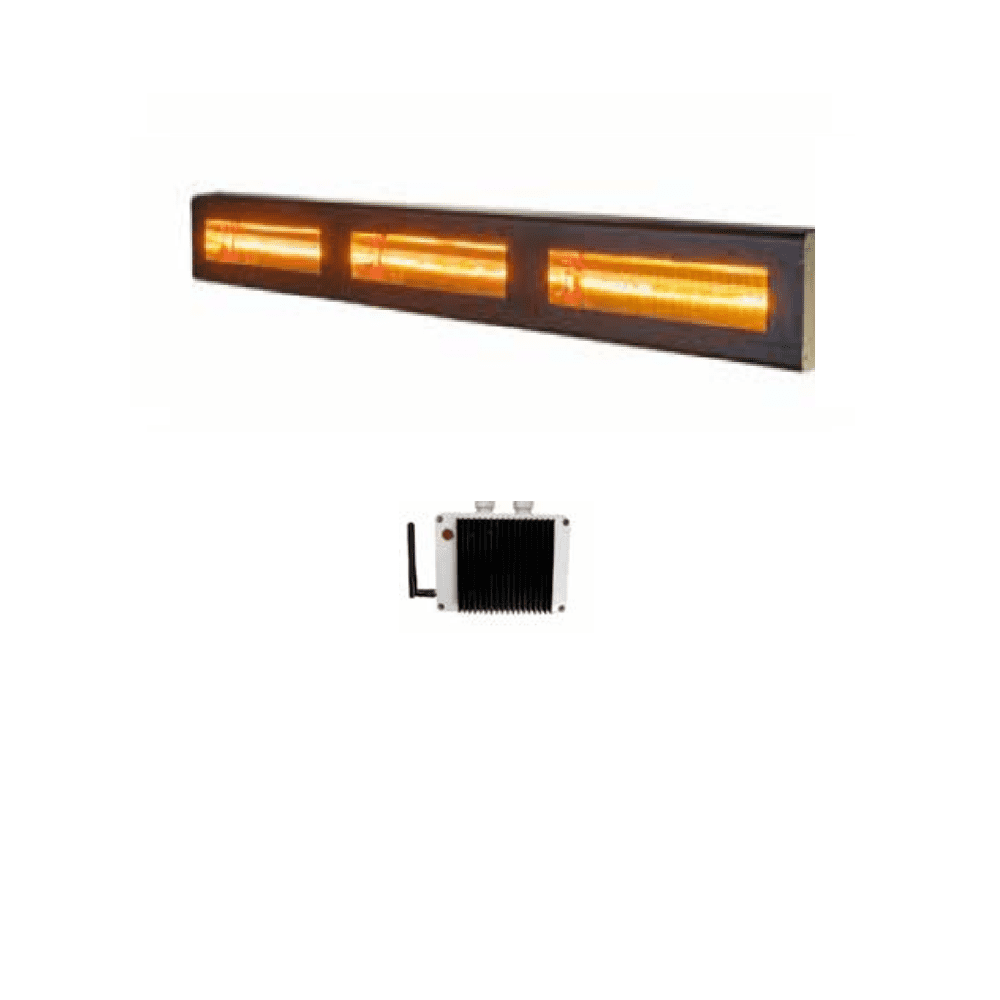

1 × Powrmatic SQ45H3/INF Electric Quartz Horizontal Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (3 × 1.5kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ60RVC 6kW Remote Variable Heater Controller

Infinity Series Industrial Quartz Infrared Heater

The Powrmatic SQ45H3/INF Electric Quartz Infrared Heater forms part of the Infinity range of modular industrial infrared heaters designed for large commercial and industrial environments. Using shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and surfaces directly rather than heating the surrounding air volume.

This method of heating is particularly effective in buildings such as warehouses, factories and distribution centres where traditional warm-air heating systems can struggle due to high ceilings, open doors and large air volumes. Radiant infrared heat targets occupied areas directly, providing immediate warmth while reducing wasted energy.

The Infinity heater range has been designed for modular installation where multiple heaters can be linked together to create larger heating systems. This approach allows heating systems to be scaled to suit large buildings while maintaining efficient zonal heating control.

The SQ45H3/INF model delivers 4.5kW of radiant heating output using three high-intensity quartz infrared lamps. The extended Infinity heater body allows heaters to be combined into continuous heating arrays, making the system ideal for production lines, warehouse aisles and large industrial workspaces.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 4.5kW / 15,000Btu
• Instant heat output with no warm-up delay
• Infinity modular system design
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for industrial environments
• Compatible with SQ60RVC remote heater controller
• Designed for zonal heating in large industrial buildings

Technical Specifications:

Model: SQ45H3/INF

Product Type: Electric Quartz Infrared Heater

Heat Output:
4.5kW / 15,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
3 × 1.5kW quartz infrared lamps

Heater Length:
Approx. 1796 mm

Minimum Mounting Height:
Approx. 2.5 m

Mounting Type:
Horizontal wall mounted or suspended installation

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
