This Kit Includes:

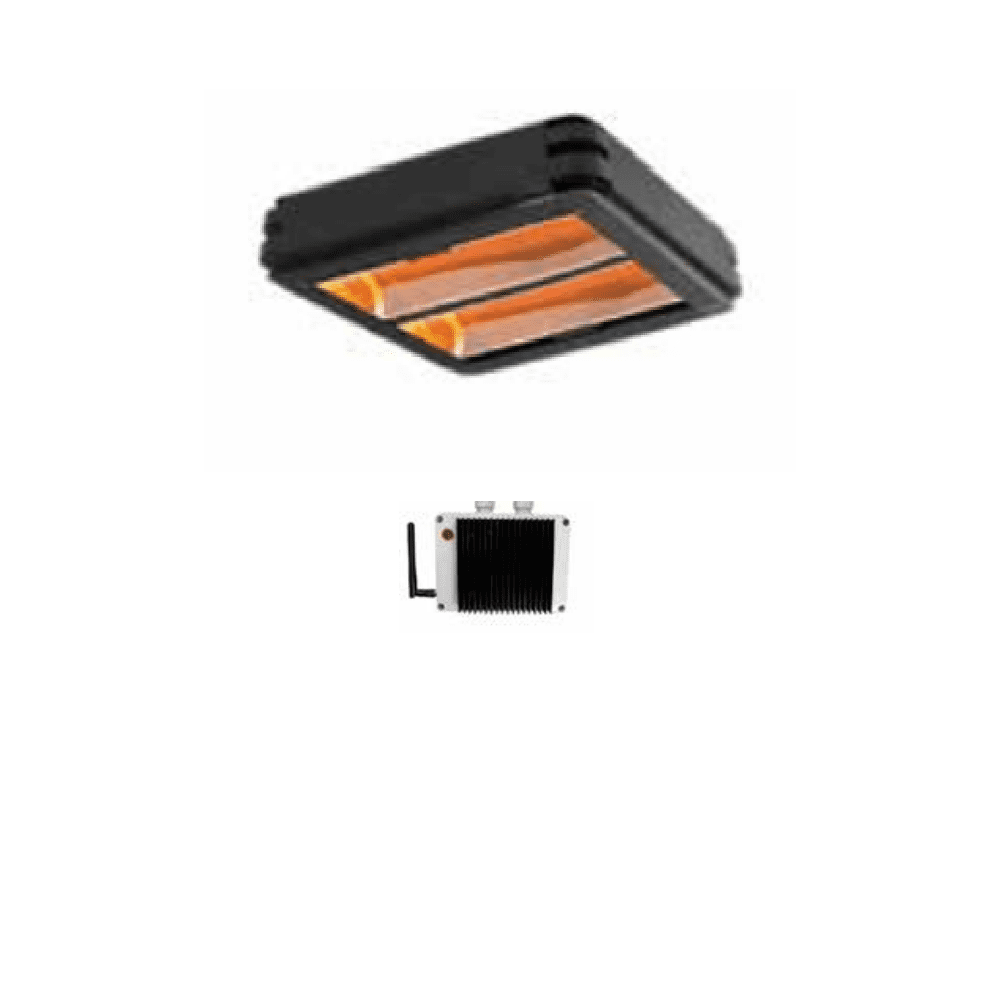

1 × Powrmatic SQ40V2 Electric Quartz Vertical Industrial Infrared Heater

1 × Quartz infrared heating lamp assembly (2 × 2kW)

1 × Adjustable wall or suspension mounting bracket

1 × Protective heater guard and aluminium reflector housing

1 × Factory pre-wired electrical connection terminal

1 × SQ60RVC 6kW Remote Variable Heater Controller

Vertical Industrial Infrared Heater for Wide Area Spot Heating

The Powrmatic SQ40V2 Electric Quartz Infrared Heater is designed to deliver powerful, responsive radiant heating in industrial and commercial buildings where conventional warm-air heating can be inefficient. Using shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and surfaces directly rather than heating the surrounding air.

This heating method is particularly effective in large spaces such as warehouses, workshops and manufacturing facilities where high ceilings or frequently opened doors can cause heat loss with traditional systems. Infrared heating focuses warmth directly into occupied zones, improving comfort while reducing wasted energy.

The SQ heater range has been designed specifically for zonal heating applications. Instead of attempting to heat the entire building volume, these heaters deliver targeted warmth to working areas, which can significantly reduce overall energy consumption while maintaining comfortable working environments.

The SQ40V2 model produces 4kW of radiant heat output through two high-intensity quartz heating lamps and features a vertical heater configuration. This design spreads heat over a wider area compared with horizontal models, making it ideal for heating standing work areas, entrances and general workstation zones where broader coverage is required.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 4kW / 14,000Btu
• Instant heat output with no warm-up delay
• Vertical heater design for wider heating coverage
• Direct radiant heat to people and working surfaces
• Industrial aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated for demanding industrial environments
• Compatible with SQ60RVC remote heater controller
• Energy-efficient zonal heating solution for large buildings

Technical Specifications:

Model: SQ40V2

Product Type: Electric Quartz Infrared Heater

Heat Output:
4kW / 14,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
220-240V~50Hz 1Ph

Heating Elements:
2 × 2kW quartz infrared lamps

Dimensions (H × W × L):
110 × 525 × 422 mm

Ingress Protection:
IP65

Mounting Type:
Vertical wall mounted or suspended installation

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
