This Kit Includes:

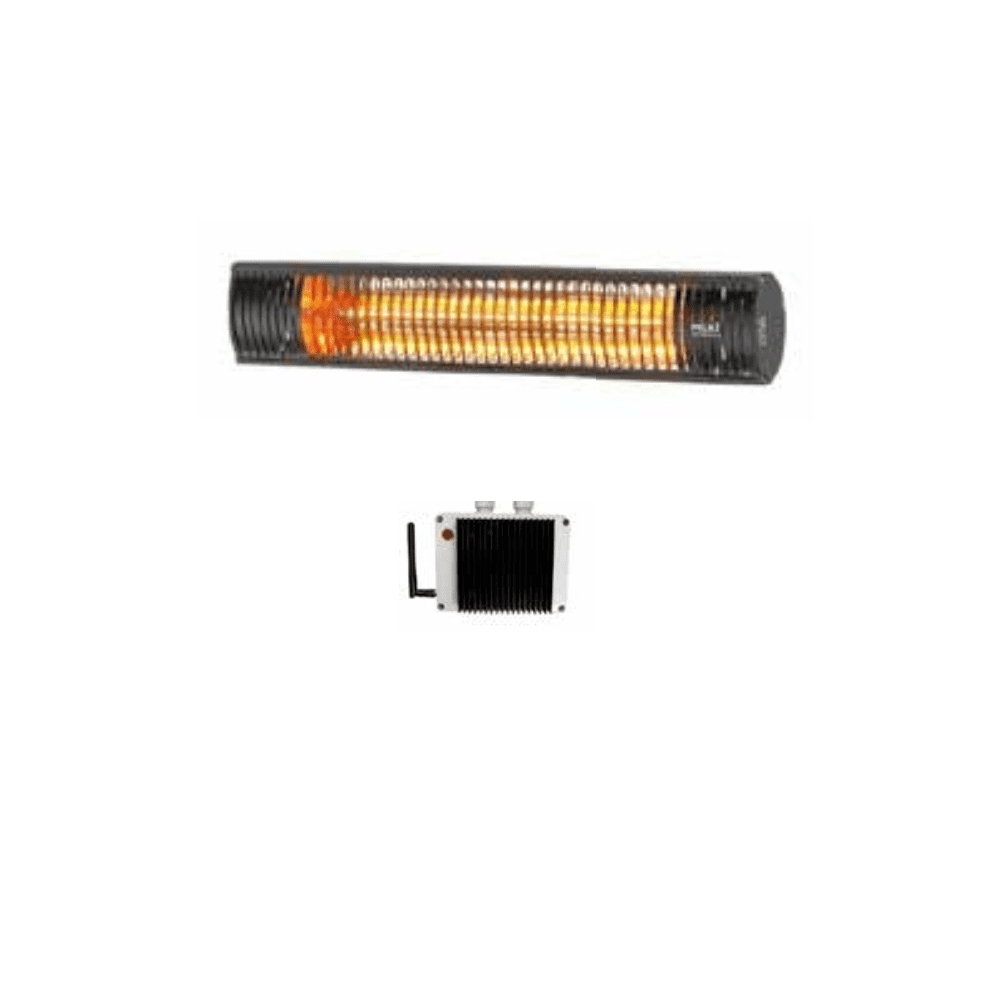

1 × Powrmatic SQ20H1 Electric Quartz Horizontal Industrial Infrared Heater

1 × Integrated quartz infrared heating lamp (1 × 2kW)

1 × Adjustable wall or suspension mounting bracket

1 × Protective safety guard and heater housing

1 × Factory fitted electrical supply cable and connection

1 x SQ30RVC 3kW Remote Variable Heater Controller

Compact Industrial Quartz Infrared Heater for Targeted Spot Heating

The Powrmatic SQ20H1 Electric Quartz Infrared Heater is a compact industrial heating solution designed to provide rapid and efficient warmth to specific work areas in commercial and industrial environments. Using high-intensity quartz infrared technology, the heater emits radiant heat that warms people, machinery and surfaces directly rather than heating surrounding air.

This method of heating is particularly effective in spaces such as warehouses, workshops, loading bays and production areas where warm air heating systems can lose efficiency due to high ceilings, open doors or large air volumes. Infrared radiant heating provides instant comfort and targeted heat exactly where it is required.

The SQ range from Powrmatic has been designed to offer an energy-efficient alternative to conventional heating systems by focusing heat into occupied zones rather than attempting to heat entire building volumes. The SQ20H1 model delivers 2kW of radiant heat output from a single quartz heating lamp and is ideally suited to small industrial work areas requiring reliable and responsive heating.

Its compact horizontal design allows the heater to be easily mounted on walls or suspended from ceilings above workstations, entrances or production areas where focused spot heating is required.

Key Product Features:

• Electric quartz infrared radiant heating technology
• Heat output: 2kW / 7,000Btu
• Single phase electrical supply
• Instant heat output with no warm-up delay
• Direct radiant heat to people and surfaces
• IPX5 rated for industrial environments
• Long-life low glare quartz heating lamp
• Adjustable wall or suspended mounting options
• High-efficiency parabolic reflector design
• Suitable for targeted industrial spot heating applications

Technical Specifications:

Model: SQ20H1

Product Type: Electric Quartz Infrared Heater

Heat Output:
2kW / 7,000Btu

Heating Technology:
Quartz infrared radiant heating

Electrical Supply:
220-240V~50Hz 1Ph

Heating Element:
1 × 2kW quartz infrared lamp

Dimensions (H × W × L):
75 × 100 × 540 mm

Minimum Mounting Height:
1.8 m

Minimum Distance from Ceiling:
0.25 m

Minimum Distance from Side Wall:
0.5 m

Lamp Length:
330 mm

Weight (without guard):
2.5 kg

Cable Length:
1.8 m

Recommended Heating Coverage:
Up to approximately 6m² work area

Applications:

• Warehouses and distribution centres
• Workshops and garages
• Factory production lines
• Industrial workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail and commercial spaces

Accessories:
