This Kit Includes:

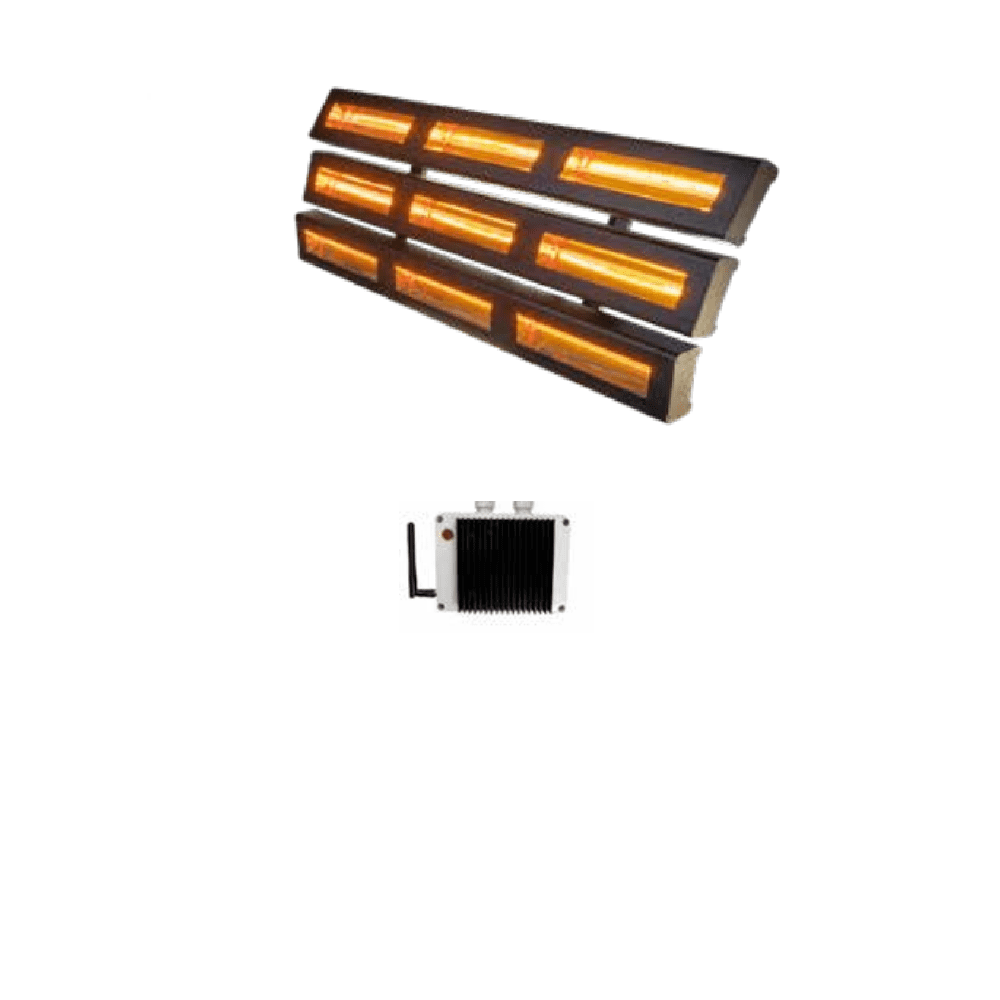

1 × Powrmatic SQ180H9/INF Electric Quartz Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (9 × 2kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

Infinity Series Ultra High-Output Quartz Infrared Heater

The Powrmatic SQ180H9/INF Electric Quartz Infrared Heater is the largest model within the Infinity modular industrial infrared heater range. Designed for very large commercial and industrial buildings, the heater uses high-intensity shortwave quartz infrared technology to deliver instant radiant heat directly to people, machinery and working surfaces rather than heating the surrounding air.

Infrared heating is particularly effective in large environments such as warehouses, factories and logistics centres where traditional warm-air heating systems can struggle due to high ceilings, large air volumes and frequently opened doors. Radiant heaters focus heat directly into occupied zones, providing rapid comfort while minimising wasted energy.

The Powrmatic SQ electric infrared heater range has been developed specifically for zonal heating applications. Instead of heating entire building volumes, the heaters warm people and work areas directly, helping to improve heating efficiency and reduce overall energy consumption in large industrial spaces. The system is capable of significant energy savings while delivering instant warmth in large open buildings.

Infinity models are designed to operate as part of modular heating systems. Multiple heaters can be installed in linked arrays to provide consistent heating coverage across long areas such as warehouse aisles or production lines.

The SQ180H9/INF model produces 18kW of radiant heat output using nine high-intensity quartz heating lamps, making it suitable for large industrial work zones where powerful and efficient radiant heating is required.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 18kW / 61,000Btu
• Instant radiant heat with no warm-up delay
• Infinity modular heater system for linked installations
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large industrial buildings

Technical Specifications:

Model: SQ180H9/INF

Product Type: Electric Quartz Infrared Heater

Heat Output:
18kW / 61,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
9 × 2kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Typical Mounting Height:
Approx. 6–8 m depending on application

Coverage Area:
Approx. 90–100 m²

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
