This Kit Includes:

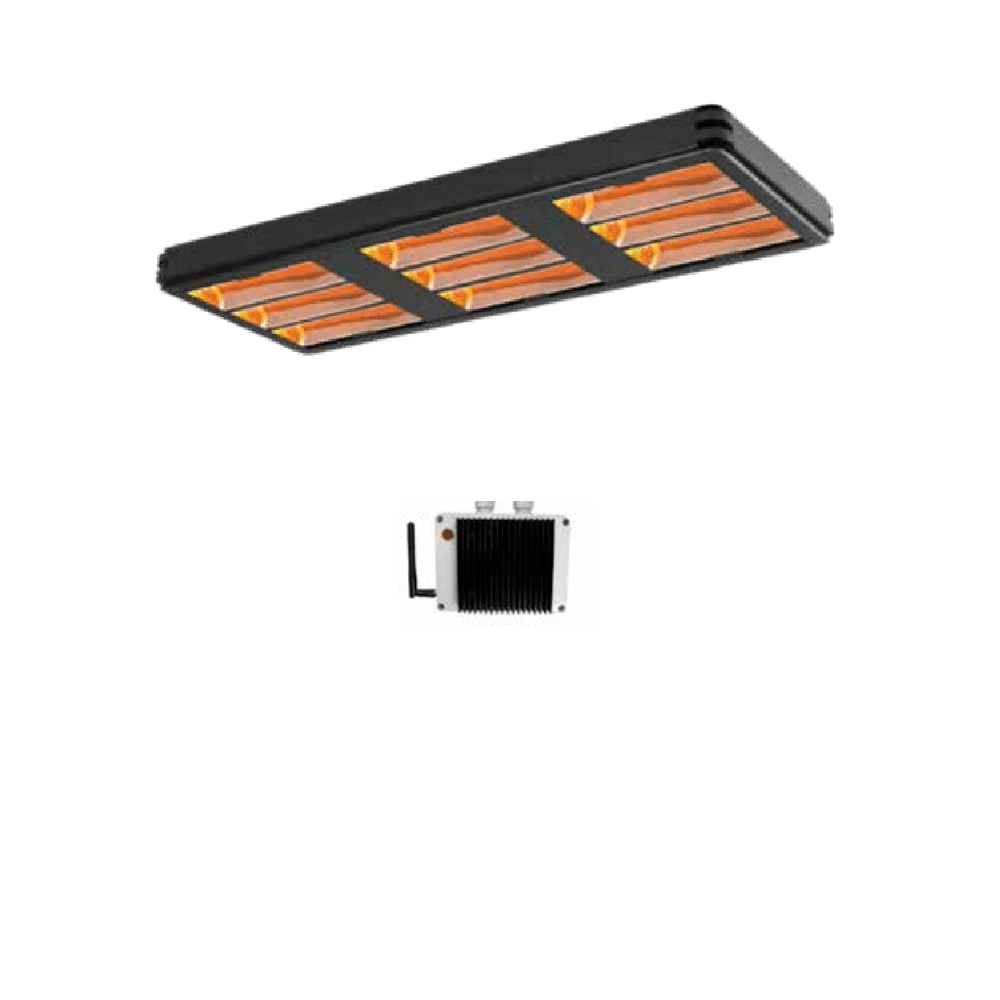

1 × Powrmatic SQ180H9 Electric Quartz Horizontal Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (9 × 2kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

Ultra High Output Quartz Infrared Heater for Large Industrial Buildings

The Powrmatic SQ180H9 Electric Quartz Infrared Heater is the largest and most powerful unit in the Powrmatic SQ electric infrared heater range. Designed for very large industrial and commercial environments, the heater uses high-intensity shortwave quartz infrared technology to deliver instant radiant heat directly to people, machinery and working surfaces rather than heating the surrounding air volume.

Infrared heating is particularly effective in buildings such as warehouses, factories and distribution centres where conventional warm-air heating systems often struggle due to high ceilings, open doors and large air volumes. By directing heat precisely into the occupied work zones, infrared heaters provide immediate comfort while reducing wasted energy.

The SQ range has been developed specifically for zonal heating applications. Instead of heating the entire building volume, these heaters focus warmth exactly where workers are located, improving comfort while reducing energy consumption. The SQ range is designed for large spaces such as factories and warehouses and can achieve significant energy savings compared with traditional heating systems.

The SQ180H9 model produces 18kW of radiant heating output using nine high-intensity quartz heating lamps. The horizontal heater configuration produces a long linear heating pattern that is ideal for heating warehouse aisles, production lines and large industrial workspaces where heat needs to follow the working area.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 18kW / 61,000Btu
• High-capacity heater designed for very large industrial spaces
• Instant heat output with no warm-up delay
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for demanding industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large buildings

Technical Specifications:

Model: SQ180H9

Product Type: Electric Quartz Infrared Heater

Heat Output:
18kW / 61,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
9 × 2kW quartz infrared lamps

Coverage Area:
Approximately 85 m²

Mounting Type:
Horizontal wall mounted or suspended installation

Weight (without guard):
Approx. 16 kg

Minimum Mounting Height:
Approx. 6 m installation height recommended

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
