This Kit Includes:

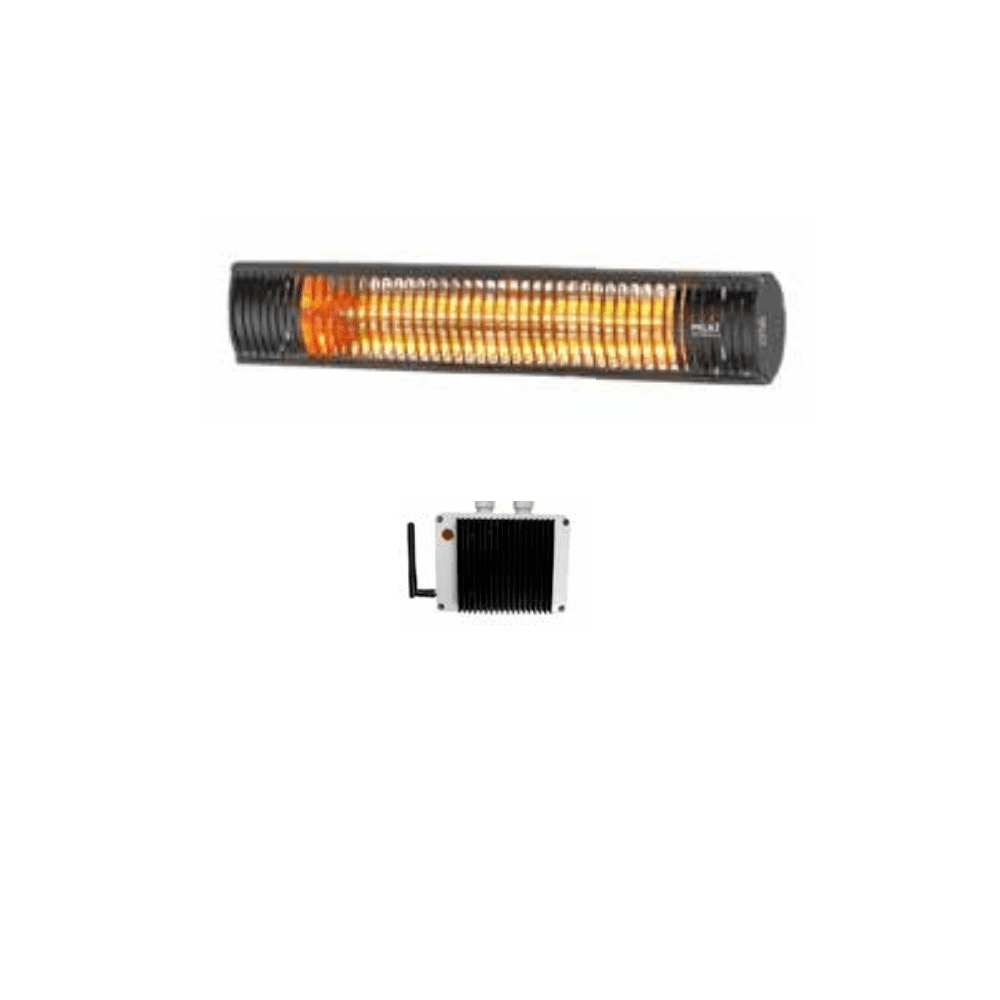

1 × Powrmatic SQ15H1 Electric Quartz Horizontal Industrial Infrared Heater

1 × Integrated quartz infrared heating lamp (1 × 1.5kW)

1 × Adjustable wall or suspension mounting bracket system

1 × Integrated protective guard and heater housing

1 × Factory pre-wired electrical connection terminal

1 x SQ30RVC 3kW Remote Variable Heater Controller

Compact Electric Infrared Heater for Targeted Industrial Spot Heating

The Powrmatic SQ15H1 Electric Quartz Infrared Heater is a compact industrial heating solution designed to provide rapid, targeted warmth in commercial and industrial environments. Using high-intensity quartz shortwave infrared technology, the heater delivers instant radiant heat directly to people, machinery and working areas without needing to warm the surrounding air.

This heating method is particularly effective in environments such as warehouses, loading bays, workshops and production areas where conventional warm-air systems lose efficiency due to high ceilings, large air volumes or frequent door openings. Radiant infrared heating warms surfaces and occupants directly, creating comfortable working conditions with minimal wasted energy.

The SQ range has been developed by Powrmatic in partnership with Shadow Industrial Infrared as part of a modern electric heating solution aimed at improving energy efficiency and supporting building decarbonisation strategies. The system provides instant heat output and can achieve significant energy savings by heating occupied zones rather than entire building spaces.

The SQ15H1 model is a horizontal-mounted heater delivering 1.5kW of output from a single quartz heating lamp. Its slim, robust design allows installation on walls or suspended from ceilings above workstations or localised areas where focused heating is required.

Key Product Features:

• Electric quartz shortwave infrared heating technology
• Heat output: 1.5kW / 8,000Btu
• Single phase electrical supply
• Horizontal industrial infrared heater design
• Instant heat output with no warm-up time
• Heats people and surfaces directly rather than air
• IP65 rated for industrial environments
• Hanging or wall mounted installation options
• Ultra-low glare quartz lamp technology
• Compatible with remote heater control systems

Technical Specifications:

Model: SQ15H1

Product Type: Electric Quartz Infrared Heater

Heat Output:
1.5kW / 8,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
220-240V~50Hz 1Ph

Current:
13 Amp

Heating Element:
1 × 1.5kW quartz infrared lamp

Ingress Protection:
IP65

Mounting Type:
Horizontal wall mounted or suspended installation

Dimensions (H × W × L):
110 × 255 × 1796 mm

Lamp Length:
530 mm

Minimum Mounting Height:
1.8 m

Minimum Distance from Ceiling:
0.5 m

Weight (without guard):
12.5 kg

Applications:

• Warehouses and distribution centres
• Workshops and garages
• Factory production lines
• Industrial workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail and commercial spaces

Accessories:
