This Kit Includes:

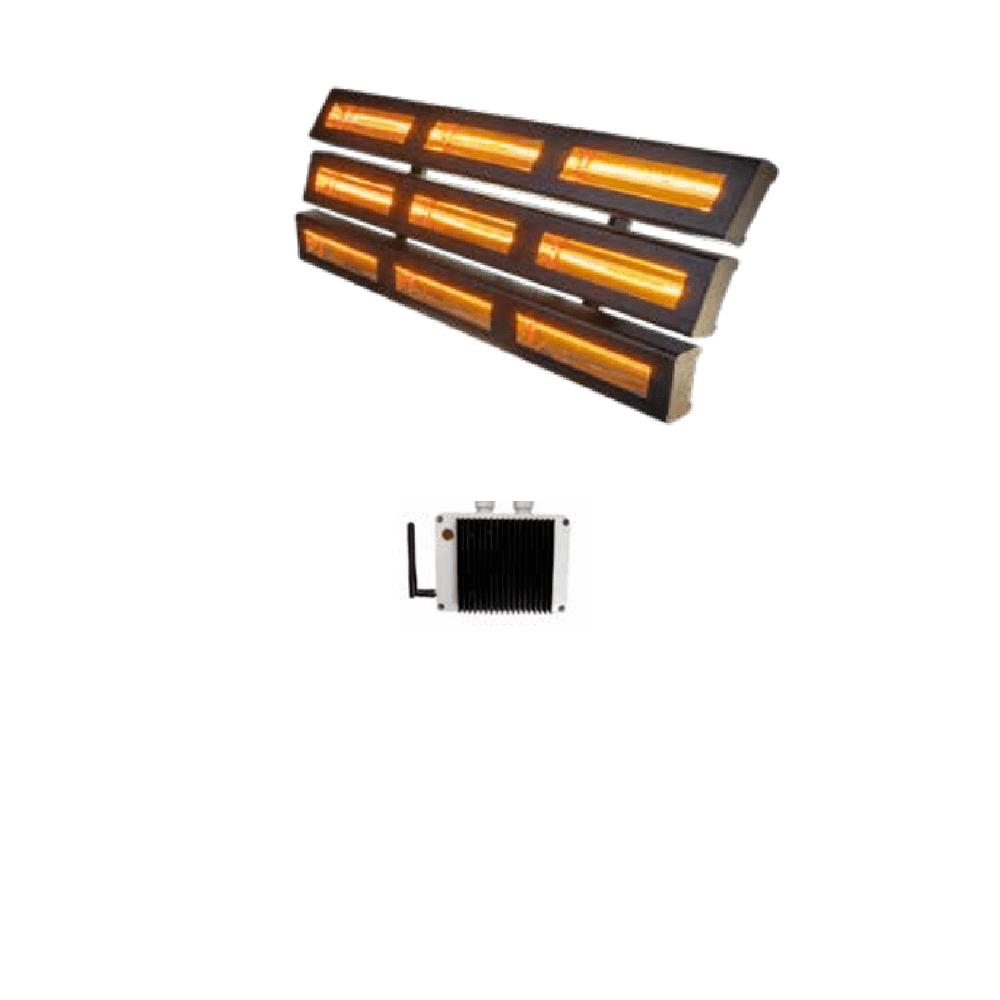

1 × Powrmatic SQ135H9/INF Electric Quartz Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (9 × 1.5kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

Infinity Series High-Capacity Quartz Infrared Heater

The Powrmatic SQ135H9/INF Electric Quartz Infrared Heater is part of the Infinity modular industrial infrared heating system designed for large commercial and industrial environments. Using shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and working surfaces directly rather than heating the surrounding air volume.

Infrared heating is particularly effective in buildings such as warehouses, factories and distribution centres where conventional warm-air heating systems often struggle due to high ceilings, large air volumes and frequently opened doors. By directing heat precisely into occupied work zones, infrared heaters provide immediate comfort while significantly reducing wasted energy.

The Powrmatic SQ infrared heater range is specifically designed for zonal heating applications, meaning heat is delivered directly to occupied working areas rather than attempting to warm the entire building volume. This targeted approach helps reduce energy consumption and improves heating efficiency in large industrial spaces.

The Infinity heater design allows multiple heaters to be installed in modular arrays to create larger heating systems for extensive buildings. This makes the system ideal for production lines, warehouse aisles and large open industrial areas where uniform radiant heat coverage is required.

The SQ135H9/INF model delivers 13.5kW of radiant heating output using nine high-intensity quartz heating lamps and is designed for demanding industrial environments requiring powerful and efficient radiant heating.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 13.5kW / 46,000Btu
• Instant heat output with no warm-up delay
• Infinity modular heater system for linked installations
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large industrial buildings

Technical Specifications:

Model: SQ135H9/INF

Product Type: Electric Quartz Infrared Heater

Heat Output:
13.5kW / 46,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
9 × 1.5kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Typical Mounting Height:
Approx. 5–6 m depending on application

Coverage Area:
Approx. 70–75 m²

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
