This Kit Includes:

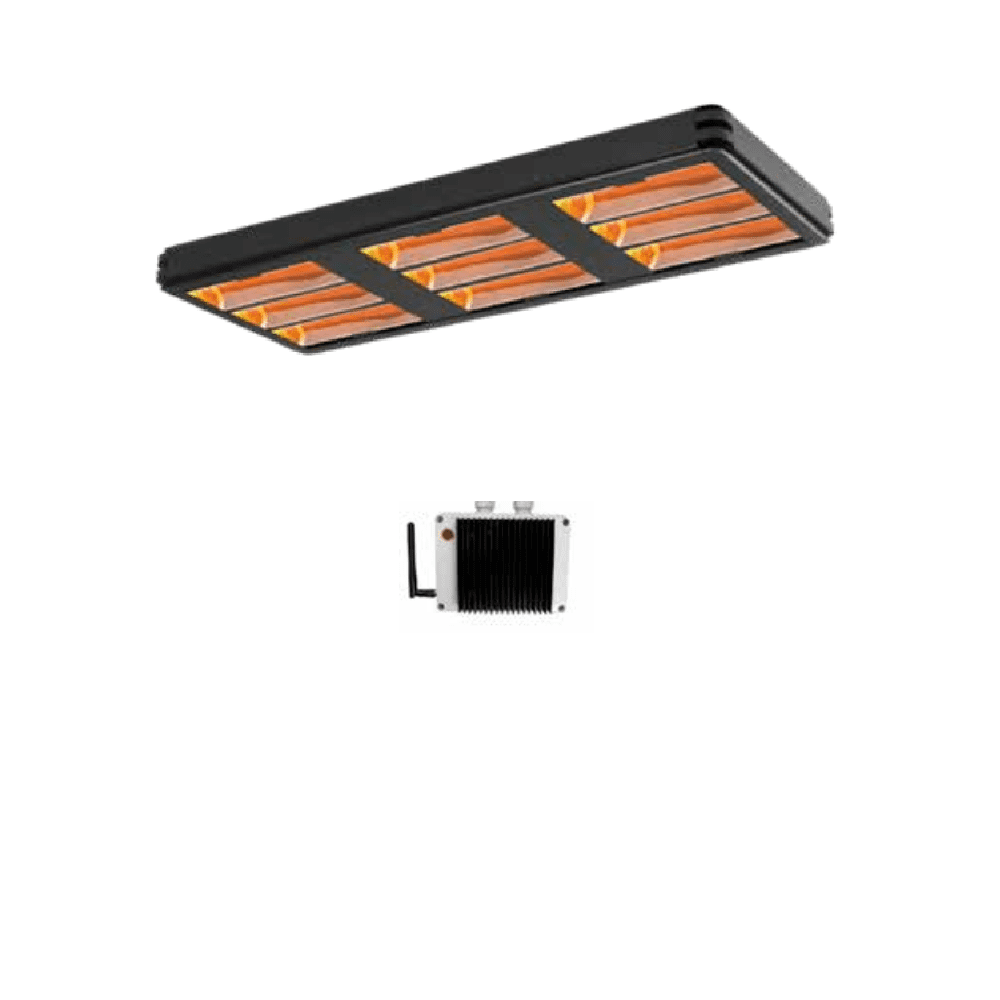

1 × Powrmatic SQ135H9 Electric Quartz Horizontal Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (9 × 1.5kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

High Capacity Quartz Infrared Heater for Large Industrial Areas

The Powrmatic SQ135H9 Electric Quartz Infrared Heater is a powerful industrial radiant heating solution designed for very large commercial and industrial environments. Using shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and working surfaces directly rather than heating the surrounding air volume.

Infrared heating is particularly effective in large buildings such as warehouses, factories and logistics facilities where conventional warm-air heating systems can lose efficiency due to high ceilings, open doors or large air volumes. By directing heat precisely into occupied work zones, infrared heaters provide immediate comfort while reducing wasted energy.

The Powrmatic SQ range has been designed for zonal heating applications, meaning heat is delivered directly to the working areas rather than attempting to warm the entire building space. This targeted approach significantly improves heating efficiency and helps reduce energy consumption in large buildings. The SQ electric infrared heater range can provide instant warmth and is designed specifically for large spaces such as factories and warehouses.

The SQ135H9 model delivers 13.5kW of radiant heating output using nine high-intensity quartz heating lamps. The horizontal heater configuration provides a long linear heating pattern that is ideal for warehouse aisles, production lines and large industrial workspaces where heat needs to follow the working area.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 13.5kW / 46,000Btu
• High-capacity heater designed for large industrial spaces
• Instant heat output with no warm-up delay
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for demanding industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large buildings

Technical Specifications:

Model: SQ135H9

Product Type: Electric Quartz Infrared Heater

Heat Output:
13.5kW / 46,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
9 × 1.5kW quartz infrared lamps

Coverage Area:
Approximately 70–75 m² (depending on mounting height)

Mounting Type:
Horizontal wall mounted or suspended installation

Weight (without guard):
Approx. 38 kg

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
