This Kit Includes:

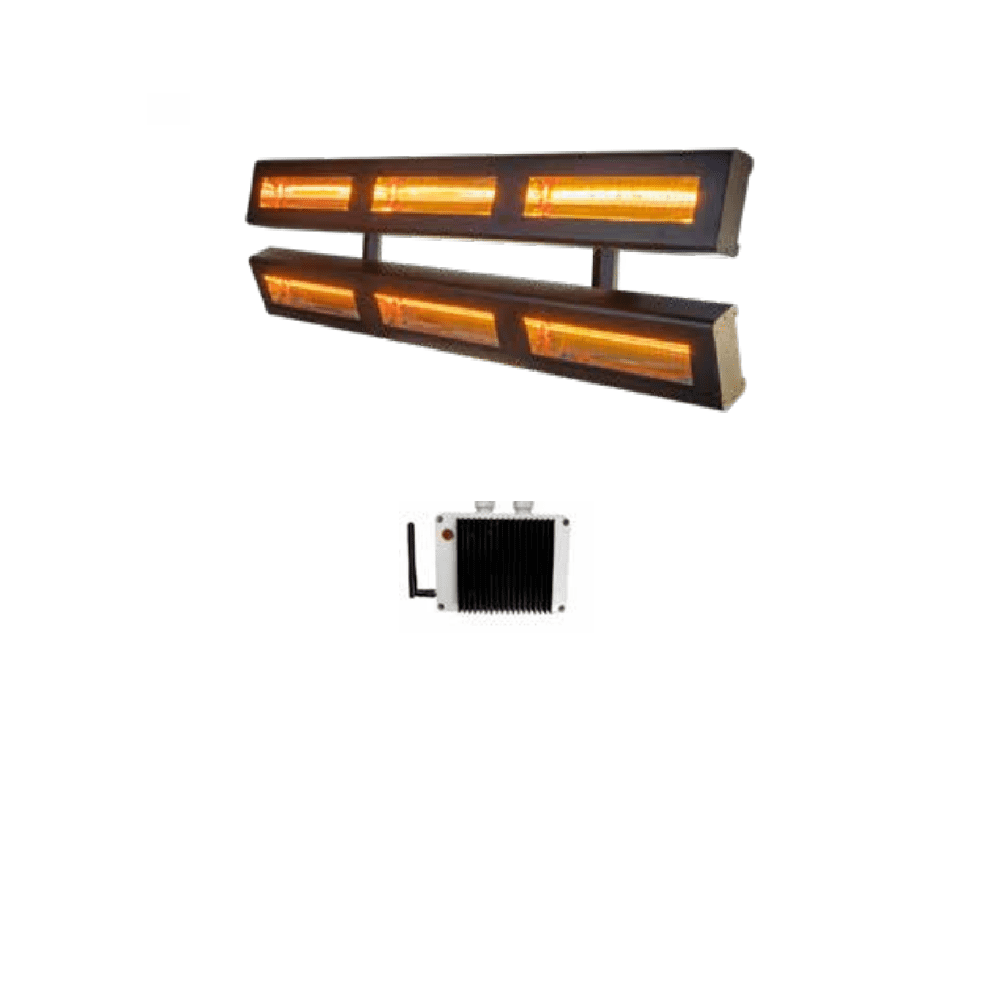

1 × Powrmatic SQ120H6/INF Electric Quartz Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (6 × 2kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

Infinity Series Modular Quartz Infrared Heater for Industrial Buildings

The Powrmatic SQ120H6/INF Electric Quartz Infrared Heater is part of the Infinity modular industrial infrared heating system designed for large commercial and industrial environments. Using high-intensity shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and surfaces directly rather than heating the surrounding air.

Infrared heating is particularly effective in buildings such as warehouses, factories and distribution centres where conventional warm-air heating systems often struggle due to high ceilings, large air volumes and frequently opened doors. By directing heat into occupied work zones, infrared heaters provide immediate comfort while significantly reducing wasted energy.

The Powrmatic SQ electric infrared heater range has been engineered specifically for zonal heating applications. Instead of heating the entire building volume, these heaters deliver heat directly to the working areas, helping to improve efficiency and reduce energy consumption in large industrial spaces.

The Infinity heater design allows multiple heaters to be connected together to create modular heating arrays. This makes the system ideal for warehouse aisles, manufacturing lines and large open industrial environments where consistent heating across long areas is required.

The SQ120H6/INF model delivers 12kW of radiant heating output using high-intensity quartz heating lamps and is designed for large industrial work zones where powerful and efficient radiant heat is required.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 12kW / 42,000Btu
• Instant heat output with no warm-up delay
• Infinity modular system design for linked heater installations
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for demanding industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large industrial buildings

Technical Specifications:

Model: SQ120H6/INF

Product Type: Electric Quartz Infrared Heater

Heat Output:
12kW / 42,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
6 × 2kW quartz infrared lamps

Mounting Type:
Horizontal wall mounted or suspended installation

Typical Mounting Height:
Approx. 4–6 m depending on application

Coverage Area:
Approx. 60–65 m²

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
