This Kit Includes:

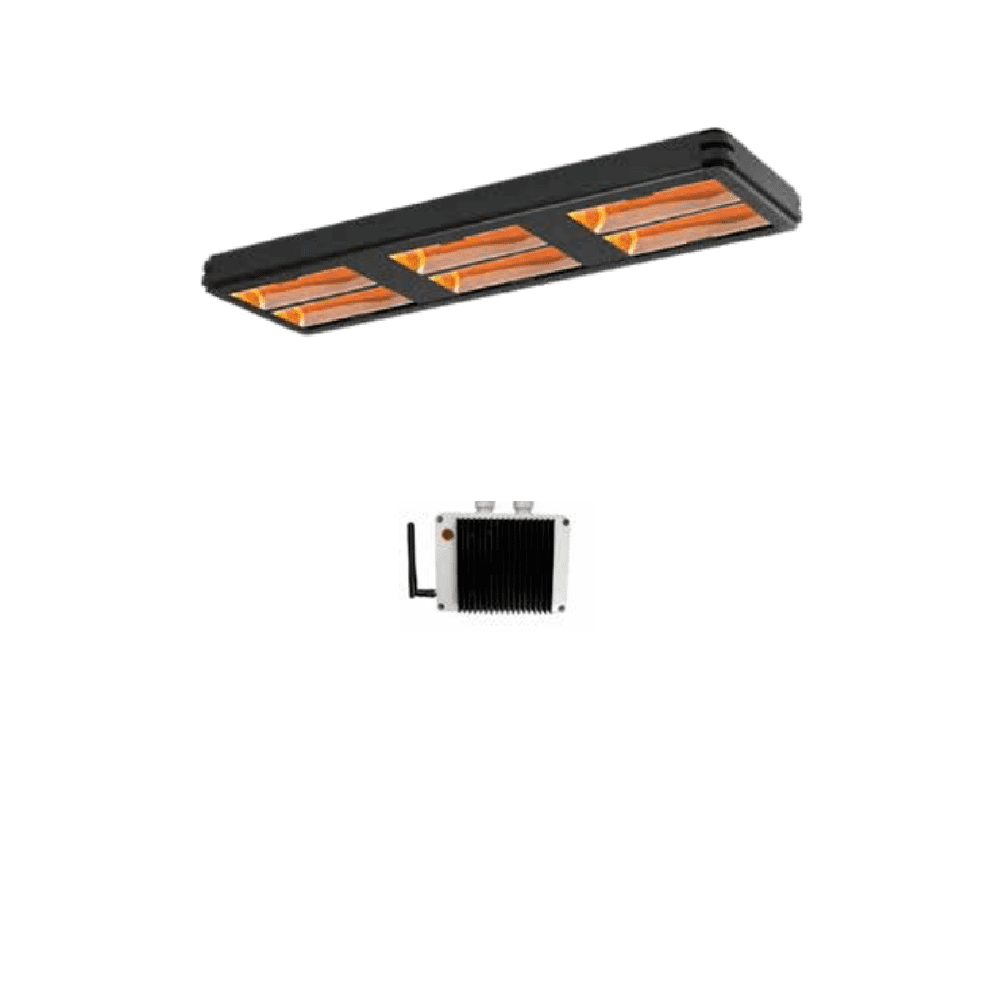

1 × Powrmatic SQ120H6 Electric Quartz Horizontal Industrial Infrared Heater
1 × Quartz infrared heating lamp assembly (8 × 1.5kW)
1 × Heavy-duty mounting bracket assembly
1 × Protective heater guard and aluminium reflector housing
1 × Factory-wired three-phase electrical connection terminal
1 × SQ90RVC 9kW Remote Variable Heater Controller

High Output Industrial Quartz Infrared Heater for Large Work Zones

The Powrmatic SQ120H6 Electric Quartz Infrared Heater is a high-capacity radiant heating solution designed for large industrial and commercial environments. Using shortwave quartz infrared technology, the heater produces instant radiant heat that warms people, machinery and surfaces directly rather than heating the surrounding air volume.

Infrared heating is particularly effective in large spaces such as warehouses, factories and distribution centres where conventional warm-air heating systems can struggle due to high ceilings, open doors and large air volumes. By directing heat precisely into occupied zones, infrared heaters provide immediate comfort while significantly reducing wasted energy.

The SQ heater range has been engineered specifically for zonal heating applications, allowing heat to be delivered only where it is needed rather than heating the entire building. This targeted heating approach can significantly improve energy efficiency and reduce running costs in large buildings. The SQ heater range provides instant radiant warmth and can significantly reduce energy consumption compared with traditional warm-air heating systems.

The SQ120H6 model delivers 12kW of radiant heating output using eight high-intensity quartz heating lamps. The horizontal heater configuration provides a linear heat pattern that is ideal for heating warehouse aisles, production lines and large industrial workspaces where heat needs to follow the working area.

Key Product Features:

• Electric quartz shortwave infrared radiant heating technology
• Heat output: 12kW / 42,000Btu
• High-capacity heater for large industrial spaces
• Instant heat output with no warm-up delay
• Direct radiant heat to people and working surfaces
• Heavy-duty aluminium reflector housing with protective guard
• Wall mounted or suspended installation options
• IP65 rated construction for demanding industrial environments
• Compatible with SQ90RVC remote heater controller
• Energy-efficient zonal heating solution for large buildings

Technical Specifications:

Model: SQ120H6

Product Type: Electric Quartz Infrared Heater

Heat Output:
12kW / 42,000Btu

Heating Technology:
Quartz shortwave infrared radiant heating

Electrical Supply:
380-415V~50Hz 3Ph

Heating Elements:
8 × 1.5kW quartz infrared lamps

Coverage Area:
Approximately 64 m²

Mounting Type:
Horizontal wall mounted or suspended installation

Weight (without guard):
Approx. 32 kg

Applications:

• Warehouses and distribution centres
• Industrial workshops
• Production line workstations
• Loading bays and dispatch areas
• Agricultural buildings
• Retail warehouses

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
