This Kit Includes:

1 × Powrmatic SRP PVU50 Vacuum Radiant U-Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan assembly
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3

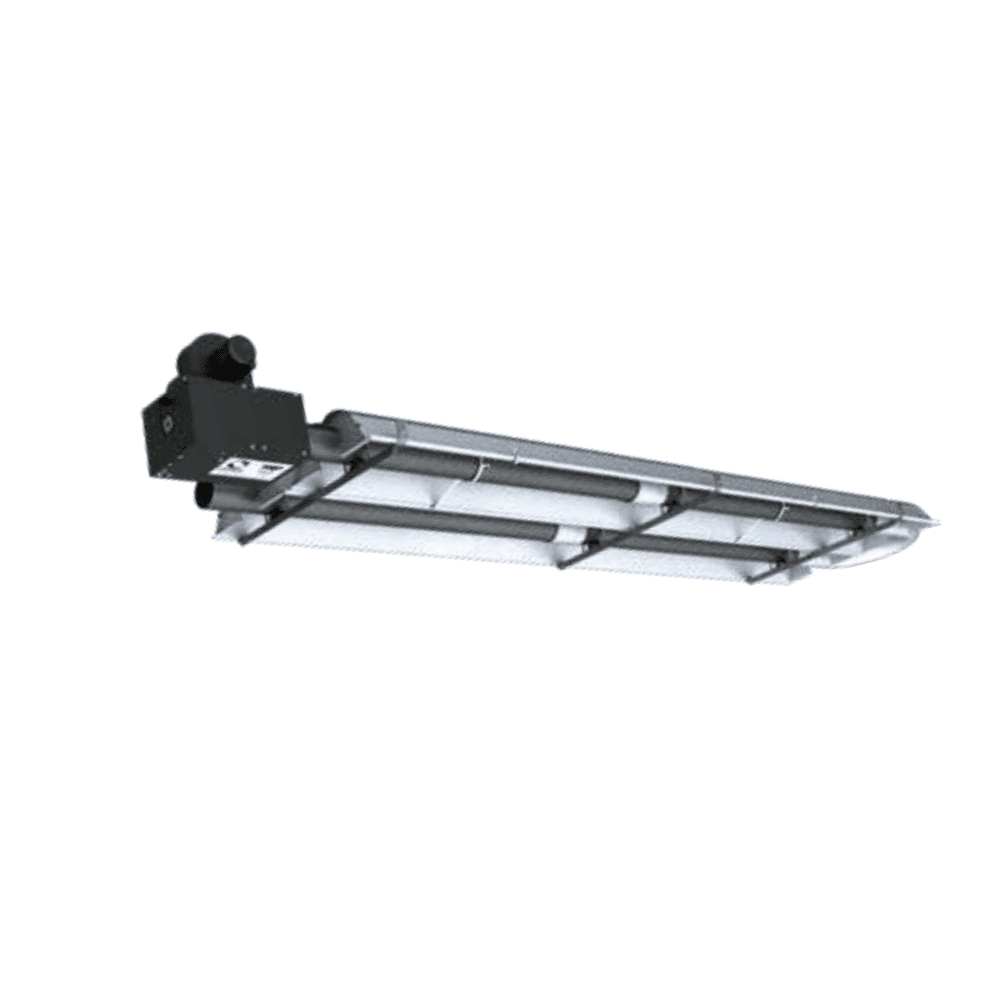

High Capacity Vacuum U-Tube Radiant Heater for Large Industrial Warehouses

The Powrmatic SRP PVU50 is a high-capacity vacuum radiant U-tube heater designed to deliver powerful infrared heating performance across warehouses, factories and large commercial buildings. With a heat input of 50 kW, the PVU50 provides strong radiant heat coverage for large open industrial spaces where conventional warm-air heating systems can struggle due to heat stratification and large building volumes.

Vacuum radiant heating technology works by drawing combustion gases through the emitter tube using an induced draft fan system. This creates a more consistent tube temperature along the radiant emitter, improving heat distribution and maintaining efficient combustion performance. Two-stage high and low burner operation allows rapid warm-up on high fire while providing energy-efficient steady operation on low fire once the desired temperature has been achieved.

Unlike traditional heating systems that warm the surrounding air, radiant tube heaters emit infrared heat energy directly to people, equipment and floor surfaces. This method greatly reduces heat losses caused by stratification in buildings with high ceilings, where warm air would normally rise towards the roof structure. By focusing heat in the occupied working area, radiant heating systems improve comfort while reducing energy consumption in large industrial environments.

The U-tube emitter configuration allows the PVU50 to deliver high heat output while maintaining a relatively compact installed length compared with longer linear radiant heaters. This makes it particularly suitable for warehouses, workshops and distribution centres where structural layout or ceiling space restricts the installation of longer radiant systems.

When paired with the MC200 optimised controller, the heater provides precise temperature management and efficient heating operation across demanding commercial heating installations.

Key Product Features:

• Vacuum radiant U-tube gas heater
• Heat input: 50 kW / 170,000 Btu
• Induced draft vacuum burner technology
• Two-stage high/low burner operation
• High-efficiency aluminium reflector system
• Compact U-tube radiant emitter configuration
• Uniform radiant heat distribution
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, factories and distribution centres
• Helps reduce heat stratification in high-ceiling environments

Technical Specifications:

Model: SRP PVU50
Product Type: Vacuum U-Tube Gas Radiant Heater

Heat Input (High Fire):
50 kW

Heat Input (Low Fire):
41 kW

Heating Capacity:
50 kW / 170,000 Btu

Fuel Type:
Natural Gas (G20) or LPG (G31) (LPG not available on some higher output models)

Heating Method:
Infrared Radiant Tube Heating

Electrical Supply:
220-240V~50Hz 1Ph

Burner Type:
Gas burner with induced draft vacuum fan

Emitter Tube Configuration:
U-Tube Radiant Emitter

Flue Diameter:
100 mm

Installation Type:
Suspended ceiling mounting

Applications:

• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities

Compatible Accessories:
