This Kit Includes:
1 × Powrmatic SRP PVU30 Vacuum Radiant U-Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan assembly
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3

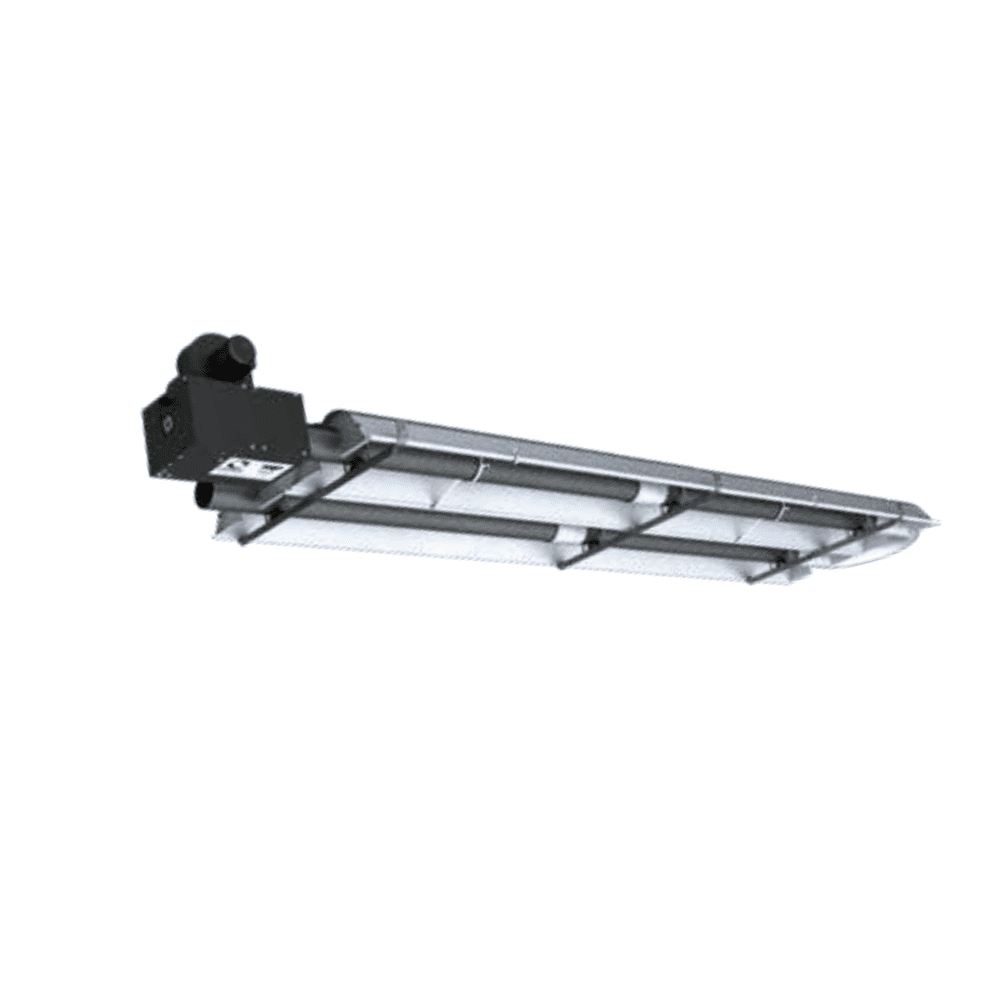

High Output Vacuum U-Tube Radiant Heater for Industrial Warehouse Heating
The Powrmatic SRP PVU30 is a high-performance vacuum radiant U-tube heater designed to provide efficient infrared heating across warehouses, factories and large industrial workspaces. Delivering a heat input of 30 kW, the PVU30 provides powerful radiant heat coverage while maintaining a compact installation footprint compared with longer linear radiant tube systems.
Vacuum radiant heating technology draws combustion gases through the radiant emitter tube using an induced draft fan system. This ensures a consistent temperature along the emitter tube and improves radiant heat distribution while maintaining stable combustion performance. Two-stage high/low burner operation allows rapid warm-up when required and efficient steady-state heating during normal operation.
Infrared radiant heating works by warming people, machinery and floor surfaces directly rather than heating the surrounding air. This makes radiant heaters particularly effective in buildings with high ceilings where warm air would otherwise rise and accumulate near the roof. By concentrating heat in the occupied working area, radiant heating systems improve comfort while reducing energy loss caused by stratification.
The U-tube emitter configuration allows strong radiant heat output while keeping the overall installed length compact. This makes the PVU30 particularly suitable for warehouses, workshops and industrial buildings where ceiling space or structural layout limits the installation of longer linear radiant heaters.
When paired with the MC200 optimised controller, the heater delivers precise temperature control and efficient energy management across demanding industrial heating installations.
Key Product Features:
• Vacuum radiant U-tube gas heater
• Heat input: 30 kW / 102,000 Btu
• Induced draft vacuum burner technology
• Two-stage high/low burner operation
• Compact U-tube radiant emitter configuration
• High-efficiency aluminium reflector system
• Uniform radiant heat distribution
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, factories and distribution centres
• Reduces heat stratification in high-ceiling environments
Technical Specifications:
Model: SRP PVU30
Product Type: Vacuum U-Tube Gas Radiant Heater
Heat Input (High Fire):
30 kW
Heat Input (Low Fire):
23 kW
Heating Capacity:
30 kW / 102,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Emitter Tube Configuration:
U-Tube Radiant Emitter
Flue Diameter:
100 mm
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities
Compatible Accessories:
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PVL20LS and PVL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PVL20LS |
22 kW |
Longer radiant tube system |
~8 m |
| PVL20 |
22 kW |
Standard length radiant tube system |
~9.85 m |
