This Kit Includes:
1 × Powrmatic SRP PVU20US Vacuum Radiant U-Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan assembly
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3

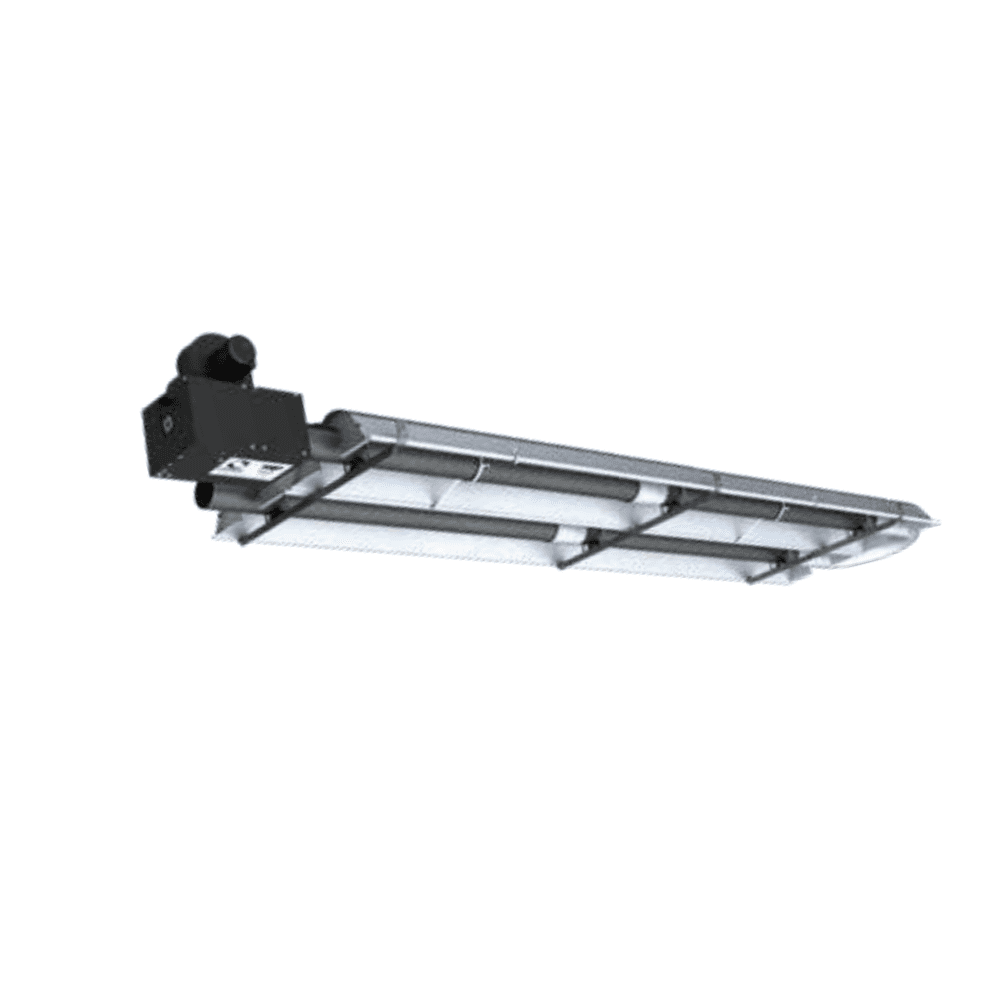

Compact Vacuum U-Tube Radiant Heater for Industrial Warehouse Heating
The Powrmatic SRP PVU20US is a compact vacuum radiant U-tube heater designed to provide efficient infrared heating in warehouses, factories and industrial workspaces. Delivering a heat input of 22 kW, the PVU20US provides dependable radiant heat coverage while maintaining a compact installation footprint, making it ideal for applications where space limitations restrict longer linear radiant systems.
Vacuum radiant heating technology works by drawing combustion gases through the radiant emitter tube using an induced draft fan. This system maintains a more uniform tube temperature along the emitter length, improving radiant heat distribution and overall system efficiency compared with traditional forced-burner radiant heaters.
Infrared radiant heating operates by warming people, machinery and floor surfaces directly rather than heating the surrounding air volume. This approach significantly reduces heat losses caused by stratification in buildings with high ceilings, where warm air naturally rises towards the roof space. By directing heat into the occupied working zone, radiant heaters deliver improved comfort and energy efficiency in large industrial environments.
The U-tube configuration provides strong radiant performance while requiring a shorter installed length than linear radiant heaters. This makes the PVU20US particularly well suited for workshops, warehouse zones and industrial buildings where compact installation is preferred while still delivering reliable overhead radiant heat.
Supplied with the MC200 optimised controller, the heater allows precise temperature management and energy-efficient operation across demanding commercial heating installations. Two-stage high/low burner operation enables rapid warm-up with efficient steady-state heating during normal operation.
Key Product Features:
• Vacuum radiant U-tube gas heater
• Heat input: 22 kW / 75,000 Btu
• Induced draft vacuum burner technology
• Two-stage high/low burner operation
• Compact U-tube emitter configuration
• High-efficiency aluminium reflector system
• Uniform radiant heat distribution
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, workshops and factories
• Reduces heat stratification in high-ceiling environments
Technical Specifications:
Model: SRP PVU20US
Product Type: Vacuum U-Tube Gas Radiant Heater
Heat Input (High Fire):
22 kW
Heat Input (Low Fire):
17.5 kW
Heating Capacity:
22 kW / 75,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Emitter Tube Configuration:
U-Tube Radiant Emitter
Flue Diameter:
100 mm
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities
Compatible Accessories:
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PVL20LS and PVL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PVL20LS |
22 kW |
Longer radiant tube system |
~8 m |
| PVL20 |
22 kW |
Standard length radiant tube system |
~9.85 m |
