This Kit Includes:

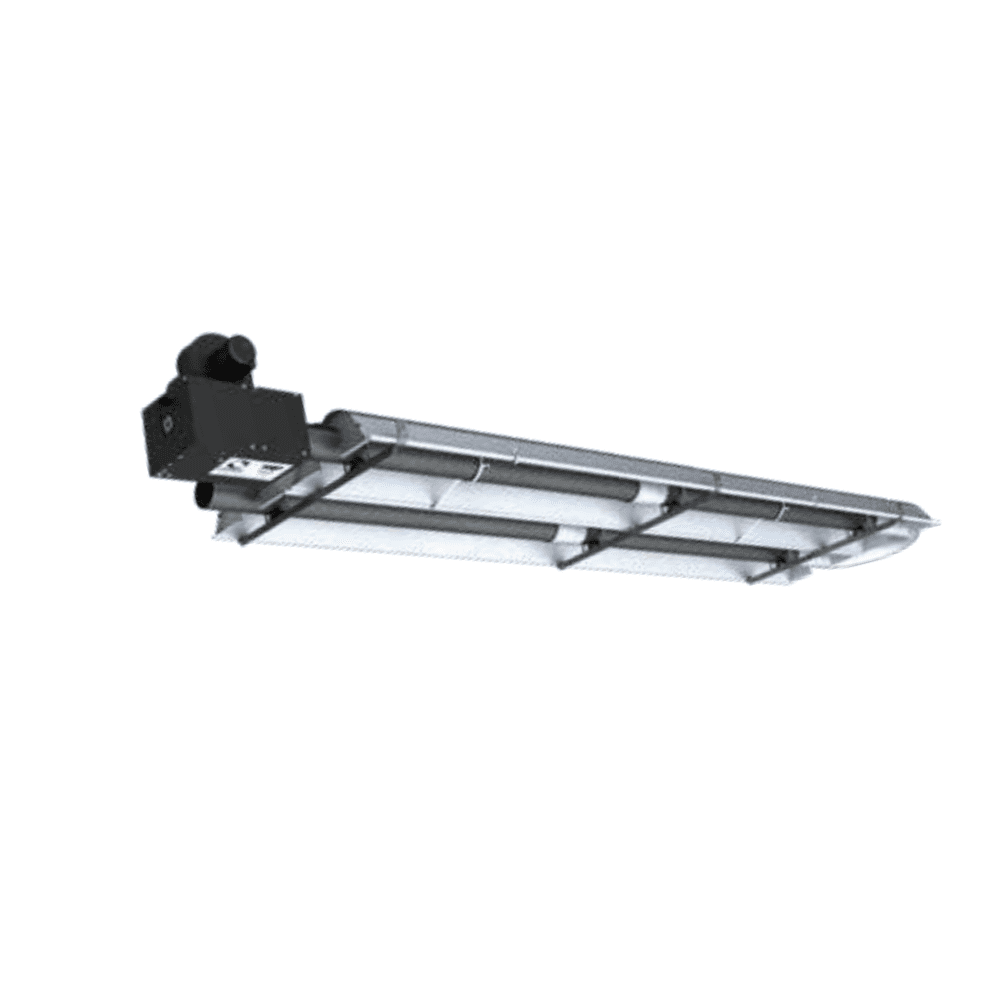

1 × Powrmatic SRP PVU20 Vacuum Radiant U-Tube Heater
1 × High-efficiency aluminised steel U-tube radiant emitter assembly
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan assembly
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3
Vacuum U-Tube Radiant Heating System for Efficient Industrial Warehouse Heating
The Powrmatic SRP PVU20 is a vacuum radiant U-tube heater designed to provide efficient infrared heating for warehouses, factories and industrial workspaces. With a heat input of 22 kW, the PVU20 delivers reliable radiant heating performance while maintaining a compact installation footprint suited to many commercial and industrial buildings.
Vacuum radiant heating technology operates by drawing combustion gases through the radiant emitter tube using an induced draft fan system. This method produces a more uniform temperature across the radiant tube, improving heat distribution and maintaining efficient combustion performance. Compared with conventional warm-air heating systems, radiant heating delivers energy directly to people, machinery and floor surfaces rather than heating the surrounding air volume.
This approach significantly reduces heat loss caused by stratification in buildings with high ceilings where warm air naturally rises towards the roof. By focusing heat into the occupied working zone, radiant tube heaters provide improved comfort and energy efficiency in large industrial environments.
The PVU20 U-tube configuration allows powerful radiant heating performance within a shorter installed length than linear radiant systems. This makes the heater particularly suitable for warehouses, workshops and industrial buildings where ceiling space is limited but reliable radiant heat coverage is required.
When combined with the MC200 optimised controller, the heater offers accurate temperature control and efficient heating operation across demanding commercial heating installations.
Key Product Features:
• Vacuum radiant U-tube gas heater
• Heat input: 22 kW / 75,000 Btu
• Induced draft vacuum burner technology
• Uniform radiant tube temperature for improved heat distribution
• High-efficiency aluminium reflector system
• Two-stage burner operation for energy efficiency
• Compact U-tube emitter configuration
• Suitable for Natural Gas operation (G20)
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, workshops and factories
• Reduces heat stratification in high-ceiling environments
Technical Specifications:
Model: SRP PVU20
Product Type: Vacuum U-Tube Gas Radiant Heater
Heat Input (High Fire):
22 kW
Heat Input (Low Fire):
17.5 kW
Heating Capacity:
22 kW / 75,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Emitter Tube Configuration:
U-Tube Radiant Emitter
Flue Diameter:
100 mm
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities
Compatible Accessories:
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PVL20LS and PVL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PVL20LS |
22 kW |
Longer radiant tube system |
~8 m |
| PVL20 |
22 kW |
Standard length radiant tube system |
~9.85 m |
