This Kit Includes:

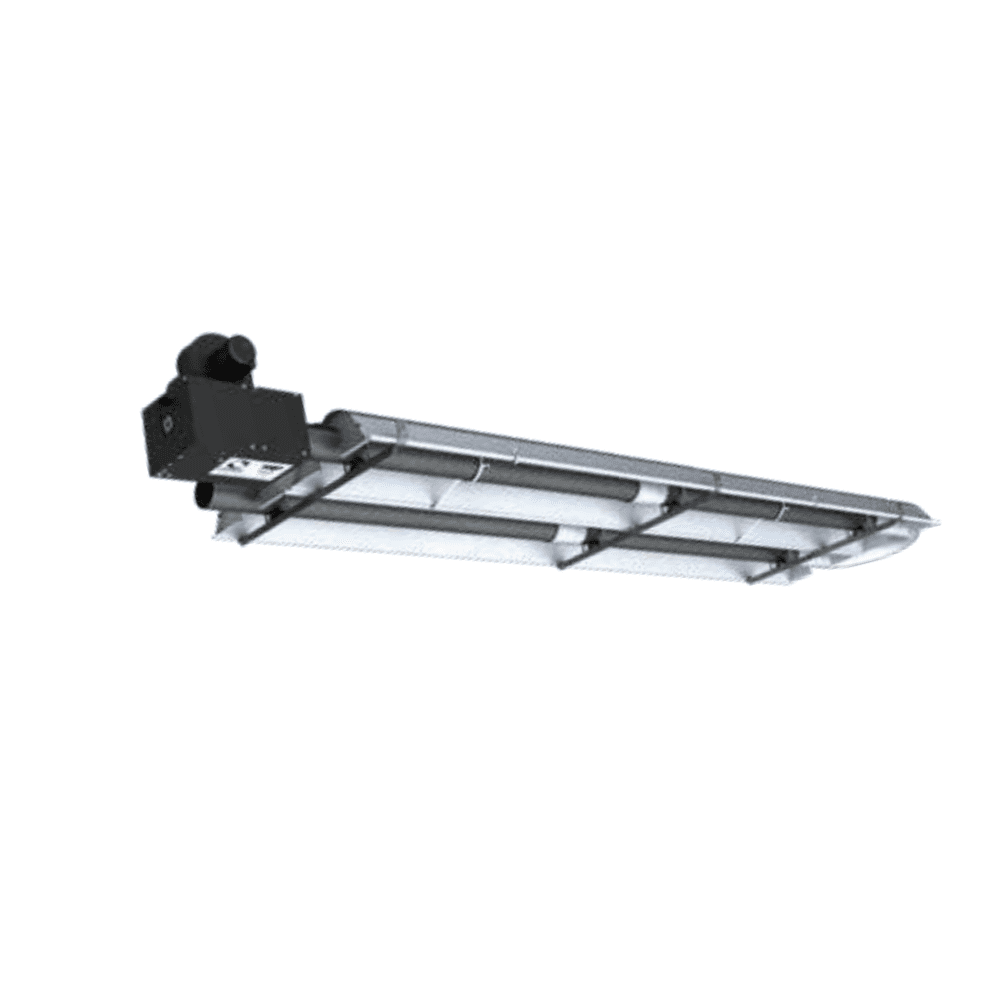

1 × Powrmatic SRP PVL50 Linear Vacuum Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan assembly
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3

High Capacity Linear Vacuum Radiant Heating System for Large Industrial Buildings

The Powrmatic SRP PVL50 is a high-capacity linear vacuum radiant tube heater engineered for efficient infrared heating across very large industrial environments including warehouses, logistics centres and manufacturing facilities. Delivering a heat input of 50 kW, this model provides powerful radiant heat coverage designed to maintain comfortable working conditions within large open buildings where traditional warm-air heating systems can struggle to perform efficiently.

Vacuum radiant heating technology works by drawing combustion gases through the radiant emitter tube using an induced draft fan system. This creates a more consistent tube temperature across the full emitter length, improving radiant heat output and maintaining stable combustion performance. The result is a highly efficient heating solution capable of delivering dependable heat distribution across wide industrial spaces.

Unlike conventional heating systems that warm the surrounding air volume, radiant tube heaters emit infrared heat energy that warms people, machinery and floor surfaces directly. This method significantly reduces heat losses caused by stratification in buildings with high ceilings, where warm air naturally rises towards the roof space. By concentrating heat in the occupied working zone, radiant heating systems improve comfort while reducing overall energy consumption.

The PVL50 model is ideally suited to large warehouses, production halls and logistics buildings where extended heating coverage is required. Its long linear radiant emitter design distributes heat effectively along warehouse aisles and large open floor areas. When combined with the MC200 optimised controller, the system provides precise temperature control and energy-efficient operation for demanding industrial heating applications.

Key Product Features:

• Linear vacuum gas radiant tube heater
• Heat input: 50 kW / 170,000 Btu
• Vacuum induced draft radiant heating technology
• Uniform radiant tube temperature for improved heat distribution
• High-efficiency aluminium reflector system
• Two-stage burner operation for energy efficiency
• Suitable for Natural Gas operation (G20)
• Long linear radiant emitter configuration for wide heating coverage
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, factories and distribution centres
• Reduces heat stratification in high-ceiling environments

Technical Specifications:

Model: SRP PVL50
Product Type: Linear Vacuum Gas Radiant Tube Heater

Heat Input (High Fire):
50 kW

Heat Input (Low Fire):
41 kW

Heating Capacity:
50 kW / 170,000 Btu

Fuel Type:
Natural Gas (G20) or LPG (G31)

Heating Method:
Infrared Radiant Tube Heating

Electrical Supply:
220-240V~50Hz 1Ph

Burner Type:
Gas burner with induced draft vacuum fan

Flue Diameter:
100 mm

Reflector Type:
High-efficiency aluminium radiant reflector

Installation Type:
Suspended ceiling mounting

Applications:

• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities

Compatible Accessories:
