This Kit Includes:

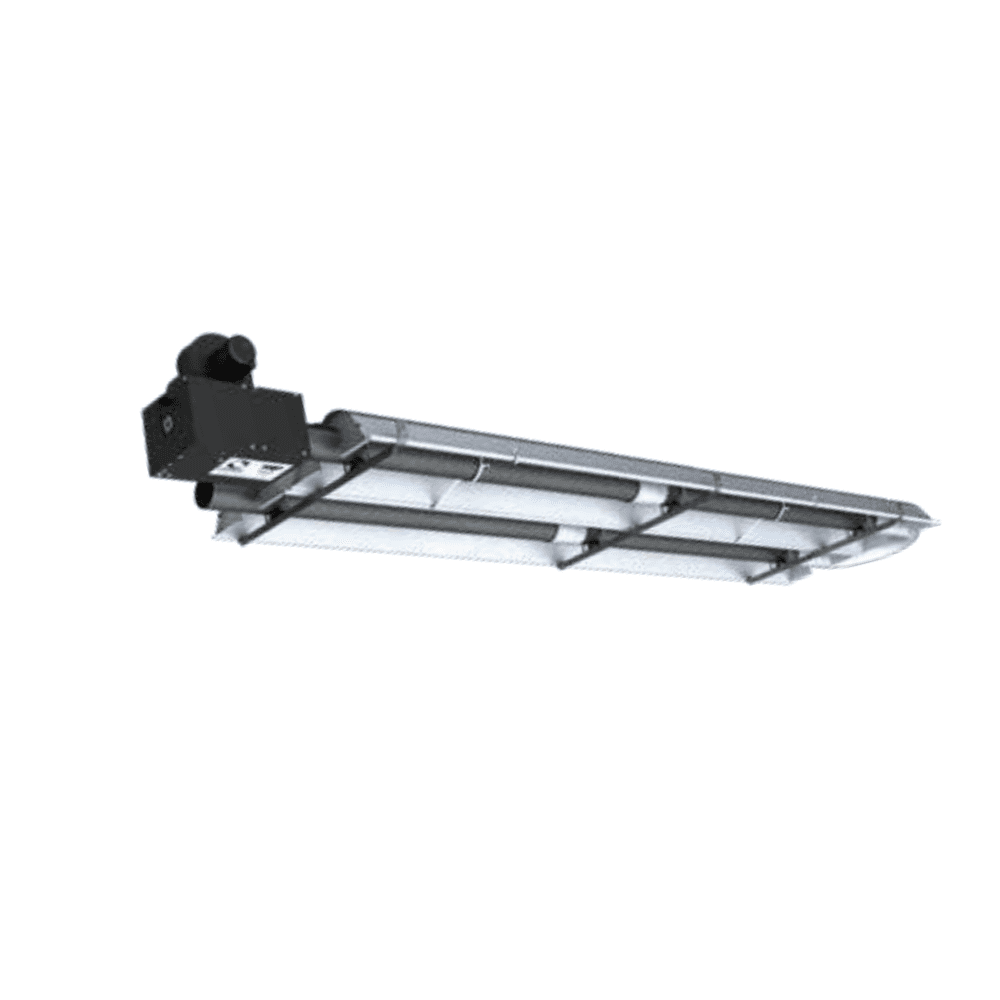

1 × Powrmatic SRP PVL40 Linear Vacuum Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly (19000 mm)
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3
High Output Linear Vacuum Radiant Heater for Large Industrial Buildings
The Powrmatic SRP PVL40 is a high-capacity linear vacuum radiant tube heater engineered to deliver powerful infrared heating across warehouses, factories and large industrial environments. With a heat input of 41 kW (approximately 136,000 Btu), this model is designed for buildings with higher ceilings and larger floor areas where conventional warm-air heating systems often suffer from heat stratification and inefficient heat distribution.
Using vacuum radiant burner technology, the system draws combustion gases through the radiant emitter tube via an induced draft fan. This method ensures a more consistent tube temperature along the full length of the emitter, providing improved radiant efficiency and stable combustion performance compared with traditional forced burner radiant heaters.
Radiant heating works by transferring infrared energy directly to people, equipment and floor surfaces rather than heating the surrounding air volume. This allows the PVL40 to provide effective warmth in environments where doors frequently open or where heat loss would otherwise occur through air movement.
With its extended 19 m emitter tube configuration, the PVL40 distributes radiant heat evenly across large working areas, making it ideal for warehouse aisles, manufacturing zones and logistics facilities. Combined with the MC200 optimised controller, the heater delivers precise temperature control and improved energy efficiency across demanding industrial heating applications.
Key Product Features:
• Linear vacuum gas radiant tube heater
• Heat input: 41 kW / 136,000 Btu
• Vacuum induced draft burner technology
• Two-stage high/low burner operation
• High-efficiency aluminium reflector system
• Extended 19,000 mm radiant emitter tube
• Uniform radiant heat distribution along the emitter
• Suitable for Natural Gas or LPG operation
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, factories and distribution centres
• Reduces heat stratification in high-ceiling environments
Technical Specifications:
Model: SRP PVL40
Product Type: Linear Vacuum Gas Radiant Tube Heater
Heat Input (High Fire):
41 kW
Heat Input (Low Fire):
32.5 kW
Heating Capacity:
41 kW / 136,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Flue Diameter:
100 mm
Emitter Tube Length:
19,000 mm
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities
Compatible Accessories:
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PVL20LS and PVL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PVL20LS |
22 kW |
Longer radiant tube system |
~8 m |
| PVL20 |
22 kW |
Standard length radiant tube system |
~9.85 m |
