This Kit Includes:
1 × Powrmatic SRP PVL30 Linear Vacuum Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly (12900 mm)
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3
High Output Linear Vacuum Radiant Heater for Industrial Warehouse Heating

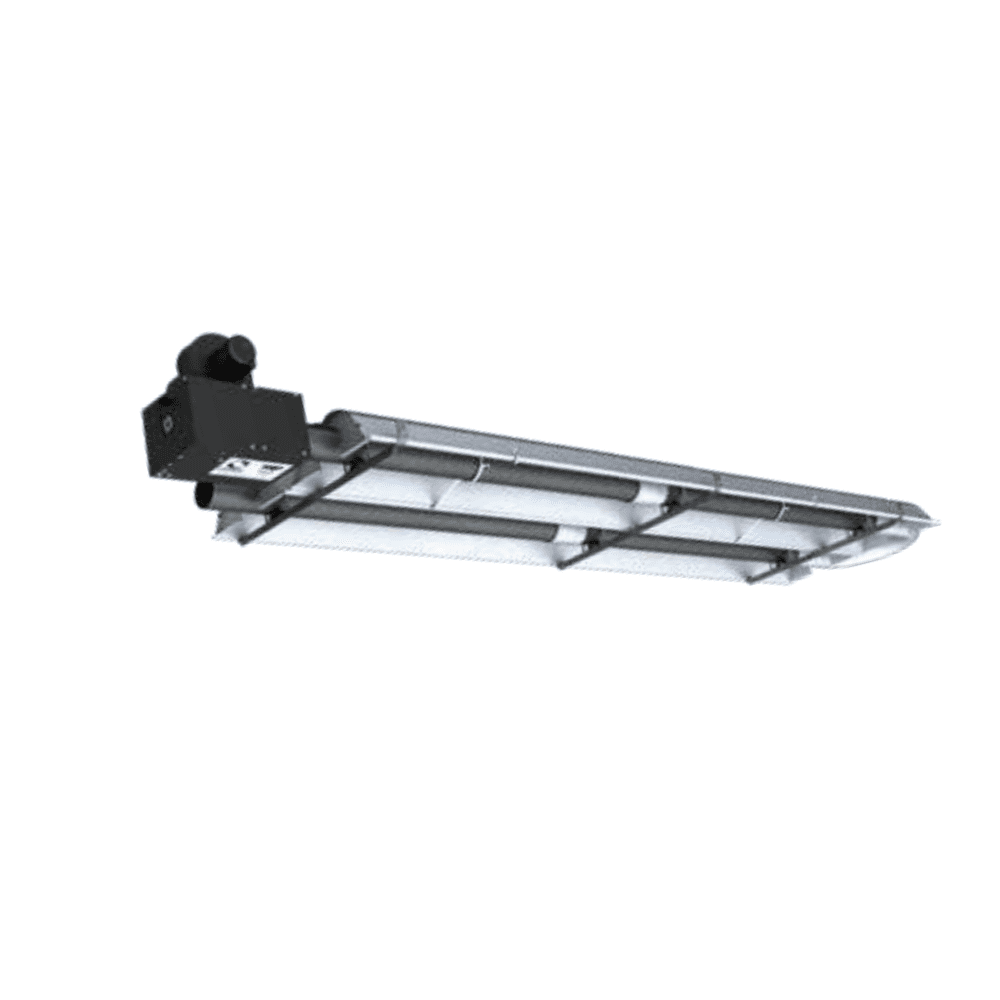

The Powrmatic SRP PVL30 is a high-performance linear vacuum radiant tube heater designed for efficient infrared heating in warehouses, factories and large commercial buildings. Delivering a heat input of 30 kW, this model provides powerful radiant warmth across industrial environments where conventional warm-air heating systems may struggle due to heat stratification or large building volumes.
Using vacuum radiant heating technology, the heater draws combustion gases through the emitter tube via an induced draft fan. This creates a more uniform tube temperature along the radiant emitter, improving radiant heat output and overall efficiency while providing stable combustion and reduced heat loss.
Infrared radiant heating works by warming people, equipment and floor surfaces directly rather than heating the surrounding air. This method makes radiant tube heaters particularly effective in buildings with high ceilings or frequent door openings, such as logistics facilities, loading bays and manufacturing plants.
With its extended 12.9 m emitter tube configuration, the PVL30 distributes radiant heat evenly across large working areas, making it ideal for warehouse aisles and industrial production zones. When paired with the MC200 optimised controller, the heater provides precise temperature management and improved energy efficiency across demanding commercial heating applications.
Key Product Features:
• Linear vacuum gas radiant tube heater
• Heat input: 30 kW / 102,000 Btu
• Vacuum induced draft burner technology
• Uniform radiant tube temperature for improved heat distribution
• High-efficiency aluminium reflector system
• Two-stage high/low burner operation
• Suitable for Natural Gas or LPG operation
• Extended 12,900 mm linear radiant emitter tube
• Supplied with MC200 optimised digital controller
• Designed for suspended ceiling installation
• Ideal for warehouses, factories and distribution centres
• Reduces heat stratification in high-ceiling buildings
Technical Specifications:
Model: SRP PVL30
Product Type: Linear Vacuum Gas Radiant Tube Heater
Heat Input (High Fire):
30 kW
Heat Input (Low Fire):
25 kW
Heating Capacity:
30 kW / 102,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Flue Diameter:
100 mm
Emitter Tube Length:
12,900 mm
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities
Compatible Accessories:
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PVL20LS and PVL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PVL20LS |
22 kW |
Longer radiant tube system |
~8 m |
| PVL20 |
22 kW |
Standard length radiant tube system |
~9.85 m |
