This Kit Includes:
1 × Powrmatic SRP PVL20LS Linear Vacuum Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube system
1 × Precision aluminium radiant reflector assembly
1 × Gas burner and induced draft fan system
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3
Compact Linear Vacuum Radiant Heater for Efficient Industrial Warehouse Heating

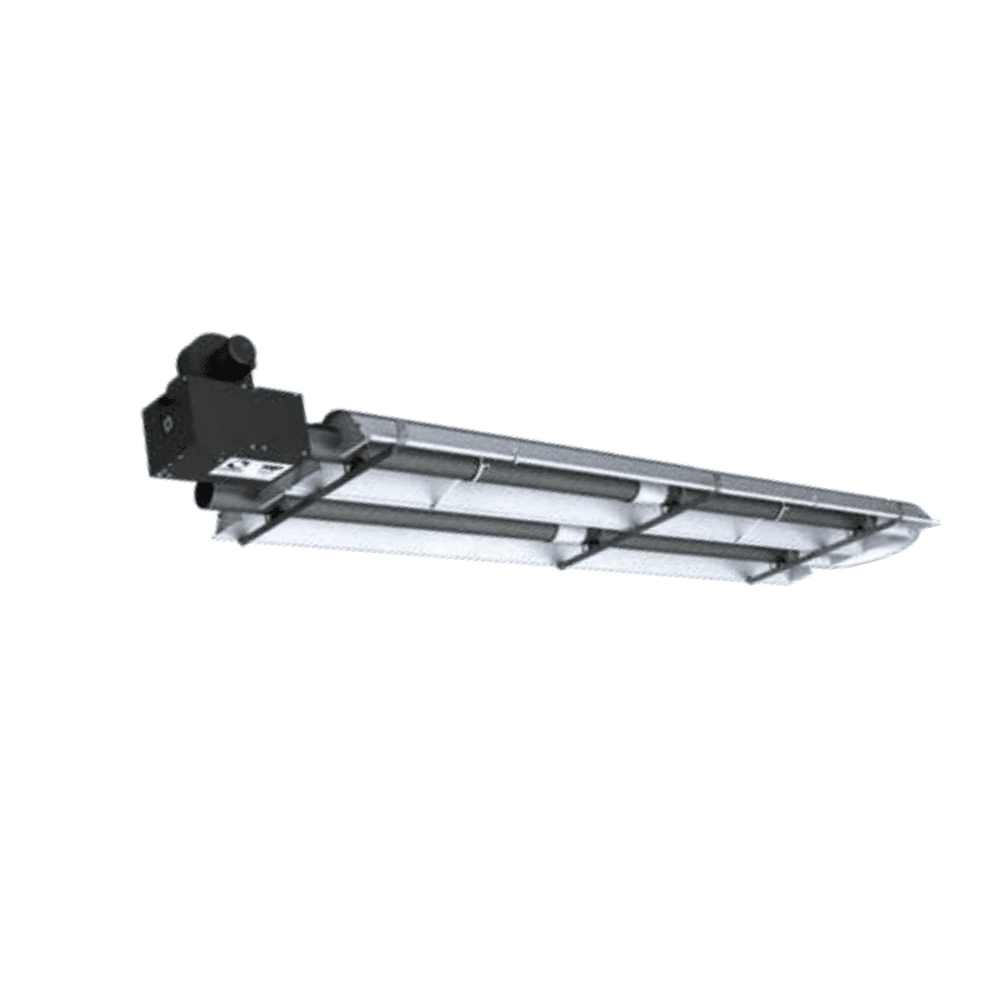

The Powrmatic SRP PVL20LS is a compact linear vacuum radiant tube heater engineered to deliver efficient infrared heating in warehouses, workshops and industrial buildings. With a heat input of 22 kW, the PVL20LS provides effective radiant heating coverage while maintaining a manageable installation length for buildings where space or structural limitations restrict longer radiant tube systems.
Using vacuum radiant heating technology, combustion gases are drawn through the emitter tube by an induced draft fan rather than pushed by the burner. This design produces a more even tube temperature along the radiant emitter, improving heat distribution and overall system efficiency compared with traditional forced burner radiant heaters.
Radiant heating works by emitting infrared heat energy directly toward people, equipment and floor surfaces rather than heating the surrounding air volume. This method significantly reduces heat losses caused by stratification, a common issue in large industrial buildings where warm air rises toward the roof space.
The PVL20LS linear radiant heater is particularly well suited for warehouses, logistics centres and manufacturing environments where consistent heating performance is required despite high ceilings or frequent door openings. By focusing heat into occupied working areas, the system improves comfort while reducing unnecessary energy consumption.
Supplied with the MC200 optimised digital controller, the PVL20LS allows precise temperature management and improved operational efficiency across industrial heating installations.
Key Product Features:
• Linear vacuum gas radiant tube heater
• Heat input: 22 kW / 75,000 Btu
• Vacuum induced draft radiant heating technology
• Even tube temperature for improved heat distribution
• High-efficiency aluminium reflector system
• Two-stage burner operation for energy efficiency
• Suitable for Natural Gas operation (G20)
• Compact linear configuration for shorter installation runs
• Supplied with MC200 optimised digital heating controller
• Designed for suspended ceiling installation
• Ideal for warehouses, factories and workshops
• Reduces heat stratification in high ceiling buildings
Technical Specifications:
Model: SRP PVL20LS
Product Type: Linear Vacuum Gas Radiant Tube Heater
Heat Input (High Fire):
22 kW
Heat Input (Low Fire):
17.5 kW
Heating Capacity:
22 kW / 75,000 Btu
Fuel Type:
Natural Gas (G20)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Flue Diameter:
100 mm
Emitter Tube Length:
8000 mm
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing facilities
• Logistics and distribution centres
• Workshops and engineering plants
• Agricultural buildings
• Commercial storage environments
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
