This Kit Includes:

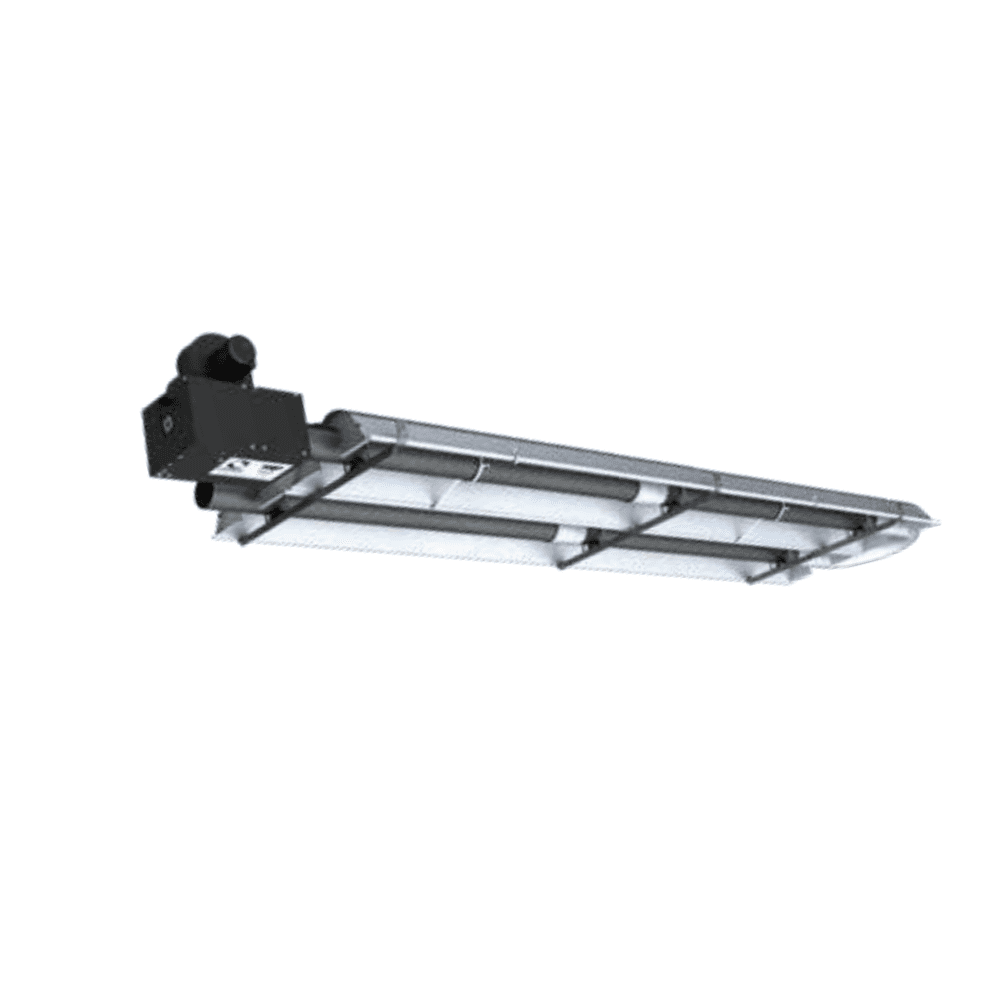

1 × Powrmatic SRP PVL20 Linear Vacuum Radiant Tube Heater
1 × High-efficiency aluminised steel radiant emitter tube assembly (9850mm)
1 × Precision aluminium radiant reflector system
1 × Gas burner with induced draft vacuum fan assembly
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3
Linear Vacuum Radiant Heater for Efficient Industrial Warehouse Heating
The Powrmatic SRP PVL20 is a linear vacuum radiant tube heater designed to deliver efficient infrared heating performance across warehouses, factories and large industrial buildings. With a heat input of 22 kW, the PVL20 provides reliable radiant heating coverage while maintaining a compact linear installation profile suitable for industrial spaces requiring controlled and evenly distributed heat.
Using vacuum radiant heating technology, the system draws combustion gases through the radiant tube via an induced draft fan rather than forcing them through the burner. This design allows for more uniform tube temperatures along the emitter length, improving radiant heat output and system efficiency. The longer 9850 mm emitter tube allows heat to be distributed across a wider working area, making the PVL20 ideal for warehouse aisles and industrial workspaces.
Radiant tube heating operates by emitting infrared energy directly towards people, machinery and floor surfaces rather than heating the surrounding air. This approach significantly reduces heat loss through stratification, a common issue in buildings with high ceilings where warm air rises towards the roof structure.
The PVL20 radiant heater is particularly suited to warehouses, logistics facilities and manufacturing environments where stable heating performance is required even when large doors are opened frequently. By directing heat into the occupied zone, the system improves worker comfort while reducing unnecessary energy consumption.
Supplied with the MC200 optimised controller, the heater provides precise temperature management and energy-efficient operation across demanding industrial environments.
Key Product Features:
• Linear vacuum gas radiant tube heater
• Heat input: 22 kW / 75,000 Btu
• Vacuum induced draft radiant heating technology
• Uniform tube temperature for improved radiant efficiency
• High-efficiency aluminium reflector system
• Two-stage burner operation for energy optimisation
• Designed for Natural Gas operation (G20)
• 9850 mm linear radiant emitter tube
• Supplied with MC200 optimised digital controller
• Suspended ceiling installation for industrial buildings
• Ideal for warehouses, factories and distribution centres
• Reduces heat stratification in high-ceiling environments
Technical Specifications:
Model: SRP PVL20
Product Type: Linear Vacuum Gas Radiant Tube Heater
Heat Input (High Fire):
22 kW
Heat Input (Low Fire):
17.5 kW
Heating Capacity:
22 kW / 75,000 Btu
Fuel Type:
Natural Gas (G20)
Heating Method:
Infrared Radiant Tube Heating
Electrical Supply:
220-240V~50Hz 1Ph
Burner Type:
Gas burner with induced draft vacuum fan
Flue Diameter:
100 mm
Emitter Tube Length:
9850 mm
Reflector Type:
High-efficiency aluminium radiant reflector
Installation Type:
Suspended ceiling mounting
Applications:
• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Engineering workshops
• Agricultural buildings
• Commercial storage facilities
Compatible Accessories:
| Model |
Part Number |
10 |
20LS |
20 |
30 |
40 |
50 |
60 |
20US |
20 |
30 |
40 |
50 |
| PL & PU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
1305 |
655 |
1499 |
1967 |
2905 |
|
|
| PVL & PVU |
PL*-SG / PU*-SG |
567 |
747 |
996 |
1175 |
1690 |
N/A |
655 |
1499 |
1967 |
2905 |
|
|
| PVDL |
PVDL**-SG |
N/A |
1105 |
1134 |
1290 |
2153 |
N/A |
N/A |
N/A |
N/A |
N/A |
|
|
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
| Description |
Included |
Part Number |
Used On |
Flue Dia (mm) |
£ |
| Vertical B22 (Single Pipe) Flue Kit |
1 × 90° elbow, 2 × 1000mm lengths, 1 × 500mm length, 1 × High temperature flashing, 1 × Flashing kit, 1 × Vertical terminal, 5 × Locking bands |
PSRP/VFK/1 |
PU/PVU |
100 |
503 |
|
|
PSRP/VFK/2 |
PL/PVL |
100 |
555 |
|
|
PSRP/VFK/3 |
PVDL |
130 |
657 |
| Horizontal B22 (Single Pipe) Flue Kit |
2 × 45° elbows, 2 × 1000mm lengths, 1 × 500mm length, 1 × Horizontal terminal, 6 × Locking bands |
PSRP/HFK/1 |
PU/PVU |
100 |
733 |
|
|
PSRP/HFK/2 |
PL/PVL |
100 |
483 |
|
|
PSRP/HFK/3 |
PVDL |
130 |
609 |
| Vertical C32 (Twin Pipe Balanced) Flue Kit |
1 × Terminal kit, 1 × Adaptor to flex, 1 × Aluminium flexible duct (1500mm), 1 × Jubilee clip, 1 × 250mm length, 1 × Adjustable length, 2 × Adjustable bands, 1 × L band, 1 × Silicon flashing No.5 |
PSRP/VBFK/1 |
PVU |
100 |
881 |
|
|
PSRP/VBFK/2 |
PU |
100 |
961 |
Difference Between PL20LS and PL20:
| Model |
Heat Input |
Main Difference |
Tube Length |
| PL20LS |
22 kW |
Longer radiant tube system |
~7.9 m |
| PL20 |
22 kW |
Standard length radiant tube system |
~9.5 m |
