This Kit Includes:

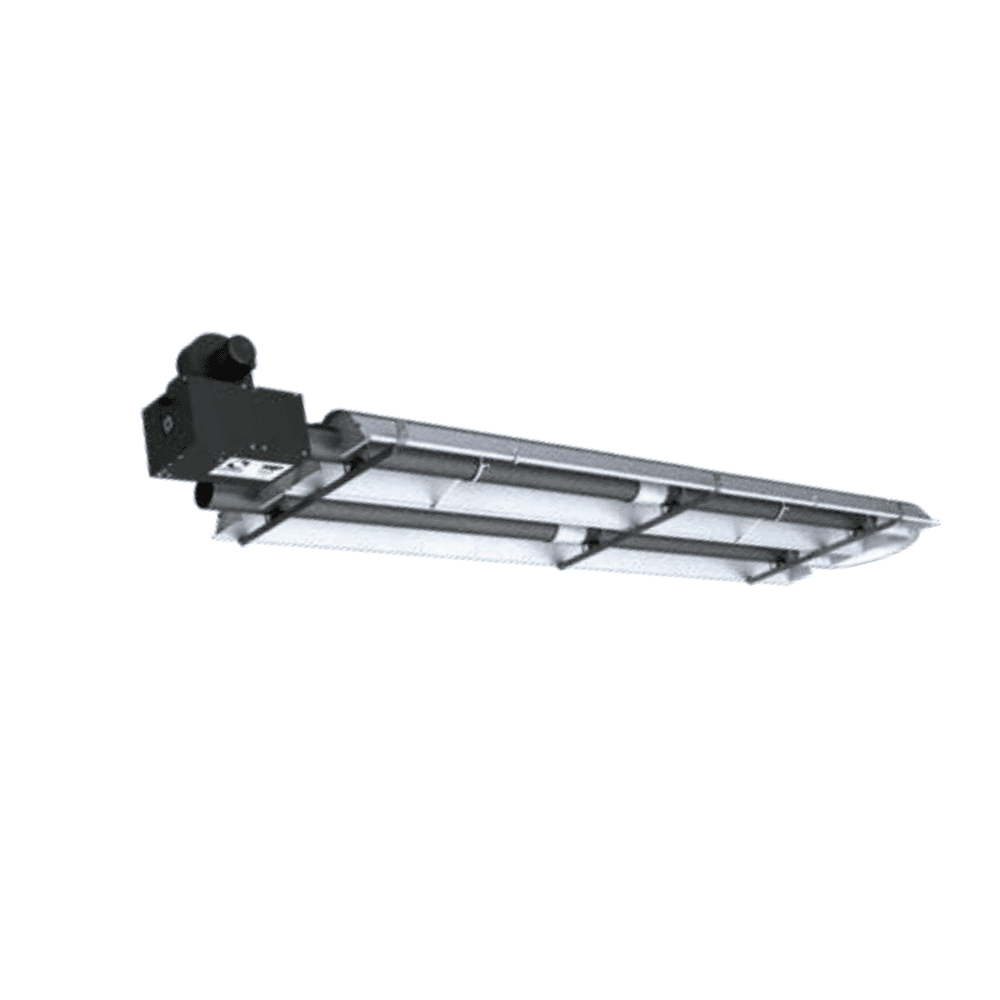

1 × Powrmatic PVDL30 Double Linear Vacuum Radiant Tube Heater
1 × Twin aluminised steel radiant emitter tube assemblies
1 × High-efficiency aluminium reflector system
1 × Induced vacuum gas burner assembly with combustion fan
1 × Galvanised suspension mounting bracket set
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3

High Output Double Linear Radiant Heating for Large Industrial Warehouses

The Powrmatic PVDL30 is a high-capacity double linear radiant tube heater engineered to provide powerful infrared heating for large warehouses, factories and distribution centres. Delivering 61 kW heat input, the heater uses vacuum burner technology to draw combustion gases through the emitter tubes, maintaining consistent tube temperatures and ensuring even heat distribution along the radiant surface.

Unlike traditional warm-air heating systems that heat the air volume within a building, radiant heaters emit infrared energy that directly warms floors, machinery and people within the occupied zone. This approach significantly reduces heat loss from stratification in buildings with high ceilings, improving comfort and heating efficiency in industrial environments.

The double linear radiant configuration effectively doubles the emitter surface area compared with single linear heaters, enabling greater heat coverage across wide warehouse bays and large manufacturing areas. Combined with high-efficiency aluminium reflectors, radiant energy is directed downward into the working zone to maximise usable heat output.

Powrmatic SRP radiant heaters incorporate two-stage high/low burner technology, allowing rapid warm-up on high fire and energy-efficient steady operation on low fire once the required temperature is reached. This design helps reduce fuel consumption while maintaining consistent thermal comfort across large industrial buildings.

Key Product Features:

• Double linear vacuum radiant tube heater
• Heat input (high fire): 61 kW / 207,000 Btu
• Heat input (low fire): 50 kW
• Vacuum burner technology for consistent radiant tube temperature
• Two-stage high / low burner operation
• High-efficiency aluminium reflector system
• Twin radiant emitter tube design for wider heat coverage
• Designed for suspended installation in large buildings
• Compatible with MC200 optimised radiant heating controller
• Suitable for Natural Gas or LPG (injector change required)
• Ideal for warehouses, factories and distribution centres

Technical Specifications:

Model: PVDL30
Product Type: Double Linear Vacuum Radiant Tube Heater

Heat Input (High Fire):
61 kW

Heat Input (Low Fire):
50 kW

Heating Capacity:
61 kW / 207,000 Btu

Fuel Type:
Natural Gas (G20) or LPG (G31)

Electrical Supply:
220-240V~50Hz 1Ph

Burner Type:
Induced vacuum gas burner

Emitter Configuration:
Double linear radiant tubes

Flue Diameter:
130 mm

Heater Length:
25,800 mm

Installation Type:
Suspended ceiling mounting

Applications:

• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities

Compatible Accessories:

Difference Between PVL20LS and PVL20:
