This Kit Includes:

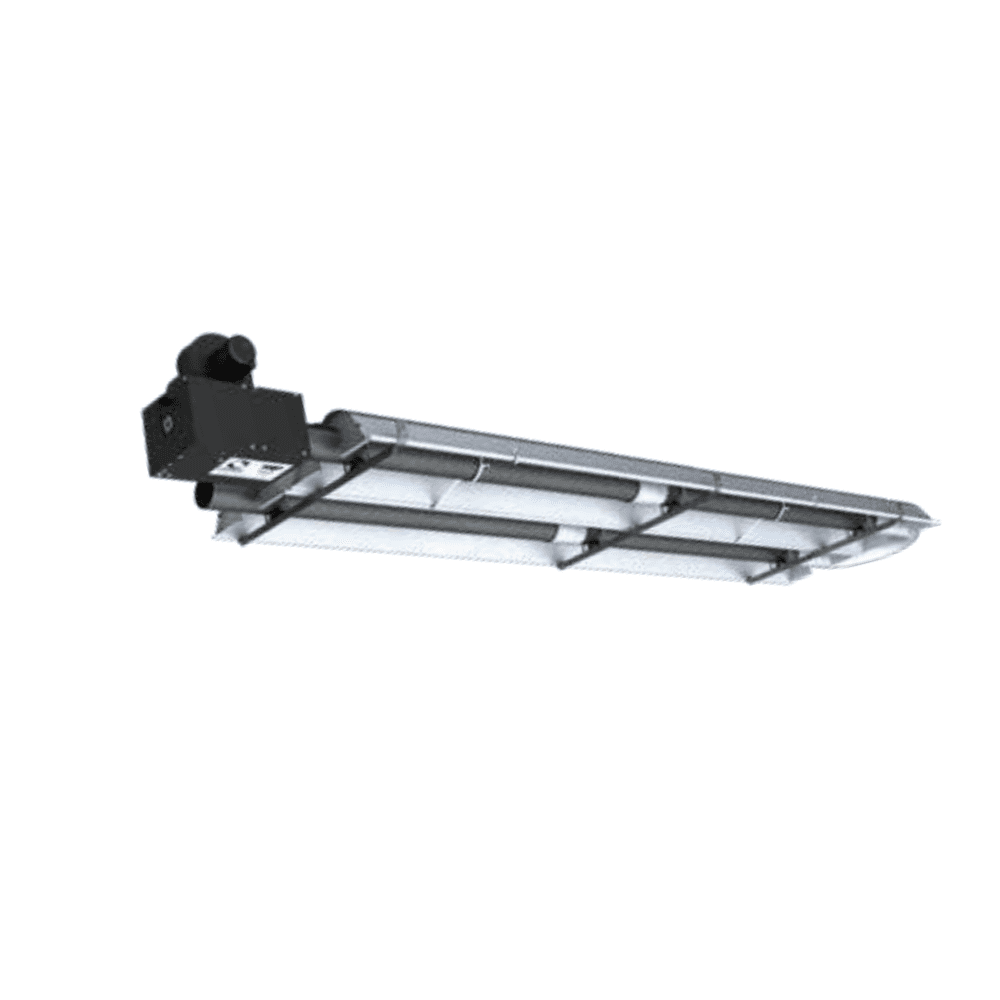

1 × Powrmatic PVDL20LS Double Linear Vacuum Radiant Tube Heater
1 × Twin aluminised steel radiant emitter tube assemblies
1 × Precision aluminium radiant reflector system
1 × Induced vacuum gas burner assembly with combustion fan
1 × Suspension mounting bracket kit
1 × Factory-installed ignition and safety control module
1 × MC200 Optimised Control MC200V3

High Output Double Linear Radiant Heater for Large Industrial Warehouses

The Powrmatic PVDL20LS is a high-capacity double linear radiant tube heater designed to provide powerful infrared heating performance across large industrial buildings such as warehouses, factories and distribution centres. Delivering a heat input of 44 kW, this model uses vacuum burner technology to create consistent radiant tube temperatures along the emitter length, ensuring uniform heat distribution throughout the occupied space.

Unlike traditional warm-air heating systems that heat the air volume within a building, radiant tube heaters emit infrared heat energy directly to floors, equipment and people within the working zone. This dramatically reduces heat losses caused by air stratification in high-roof buildings where warm air would normally rise toward the ceiling.

The double linear tube configuration effectively doubles the radiant emitter surface area compared with a single linear heater, allowing greater heat coverage while maintaining efficient operation. This configuration is particularly suited to wide warehouse bays, manufacturing areas and logistics buildings where high heat demand exists over large floor areas.

The heater incorporates two-stage high/low burner technology, allowing rapid heat-up on high fire and energy-efficient steady operation on low fire once the desired temperature has been reached. Automatic control is typically achieved using the MC200 energy-saving controller with black-bulb radiant sensor, ensuring accurate temperature control within the occupied zone.

With robust industrial construction and high-efficiency aluminium reflectors directing radiant energy downward, the PVDL20LS provides an effective heating solution for demanding commercial environments where reliable performance and energy efficiency are essential.

Key Product Features:

• Double linear vacuum radiant tube heater
• Heat input (high fire): 44 kW / 150,000 Btu
• Heat input (low fire): 35 kW
• Vacuum burner technology for consistent tube temperature
• Two-stage high/low burner operation
• High-efficiency aluminium reflector system
• Twin radiant emitter tube configuration
• Designed for suspended installation in industrial buildings
• Suitable for Natural Gas or LPG operation (injector change required)
• Compatible with MC200 optimised controller
• Ideal for large warehouse and manufacturing heating applications

Powrmatic SRP radiant heaters are engineered to deliver fast warm-up and improved fuel efficiency through two-stage burner control, making them suitable for demanding commercial heating installations.

Technical Specifications:

Model: PVDL20LS
Product Type: Double Linear Vacuum Radiant Tube Heater

Heat Input (High Fire):
44 kW

Heat Input (Low Fire):
35 kW

Heating Capacity:
44 kW / 150,000 Btu

Fuel Type:
Natural Gas (G20) or LPG (G31)

Heating Method:
Infrared Radiant Tube Heating

Electrical Supply:
220-240V~50Hz 1Ph

Burner Type:
Induced draft vacuum gas burner

Emitter Configuration:
Double linear radiant tubes

Flue Diameter:
130 mm

Heater Length:
16,700 mm

Installation Type:
Suspended ceiling mounting

Applications:

• Industrial warehouses
• Manufacturing plants
• Logistics and distribution centres
• Workshops and engineering facilities
• Agricultural buildings
• Commercial storage facilities

Compatible Accessories:

Difference Between PVL20LS and PVL20:
