This Kit Includes:

1 × Powrmatic PSDE45N Radiant Plaque Gas Heater (Natural Gas – G20)
1 × Aluminium radiant reflector assembly
1 × High-intensity ceramic radiant plaque burner module
1 × Factory-installed ignition and safety control system
1 × PSDE-WB Wall Mounting Bracket Kit
1 × MC200 Optimised Control MC200V3

High-Output Radiant Plaque Heater for Industrial Spot Heating

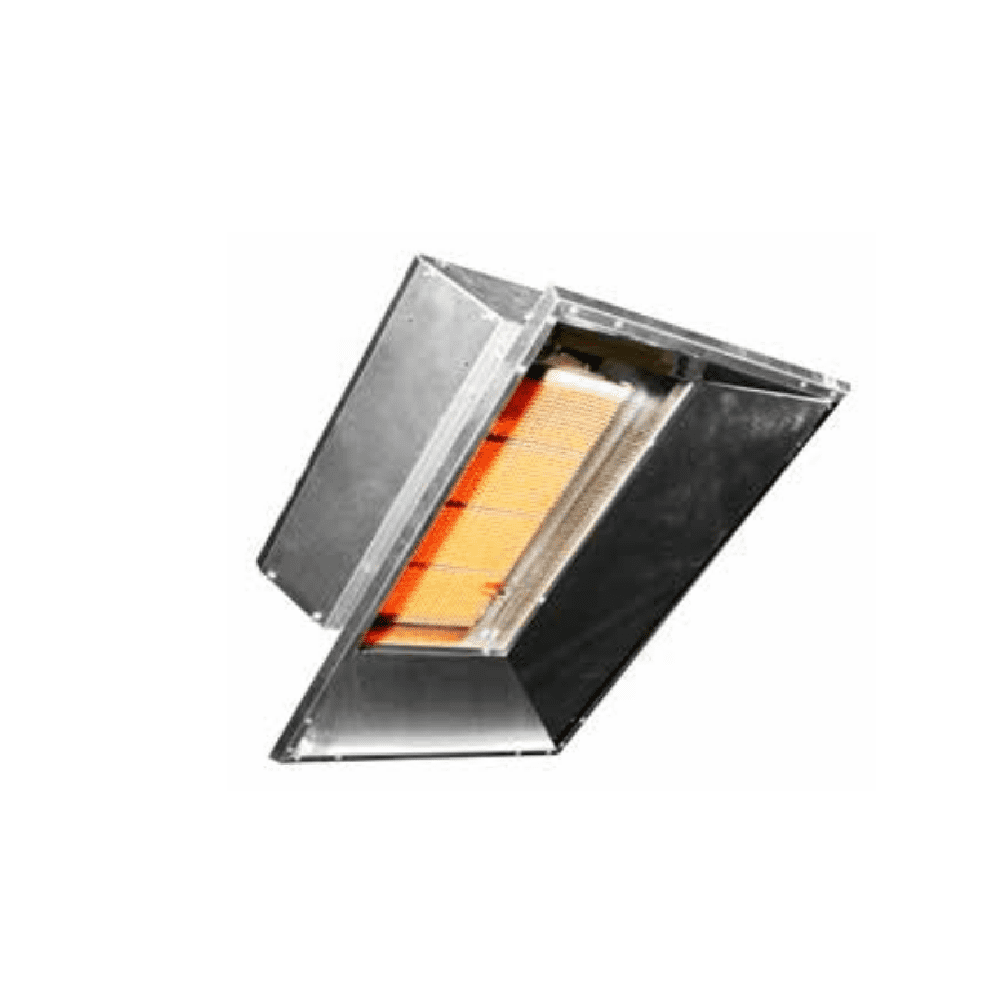

The Powrmatic PSDE45N is the most powerful model in the PSDE radiant plaque heater range, delivering 45 kW of high-intensity infrared heat for industrial and commercial applications. Designed for targeted heating, the unit uses a ceramic radiant plaque burner that emits infrared radiation directly toward people, machinery and workspaces rather than heating the surrounding air.

This method of heating is particularly effective in environments such as warehouses, loading bays and workshops where traditional warm-air heating can be inefficient due to high ceilings, open doors or large air volumes. Radiant plaque heaters provide rapid warm-up and direct comfort by focusing heat into the occupied working zone rather than wasting energy heating unused air space.

The PSDE range is designed for industrial spot heating, providing efficient and directed heat for cold areas within large commercial buildings.

A polished aluminium reflector maximises downward radiant heat distribution while the compact wall-mounted design allows easy installation above workstations, loading docks or production areas where localised heating is required.

When used with the MC200 energy-saving controller and radiant temperature sensor, the heater can maintain comfortable radiant temperatures while improving energy efficiency in demanding industrial environments.

Key Product Features:

• High-intensity radiant plaque gas heater
• Heat input: 45 kW / 153,000 Btu
• Natural Gas (G20) configuration
• Ceramic radiant plaque burner technology
• Rapid infrared heat-up performance
• High-efficiency aluminium reflector for directional heating
• Compact wall-mounted installation design
• Ideal for targeted spot heating work areas
• Compatible with MC200 optimised heater controller
• Designed for industrial and commercial heating environments

Technical Specifications:

Model: PSDE45N
Product Type: Gas Radiant Plaque Heater

Heat Input:
45 kW

Heating Capacity:
45 kW / 153,000 Btu

Fuel Type:
Natural Gas (G20)

Electrical Supply:
220-240V~50Hz 1Ph

Heating Method:
Ceramic radiant plaque infrared heating

Mounting Type:
Wall mounted (bracket included)

Reflector Type:
Aluminium radiant reflector

Gas Connection:
½" BSP

Applications:

• Warehouse loading bays
• Workshops and garages
• Industrial workstations
• Agricultural buildings
• Retail warehouses
• Outdoor or semi-open commercial spaces
