This Kit Includes:

1 × Powrmatic PSDE40N Radiant Plaque Gas Heater (Natural Gas – G20)
1 × Aluminium radiant reflector assembly
1 × High-intensity ceramic radiant plaque burner module
1 × Factory-installed ignition and safety control system
1 × PSDE-WB Wall Mounting Bracket Kit
1 × MC200 Optimised Control MC200V3

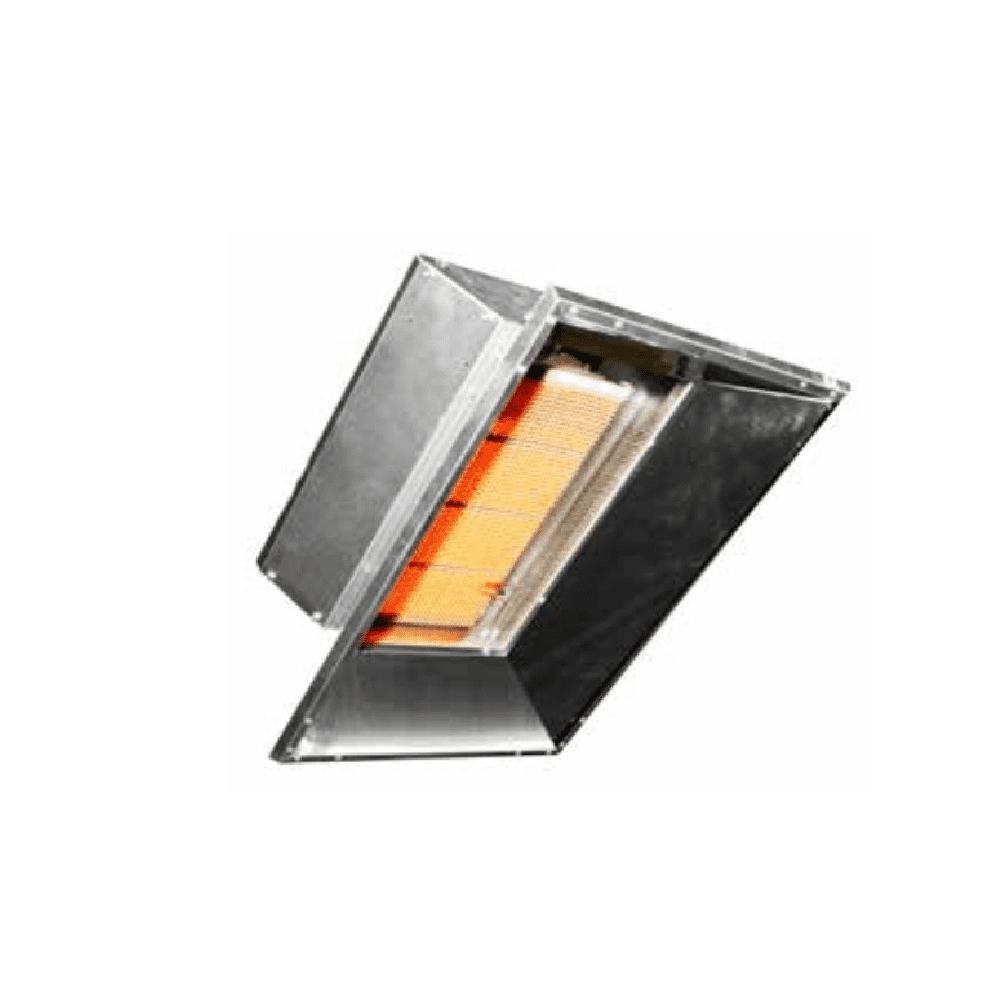

High-Intensity Radiant Plaque Heater for Industrial Spot Heating

The Powrmatic PSDE40N is a powerful high-intensity radiant plaque heater designed for targeted infrared heating in warehouses, factories and commercial workspaces. Delivering 41 kW of heat output, the unit uses a ceramic radiant plaque burner to emit infrared heat directly toward people, equipment and floor areas rather than heating the surrounding air.

Radiant plaque heaters are particularly effective in buildings where warm air heating systems struggle due to high ceilings, ventilation losses or frequently opened loading doors. By directing radiant energy toward the occupied working zone, the PSDE40N provides fast heat-up and reliable comfort while minimising energy losses caused by air movement or heat stratification.

The heater incorporates a polished aluminium reflector designed to maximise downward radiant heat distribution and improve heating efficiency across the work area. Its compact wall-mounted configuration allows installation above workstations, loading bays or production lines where dependable spot heating is required.

Automatic operation is achieved using the MC200 energy-saving heater controller with remote black-bulb radiant sensor, allowing accurate radiant temperature control and improved energy efficiency in demanding industrial environments.

Key Product Features:

• High-intensity radiant plaque gas heater
• Heat input: 41 kW / 139,000 Btu
• Natural Gas (G20) configuration
• Ceramic radiant plaque burner technology
• Rapid infrared heat-up performance
• Aluminium reflector for directional heating
• Compact wall-mounted installation design
• Ideal for targeted spot heating work areas
• Compatible with MC200 optimised heater controller
• Designed for industrial and commercial heating environments

Technical Specifications:

Model: PSDE40N
Product Type: Gas Radiant Plaque Heater

Heat Input:
41 kW

Heating Capacity:
41 kW / 139,000 Btu

Fuel Type:
Natural Gas (G20)

Electrical Supply:
220-240V~50Hz 1Ph

Heating Method:
Ceramic radiant plaque infrared heating

Mounting Type:
Wall mounted (bracket included)

Reflector Type:
Aluminium radiant reflector

Applications:

• Warehouse loading bays
• Workshops and garages
• Industrial workstations
• Agricultural buildings
• Retail warehouses
• Outdoor or semi-open commercial spaces
