This Kit Includes:
1 × Powrmatic PSDE10N Radiant Plaque Gas Heater
1 × Aluminium radiant reflector assembly
1 × Ceramic radiant plaque burner module
1 × Factory-installed ignition and safety control module
1 × PSDE-WB Wall Mounting Bracket Kit
1 × MC200 Optimised Control MC200V3
Compact Radiant Plaque Heater for Targeted Industrial Spot Heating

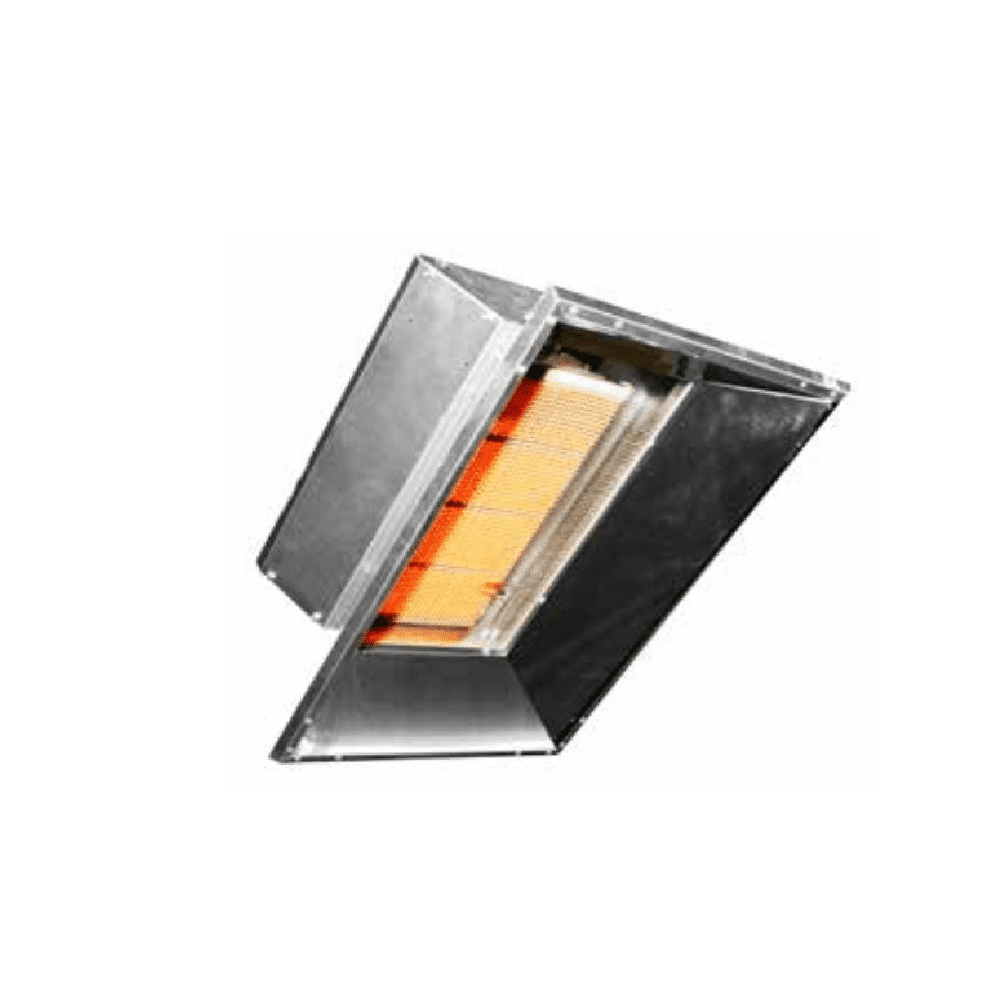

The Powrmatic PSDE10N is a compact high-intensity natural gas-fired radiant plaque heater designed to deliver efficient spot heating in industrial and commercial environments. Producing 10.5 kW of radiant heat output, the heater uses a ceramic plaque burner to emit infrared heat directly toward people, equipment and working areas rather than heating the surrounding air.
Radiant plaque heaters are particularly effective in buildings where heat loss through open doors, ventilation or high ceilings makes conventional warm-air heating inefficient. By directing infrared heat toward the occupied zone, the PSDE10N provides fast warm-up and targeted comfort for workstations, loading bays and production areas.
The heater incorporates a high-efficiency aluminium reflector designed to maximise downward radiation and improve heating performance. Lightweight construction and a compact design allow simple wall-mounted installation, making the unit suitable for workshops, garages, warehouses and agricultural buildings.
Automatic operation is typically achieved using the MC200 energy-saving controller with remote black-bulb radiant sensor, ensuring accurate radiant temperature control and improved energy efficiency.
Key Product Features:
• High-intensity radiant plaque natural gas heater
• Heat input: 10.5 kW / 34,000 Btu
• Ceramic radiant plaque burner technology
• Rapid warm-up infrared heating
• Aluminium reflector for maximum downward heat distribution
• Compact wall-mounted installation design
• Ideal for spot heating work areas
• Suitable for Natural Gas (G20) or LPG (G31) versions
• Compatible with MC200 optimised radiant heating controller
• Designed for industrial and commercial heating applications
Technical Specifications:
Model: PSDE10N Natural Gas
Product Type: Gas Radiant Plaque Heater
Heat Input:
10.5 kW
Heating Capacity:
10.5 kW / 34,000 Btu
Fuel Type:
Natural Gas (G20) or LPG (G31)
Electrical Supply:
220-240V~50Hz 1Ph
Heating Method:
Ceramic radiant plaque infrared heating
Mounting Type:
Wall mounted (bracket included)
Reflector Type:
Aluminium radiant reflector
Applications:
• Warehouse loading bays
• Workshops and garages
• Industrial workstations
• Agricultural buildings
• Retail warehouses
• Outdoor or semi-open commercial spaces
