This Kit Includes:

1 × Powrmatic CXO150HF Cabinet Heater Horizontal Free-Blowing Configuration

1 × Factory-fitted oil burner assembly

1 × Integrated control interface (MC200 compatible)

150kW Horizontal Cabinet Free-Blowing Oil-Fired Industrial Heater (ErP 2021 Compliant)

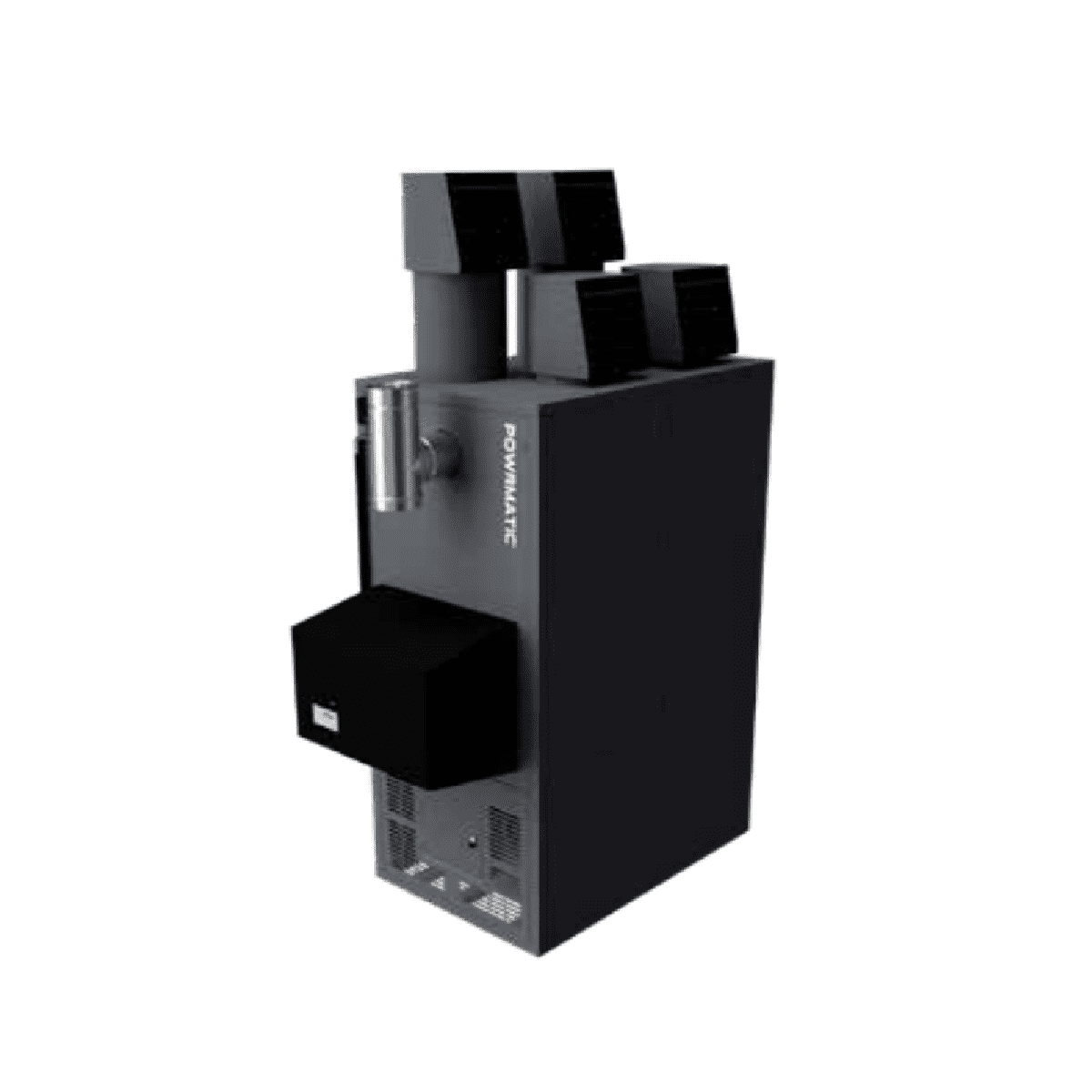

The Powrmatic CXO150HF is an ultra high-capacity, oil-fired cabinet heater designed to deliver powerful direct warm air heating in the largest commercial and industrial environments. With a 150kW heat output and horizontal free-blowing configuration, it is ideally suited to applications where the heater is mounted at high level or within a plant space and very large volumes of warm air are discharged directly into the occupied area without the need for ductwork.

Part of Powrmatic’s ErP 2021-compliant CX oil-fired range, the CXO150HF is equipped with a high-performance pressure jet oil burner, providing dependable combustion, consistent heat output and reliable operation. This makes it particularly suitable for off-gas locations, rural sites and heavy-duty industrial buildings where natural gas is unavailable.

The heavy-duty cabinet construction, horizontal mounting orientation and compatibility with advanced control systems make the CXO150HF a dependable heating solution for warehouses, factories, logistics hubs, aircraft hangars and very large agricultural or commercial spaces requiring extremely high-output direct warm air delivery.

Key Product Features:

• Heat output: 150kW
• Horizontal free-blowing configuration for direct air discharge
• High-efficiency oil-fired pressure jet burner
• ErP 2021 compliant for energy efficiency
• Reliable performance for off-gas and rural locations
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with remote sensors and BMS integration
• Designed for kerosene (28 sec oil) operation

Technical Specifications:

Model: CXO150HF

Heater Type: Oil-fired cabinet heater

Output: 150kW

Air Delivery: Free-blowing (no duct connection required)

Orientation: Horizontal

Installation Location: Internal

Burner Type: Pressure jet oil burner

Fuel Type:
Kerosene (28 sec oil)

Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)

Control Compatibility:
Powrmatic MC200 and remote sensor options

Heat Exchanger:
High-grade steel (optional stainless steel variants available)

Compatible Accessories:

• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade

Disclaimer:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
