This Kit Includes:

1 × Powrmatic CXO120UF Cabinet Heater Upright Free-Blowing Configuration

1 × Factory-fitted oil burner assembly

1 × Integrated control interface (MC200 compatible)

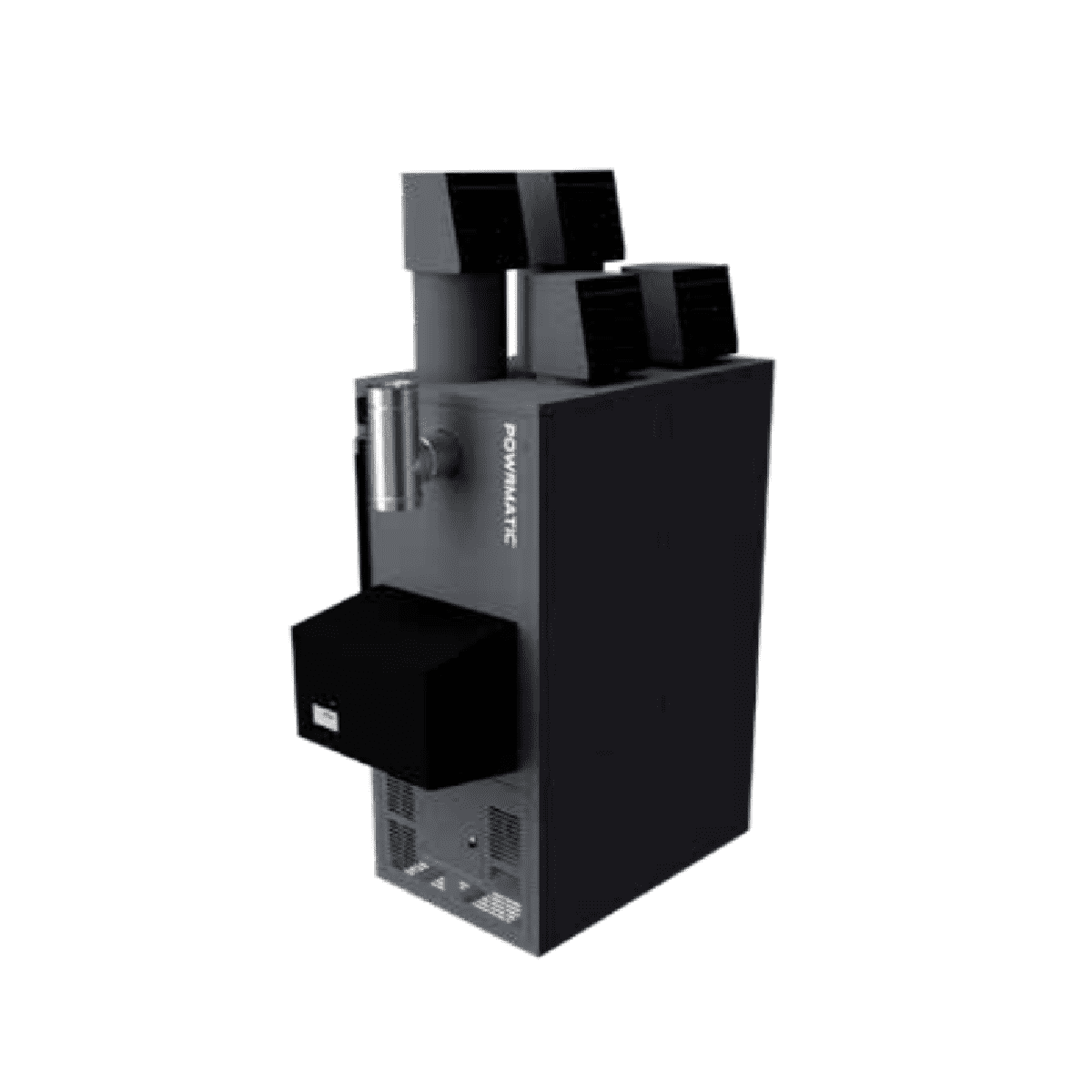

120kW Upright Cabinet Free-Blowing Oil-Fired Industrial Heater (ErP 2021 Compliant)

The Powrmatic CXO120UF is a very high-capacity, oil-fired cabinet heater designed to deliver powerful and reliable warm air heating in the largest commercial and industrial environments. With a 120kW heat output and upright free-blowing configuration, it is ideal for applications where ductwork is not required and large volumes of warm air can be discharged directly into the occupied space.

Part of Powrmatic’s ErP 2021-compliant CX oil-fired range, the CXO120UF is equipped with a high-performance pressure jet oil burner, providing dependable combustion, consistent heat output and reliable operation. This makes it particularly suitable for off-gas locations, rural sites and heavy-duty industrial buildings where natural gas is unavailable.

The heavy-duty cabinet construction, upright installation format and compatibility with advanced control systems make the CXO120UF a dependable heating solution for warehouses, factories, distribution centres, aircraft hangars and very large agricultural or commercial spaces requiring extremely high-output direct warm air delivery.

Key Product Features:

• Heat output: 120kW
• Upright free-blowing configuration for direct air discharge
• High-efficiency oil-fired pressure jet burner
• ErP 2021 compliant for energy efficiency
• Reliable performance for off-gas and rural locations
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with remote sensors and BMS integration
• Designed for kerosene (28 sec oil) operation

Technical Specifications:

Model: CXO120UF

Heater Type: Oil-fired cabinet heater

Output: 120kW

Air Delivery: Free-blowing (no duct connection required)

Orientation: Upright

Installation Location: Internal

Burner Type: Pressure jet oil burner

Fuel Type:
Kerosene (28 sec oil)

Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)

Control Compatibility:
Powrmatic MC200 and remote sensor options

Heat Exchanger:
High-grade steel (optional stainless steel variants available)

Compatible Accessories:

• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade

Disclaimer:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
