This Kit Includes:

1 × Powrmatic CXG90UF Cabinet Heater Upright Free-Blowing Configuration

1 × Factory-fitted modulating gas burner assembly

1 × Integrated control interface (MC200 compatible)

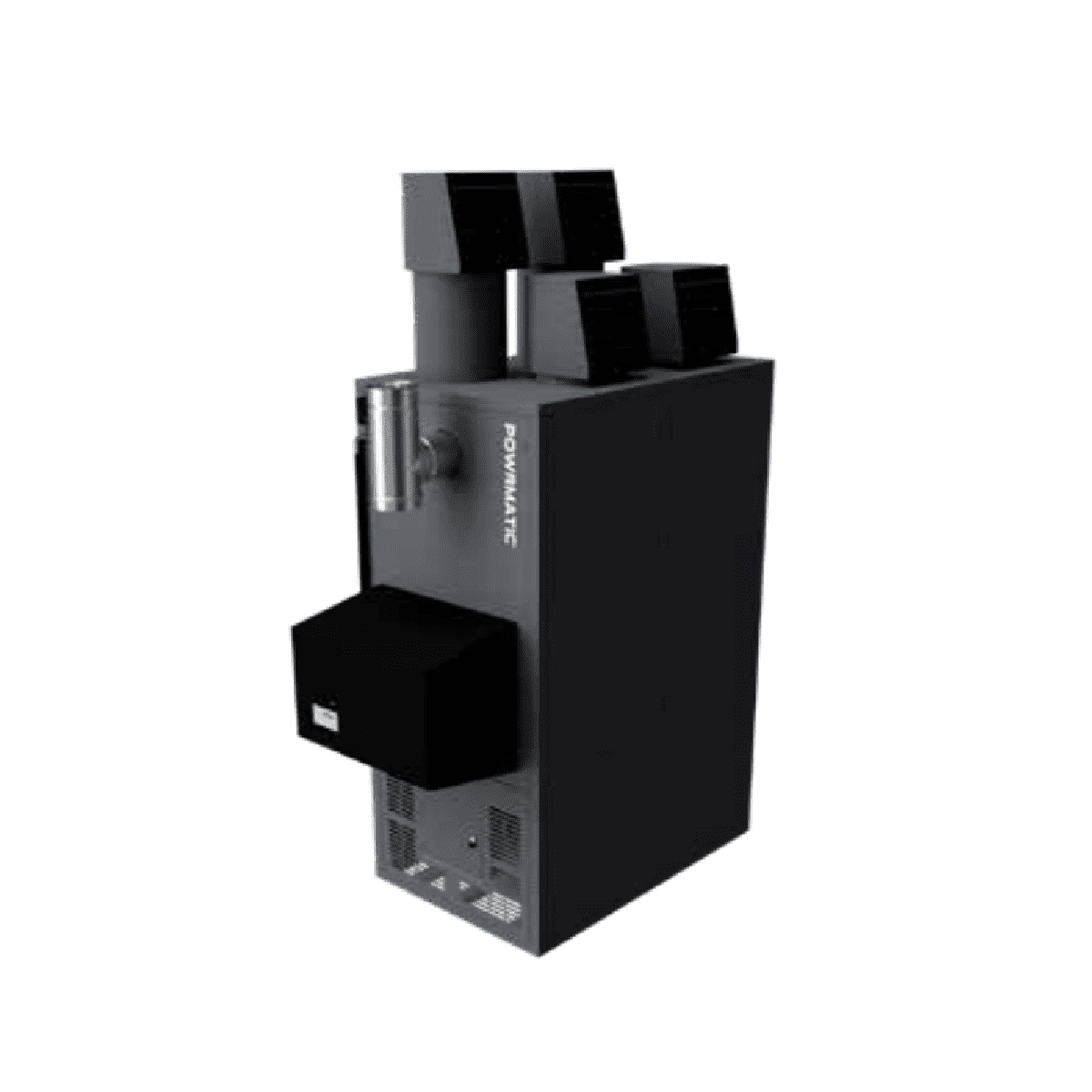

90kW Upright Cabinet Free-Blowing Gas-Fired Industrial Heater (ErP 2021 Compliant)

The Powrmatic CXG90UF is a high-output, energy-efficient cabinet heater designed to deliver powerful and reliable warm air heating in very large commercial and industrial environments. With a 90kW heat output and upright free-blowing configuration, it is ideal for applications where ductwork is not required and heat can be discharged directly into the occupied space.

As part of Powrmatic’s ErP 2021-compliant CX gas-fired range, the CXG90UF incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner. This fully modulating burner technology provides excellent part-load efficiency, reduced emissions and lower operating costs, making it well suited to modern buildings with demanding energy efficiency and carbon reduction targets.

The heavy-duty cabinet construction, upright installation format and compatibility with advanced control systems make the CXG90UF a dependable heating solution for warehouses, factories, distribution centres, aircraft hangars and large commercial spaces requiring high-capacity direct warm air delivery.

Key Product Features:

• Heat output: 90kW
• Upright free-blowing configuration for direct air discharge
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced cycling
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with remote sensors, dampers and BMS integration
• Available for natural gas or LPG configurations

Technical Specifications:

Model: CXG90UF

Heater Type: Gas-fired cabinet heater

Output: 90kW

Air Delivery: Free-blowing (no duct connection required)

Orientation: Upright

Installation Location: Internal

Burner Type: Fully modulating ultra-low NOx

Fuel Options:
Natural gas (G20) / LPG propane (G31)

Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)

Control Compatibility:
Powrmatic MC200 and remote sensor options

Heat Exchanger:
High-grade steel (optional stainless steel variants available)

Compatible Accessories:

• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade

Disclaimer:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
