This Kit Includes:

1 × Powrmatic CXG60UD Cabinet Heater Upright Ducted Configuration

1 × Factory-fitted modulating gas burner assembly

1 × Integrated control interface (MC200 compatible)

60kW Upright Cabinet Ducted Gas-Fired Industrial Heater (ErP 2021 Compliant)

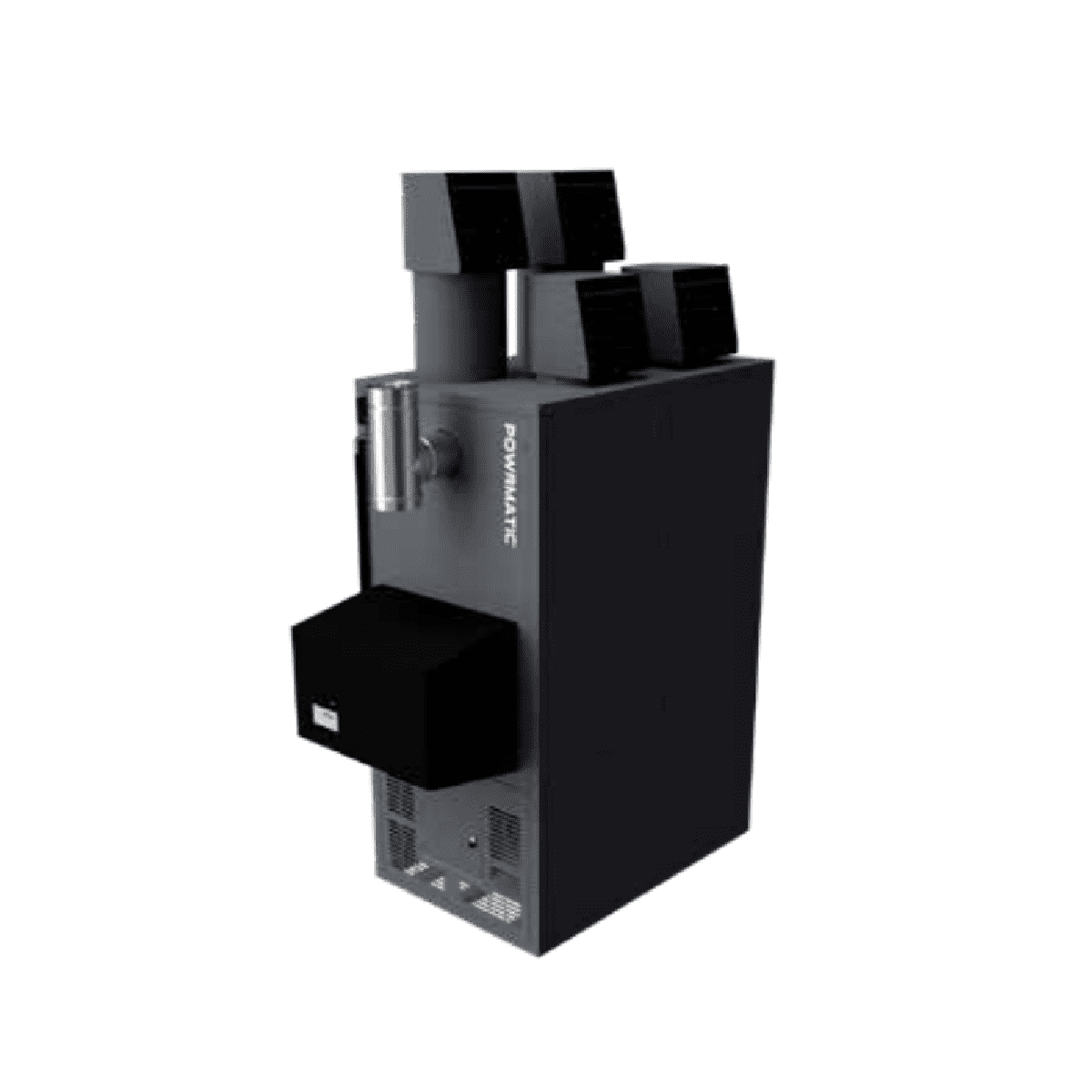

The Powrmatic CXG60UD is a high-output, energy-efficient cabinet heater designed to deliver controlled warm air heating to large commercial and industrial environments via ducted air distribution. With a 60kW heat output and upright ducted configuration, it is ideally suited to applications where heat must be delivered to defined zones or multiple areas through ductwork.

As part of Powrmatic’s ErP 2021-compliant CX gas-fired range, the CXG60UD incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner. This fully modulating burner technology delivers excellent part-load efficiency, reduced emissions and lower operating costs, making it suitable for modern buildings with energy efficiency and carbon reduction objectives.

The robust cabinet construction, ducted air delivery capability and compatibility with advanced control systems make the CXG60UD a dependable heating solution for warehouses, factories, distribution centres, plant rooms and large commercial spaces requiring managed warm air distribution.

Key Product Features:

• Heat output: 60kW
• Upright ducted configuration for controlled air distribution
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced cycling
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with duct sensors, dampers and BMS integration
• Available for natural gas or LPG configurations

Technical Specifications:

Model: CXG60UD

Heater Type: Gas-fired cabinet heater

Output: 60kW

Air Delivery: Ducted (external ductwork connection required)

Orientation: Upright

Installation Location: Internal

Burner Type: Fully modulating ultra-low NOx

Fuel Options:
Natural gas (G20) / LPG propane (G31)

Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)

Control Compatibility:
Powrmatic MC200 and remote sensor options

Heat Exchanger:
High-grade steel (optional stainless steel variants available)

Compatible Accessories:

• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade

Disclaimer:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
