This Kit Includes:
1 × Powrmatic CXO45UF Cabinet Heater Upright Free-Blowing Configuration
1 × Factory-fitted oil burner assembly
1 × Integrated control interface (MC200 compatible)

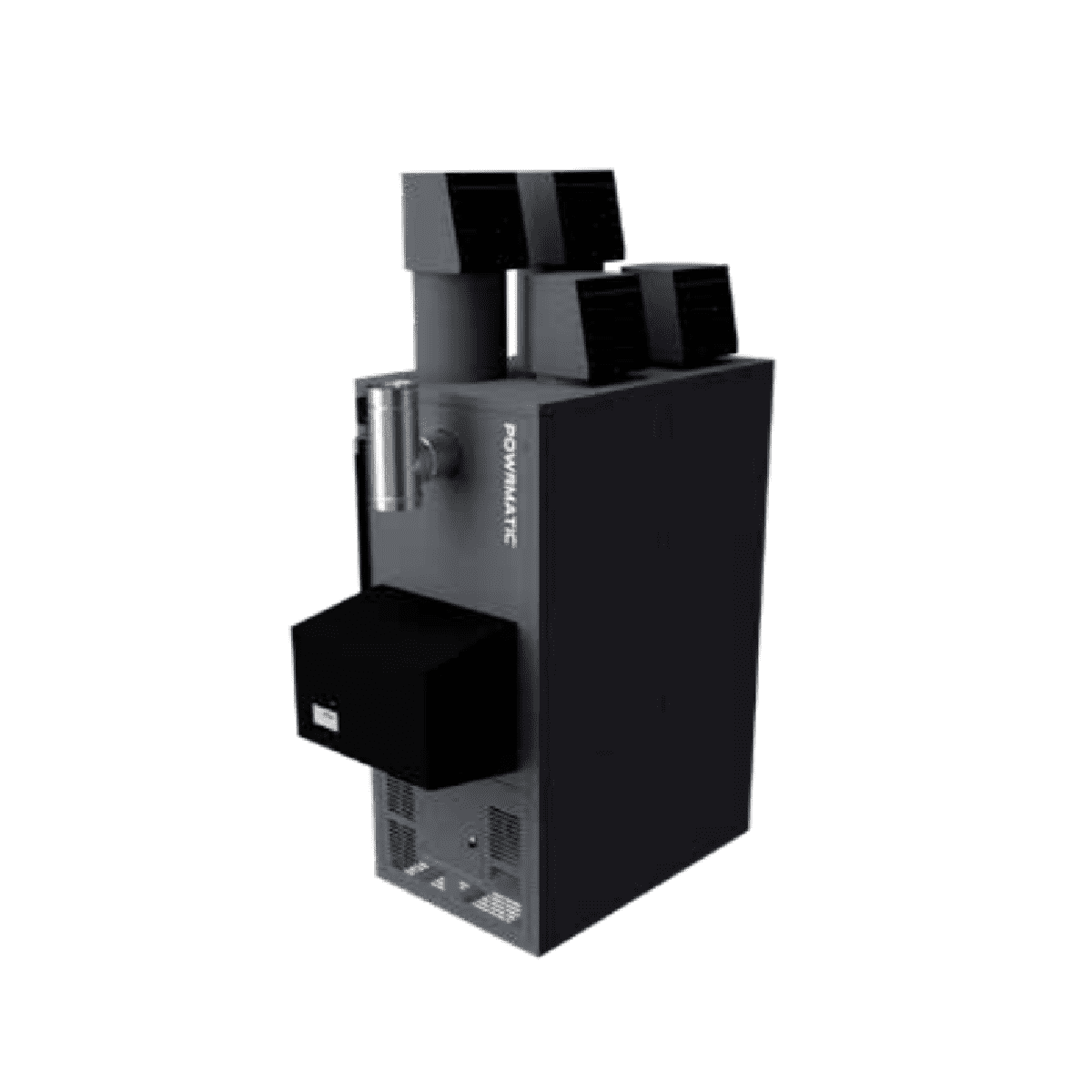

45kW Upright Cabinet Free-Blowing Oil-Fired Industrial Heater (ErP 2021 Compliant)
The Powrmatic CXO45UF is a high-capacity, oil-fired cabinet heater designed to deliver reliable warm air heating in demanding commercial and industrial environments. With a 45kW heat output and upright free-blowing configuration, it is ideal for applications where ductwork is not required and heat can be discharged directly into the occupied space.
Part of Powrmatic’s ErP 2021-compliant CX oil-fired range, the CXO45UF is equipped with a high-performance pressure jet oil burner, providing consistent combustion, dependable operation and efficient heat output. This makes it particularly well suited to off-gas locations, rural sites and industrial buildings where natural gas is unavailable.
The robust cabinet construction, straightforward installation and compatibility with advanced control options make the CXO45UF a dependable heating solution for warehouses, workshops, factories, agricultural buildings and large commercial spaces requiring powerful direct warm air delivery.
Key Product Features:
• Heat output: 45kW
• Upright free-blowing configuration for direct air discharge
• High-efficiency oil-fired pressure jet burner
• ErP 2021 compliant for energy efficiency
• Reliable performance for off-gas and rural locations
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with remote sensors and BMS integration
• Designed for kerosene (28 sec oil) operation
Technical Specifications:
Model: CXO45UF
Heater Type: Oil-fired cabinet heater
Output: 45kW
Air Delivery: Free-blowing (no duct connection required)
Orientation: Upright
Installation Location: Internal
Burner Type: Pressure jet oil burner
Fuel Type:
Kerosene (28 sec oil)
Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)
Control Compatibility:
Powrmatic MC200 and remote sensor options
Heat Exchanger:
High-grade steel (optional stainless steel variants available)
Compatible Accessories:
• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade
CX & CPx - Heater Accessories:
| Model |
Part Number |
Used on |
| Wired 1 phase |
***/1PH |
As shown |
| Wired 3 phase |
***/3PH |
As shown |
| Uprated fan |
***/LHP |
UD/HD |
| Variable Speed Drive (inverter) |
***/INV |
All |
| Soft start option |
***/SOFT |
All |
| Heater less standard controls |
***/NC |
All |
| Heater supplied in kit form (note 1) |
***/KIT |
All |
| Heater supplied in split form |
***/SPLIT |
All |
| Galvanised heater option |
***/GALV |
All |
| 409 S/S heat exchanger |
***/409 |
All |
| Painted colour options (BS or RAL) |
***/RAL |
All |
| Model |
Part Number |
Used on |
| Combustion air intake adapter |
***/CAA |
All |
| Side or rear inlet duct spigot |
***/LDS-(S/R) |
All |
| Screened air intake |
***/SAI |
All |
| Inlet filter – EU1 |
***/FB |
All |
| Weatherproofed inlet filter – EU1 |
**EA/FB |
CPx EA |
| Proportional air damper |
***/PAD |
All |
| Weatherproofed proportional air damper |
**EA/PAD |
CPx EA |
| Two position damper motor (24v) |
2DM-24 |
PAD |
| Two position damper motor (230v) |
2DM-230 |
PAD |
| Modulating damper motor (24v) |
MDM-24 |
PAD |
| Modulating damper motor (230v) |
MDM-230 |
PAD |
| Two position damper motor (230v) |
2DM |
All |
| Model |
Part Number |
Used on |
| MC200 remote sensor |
143070031 |
All |
| MC200 duct sensor |
143070035 |
All |
| Differential Pressure Switch |
ECP/DPS |
All |
Disclaimer:
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
