This Kit Includes:

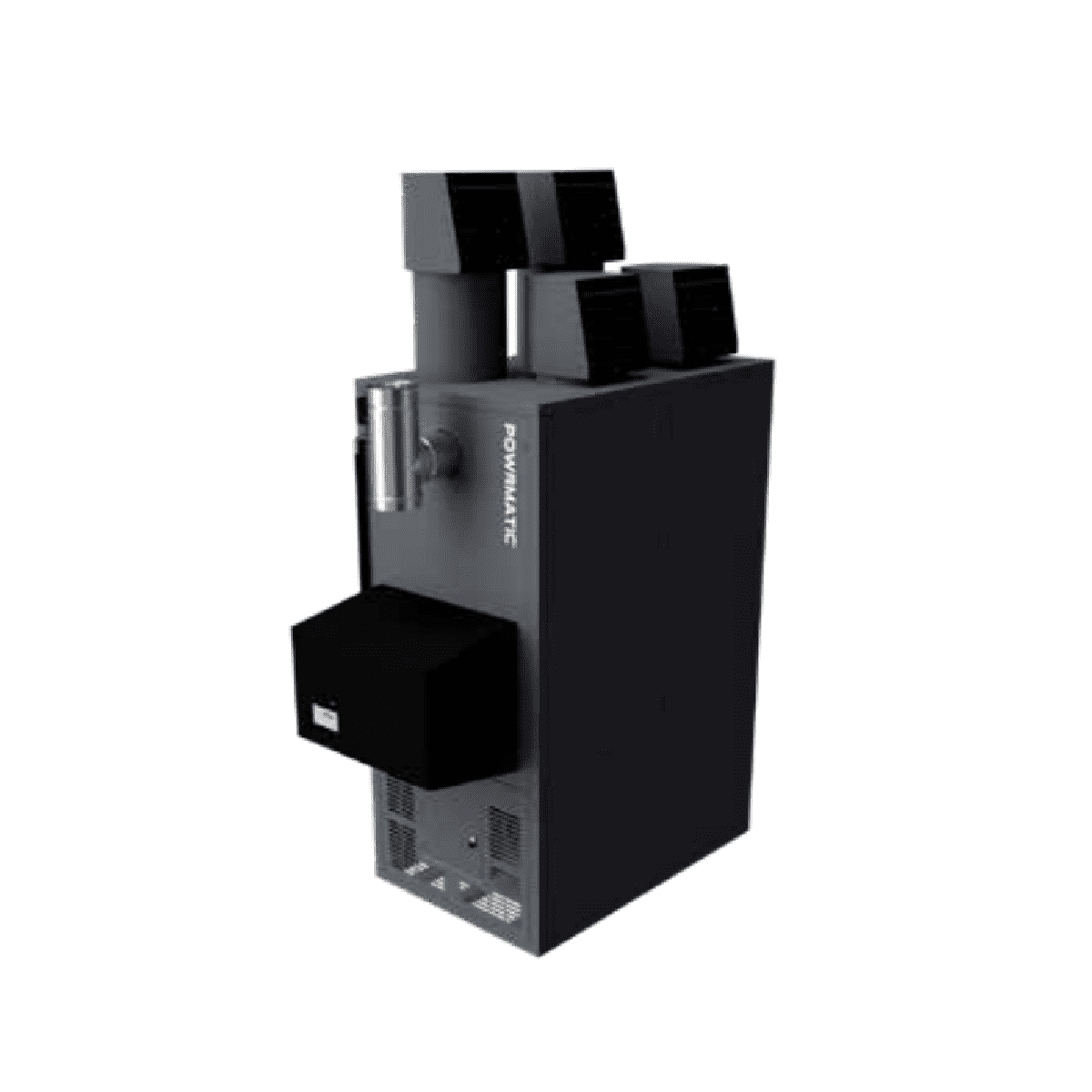

1 × Powrmatic CXG30UF Cabinet Heater Upright Free-Blowing Configuration
1 × Factory-fitted modulating gas burner assembly
1 × Integrated control interface (MC200 compatible)
30kW Upright Cabinet Free-Blowing Gas-Fired Industrial Heater (ErP 2021 Compliant)
The Powrmatic CXG30UF is a compact, high-efficiency cabinet heater designed to deliver reliable warm air heating in commercial and industrial environments. With a 30kW heat output and upright free-blowing configuration, it is ideal for applications where ductwork is not required and heat can be discharged directly into the occupied space.
As part of Powrmatic’s ErP 2021-compliant CX range, the CXG30UF incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner. This fully modulating burner technology provides improved part-load efficiency, reduced emissions and lower operating costs, making it well suited to modern buildings seeking to reduce energy consumption and environmental impact.
The robust cabinet construction, flexible installation options and compatibility with advanced control systems make the CXG30UF a dependable heating solution for warehouses, workshops, factories, plant rooms and large commercial spaces.
Key Product Features:
• Heat output: 30kW
• Upright free-blowing configuration for direct air discharge
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced cycling
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with remote sensors, dampers and BMS integration
• Available for natural gas, LPG or kerosene configurations
Technical Specifications:
Model: CXG30UF
Heater Type: Gas-fired cabinet heater
Output: 30kW
Air Delivery: Free-blowing (no duct connection required)
Orientation: Upright
Installation Location: Internal
Burner Type: Fully modulating ultra-low NOx
Fuel Options:
Natural gas (G20) / LPG propane (G31) / Kerosene (28 sec oil)
Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)
Control Compatibility:
Powrmatic MC200 and remote sensor options
Heat Exchanger:
High-grade steel (optional stainless steel variants available)
Compatible Accessories:
• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade
CX & CPx - Heater Accessories:
| Model |
Part Number |
Used on |
| Wired 1 phase |
***/1PH |
As shown |
| Wired 3 phase |
***/3PH |
As shown |
| Uprated fan |
***/LHP |
UD/HD |
| Variable Speed Drive (inverter) |
***/INV |
All |
| Soft start option |
***/SOFT |
All |
| Heater less standard controls |
***/NC |
All |
| Heater supplied in kit form (note 1) |
***/KIT |
All |
| Heater supplied in split form |
***/SPLIT |
All |
| Galvanised heater option |
***/GALV |
All |
| 409 S/S heat exchanger |
***/409 |
All |
| Painted colour options (BS or RAL) |
***/RAL |
All |
| Model |
Part Number |
Used on |
| Combustion air intake adapter |
***/CAA |
All |
| Side or rear inlet duct spigot |
***/LDS-(S/R) |
All |
| Screened air intake |
***/SAI |
All |
| Inlet filter – EU1 |
***/FB |
All |
| Weatherproofed inlet filter – EU1 |
**EA/FB |
CPx EA |
| Proportional air damper |
***/PAD |
All |
| Weatherproofed proportional air damper |
**EA/PAD |
CPx EA |
| Two position damper motor (24v) |
2DM-24 |
PAD |
| Two position damper motor (230v) |
2DM-230 |
PAD |
| Modulating damper motor (24v) |
MDM-24 |
PAD |
| Modulating damper motor (230v) |
MDM-230 |
PAD |
| Two position damper motor (230v) |
2DM |
All |
| Model |
Part Number |
Used on |
| MC200 remote sensor |
143070031 |
All |
| MC200 duct sensor |
143070035 |
All |
| Differential Pressure Switch |
ECP/DPS |
All |
Disclaimer:
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
