This Kit Includes:

1 × Powrmatic CXG30UD Cabinet Heater Upright Ducted Configuration

1 × Factory-fitted modulating gas burner assembly

1 × Integrated control interface (MC200 compatible)

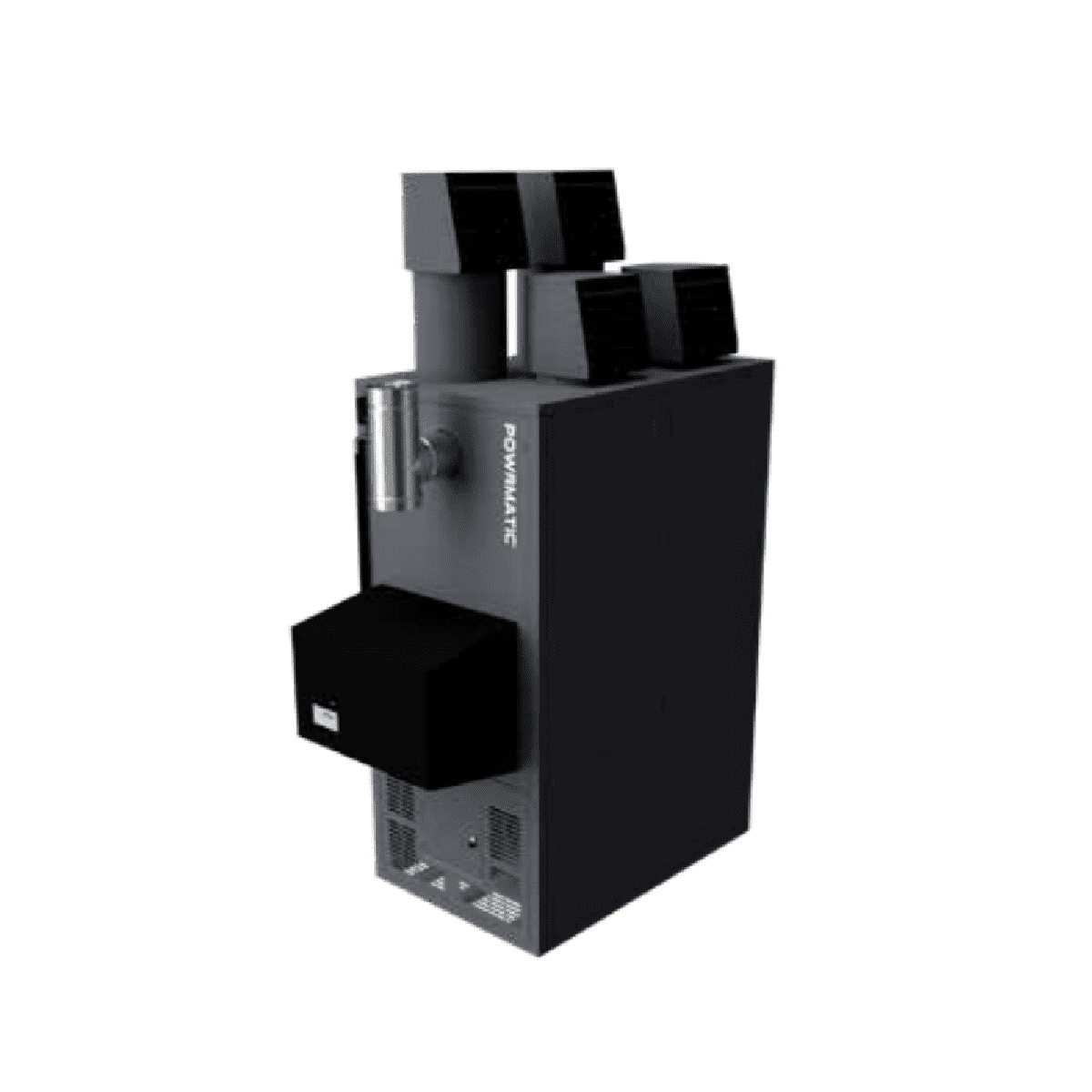

30kW Upright Ducted Gas-Fired Industrial Heater (ErP 2021 Compliant)

The Powrmatic CXG30UD is a compact, high-efficiency cabinet heater designed to deliver controlled warm air heating to commercial and industrial environments via ducted air distribution. With a 30kW heat output and upright ducted configuration, it is ideal for applications where heat needs to be delivered to defined zones or multiple areas through ductwork.

Part of Powrmatic’s ErP 2021-compliant CX range, the CXG30UD incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner, providing fully modulating operation, improved part-load efficiency and reduced emissions. This makes it particularly suitable for modern buildings requiring precise temperature control, reduced running costs and lower environmental impact.

The robust cabinet construction, compatibility with ducted systems and support for advanced controls make the CXG30UD a dependable solution for warehouses, factories, workshops, plant rooms and large commercial spaces where managed air delivery is required.

Key Product Features:

• Heat output: 30kW
• Upright ducted configuration for controlled air distribution
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced cycling
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with duct sensors, dampers and BMS integration
• Available for natural gas, LPG or kerosene configurations

Technical Specifications:

Model: CXG30UD

Heater Type: Gas-fired cabinet heater

Output: 30kW

Air Delivery: Ducted (external ductwork connection required)

Orientation: Upright

Installation Location: Internal

Burner Type: Fully modulating ultra-low NOx

Fuel Options:
Natural gas (G20) / LPG propane (G31) / Kerosene (28 sec oil)

Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)

Control Compatibility:
Powrmatic MC200 and remote sensor options

Heat Exchanger:
High-grade steel (optional stainless steel variants available)

Compatible Accessories:

• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade

Disclaimer:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
