This Kit Includes:

1 × Powrmatic CXG300UF Cabinet Heater Upright Free-Blowing Configuration

1 × Factory-fitted modulating gas burner assembly

1 × Integrated control interface (MC200 compatible)

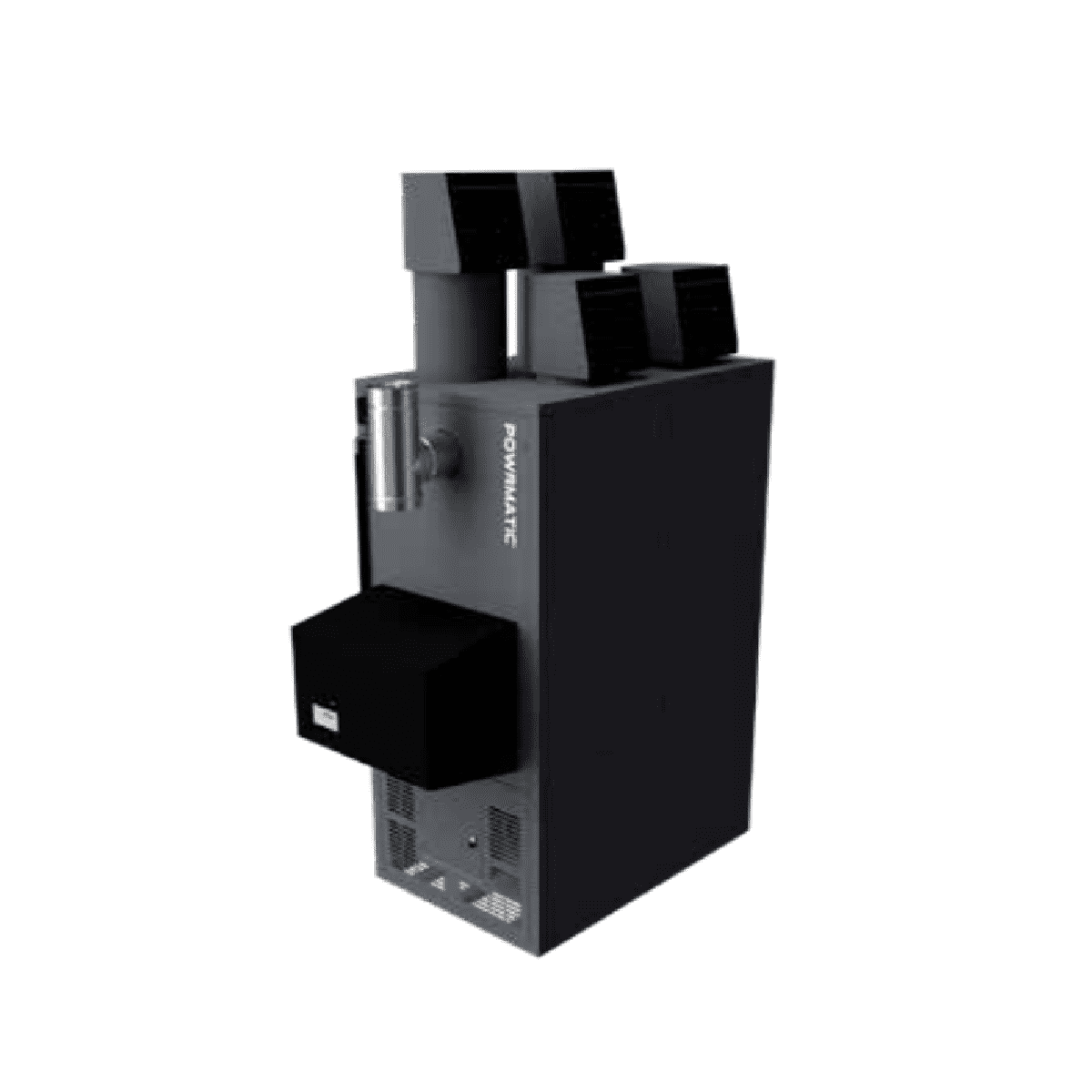

300kW Upright Cabinet Free-Blowing Gas-Fired Industrial Heater (ErP 2021 Compliant)

The Powrmatic CXG300UF is an ultra high-capacity, energy-efficient cabinet heater engineered to deliver exceptional warm air performance in the largest commercial and industrial environments. With a substantial 300kW heat output and upright free-blowing configuration, it is designed for applications where ductwork is not required and extremely large volumes of heated air can be discharged directly into the occupied space.

As part of Powrmatic’s ErP 2021-compliant CX gas-fired range, the CXG300UF incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner. This fully modulating burner technology provides outstanding part-load efficiency, reduced emissions and optimised fuel consumption, making it suitable for modern industrial facilities seeking lower operational costs and improved environmental performance.

The heavy-duty cabinet construction, upright mounting format and compatibility with advanced control systems make the CXG300UF a dependable heating solution for distribution centres, aircraft hangars, manufacturing plants, logistics hubs and very large commercial or industrial spaces requiring extremely high-output direct warm air delivery.

Key Product Features:

• Heat output: 300kW
• Upright free-blowing configuration for direct air discharge
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced burner cycling
• Suitable for internal installation
• Heavy-duty cabinet construction for industrial environments
• Compatible with remote sensors, dampers and BMS integration
• Available for natural gas or LPG configurations

Technical Specifications:

Model: CXG300UF

Heater Type: Gas-fired cabinet heater

Output: 300kW

Air Delivery: Free-blowing (no duct connection required)

Orientation: Upright

Installation Location: Internal

Burner Type: Fully modulating ultra-low NOx

Fuel Options:
Natural gas (G20) / LPG propane (G31)

Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)

Control Compatibility:
Powrmatic MC200 and remote sensor options

Heat Exchanger:
High-grade steel (optional stainless steel variants available)

Compatible Accessories:

• MC200 remote room sensor
• MC200 duct temperature sensor
• Variable speed drive (inverter option)
• Soft start option
• Proportional or two-position air dampers
• Weatherproof inlet and filtration options
• Galvanised cabinet finish
• Stainless steel heat exchanger upgrade

Disclaimer:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
