This Kit Includes:
1 × Powrmatic CXG175UD Cabinet Heater Upright Ducted Configuration
1 × Factory-fitted modulating gas burner assembly
1 × Integrated control interface (MC200 compatible)

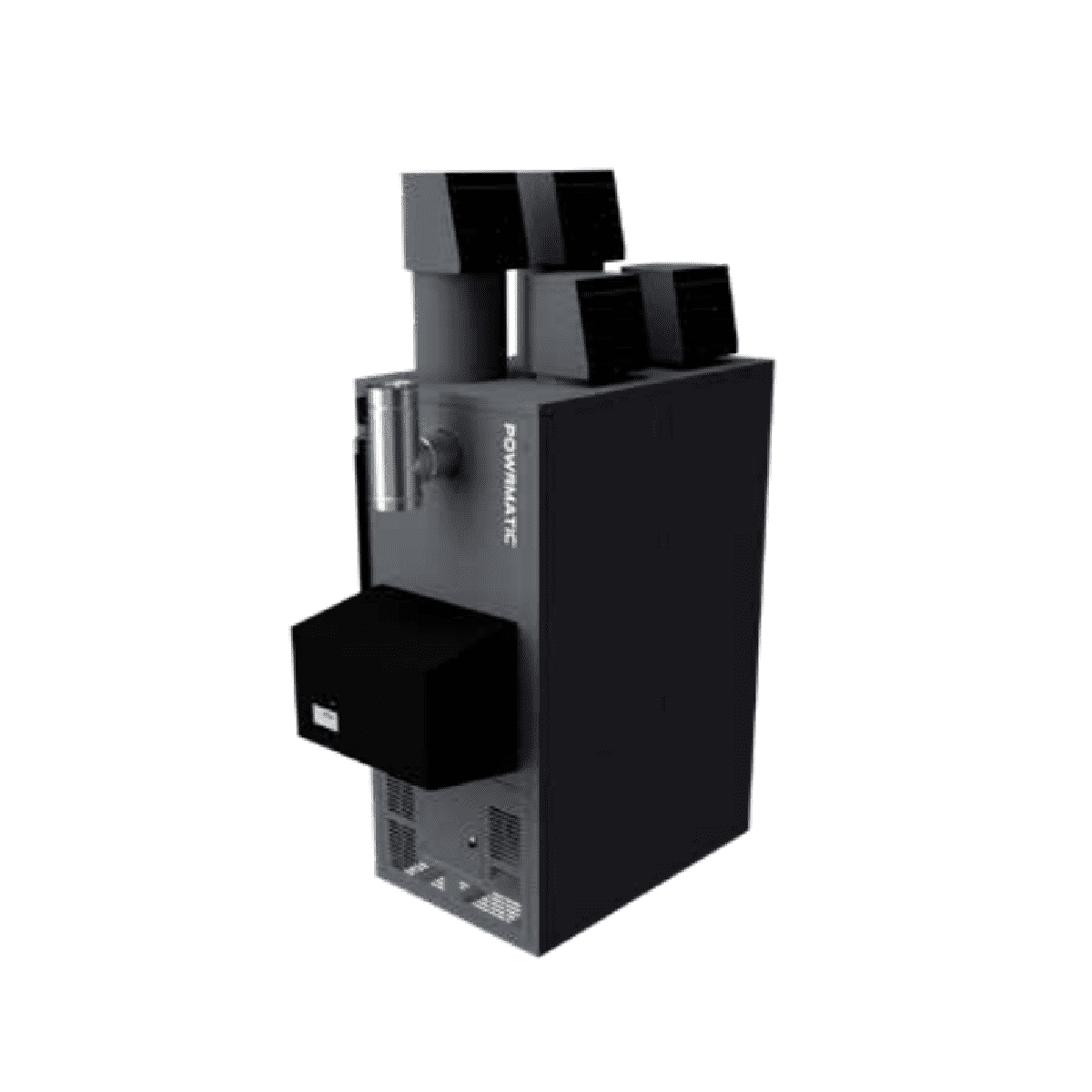

175kW Upright Cabinet Ducted Gas-Fired Industrial Heater (ErP 2021 Compliant)
The Powrmatic CXG175UD is an ultra high-capacity, energy-efficient cabinet heater designed to deliver controlled warm air heating to the largest commercial and industrial environments via ducted air distribution. With a 175kW heat output and upright ducted configuration, it is ideally suited to applications where heat must be accurately distributed to defined zones or multiple areas through ductwork.
As part of Powrmatic’s ErP 2021-compliant CX gas-fired range, the CXG175UD incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner. This fully modulating burner technology provides excellent part-load efficiency, reduced emissions and lower operating costs, making it well suited to modern buildings with strict energy efficiency, sustainability and carbon reduction targets.
The heavy-duty cabinet construction, high-capacity ducted air delivery and compatibility with advanced control systems make the CXG175UD a dependable heating solution for warehouses, factories, logistics hubs, plant rooms and very large commercial spaces requiring managed high-output warm air distribution.
Key Product Features:
• Heat output: 175kW
• Upright ducted configuration for controlled air distribution
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced cycling
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with duct sensors, dampers and BMS integration
• Available for natural gas or LPG configurations
Technical Specifications:
Model: CXG175UD
Heater Type: Gas-fired cabinet heater
Output: 175kW
Air Delivery: Ducted (external ductwork connection required)
Orientation: Upright
Installation Location: Internal
Burner Type: Fully modulating ultra-low NOx
Fuel Options:
Natural gas (G20) / LPG propane (G31)
Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)
Control Compatibility:
Powrmatic MC200 and remote sensor options
Heat Exchanger:
High-grade steel (optional stainless steel variants available)
CX & CPx - Heater Accessories:
| Model |
Part Number |
Used on |
| Wired 1 phase |
***/1PH |
As shown |
| Wired 3 phase |
***/3PH |
As shown |
| Uprated fan |
***/LHP |
UD/HD |
| Variable Speed Drive (inverter) |
***/INV |
All |
| Soft start option |
***/SOFT |
All |
| Heater less standard controls |
***/NC |
All |
| Heater supplied in kit form (note 1) |
***/KIT |
All |
| Heater supplied in split form |
***/SPLIT |
All |
| Galvanised heater option |
***/GALV |
All |
| 409 S/S heat exchanger |
***/409 |
All |
| Painted colour options (BS or RAL) |
***/RAL |
All |
| Model |
Part Number |
Used on |
| Combustion air intake adapter |
***/CAA |
All |
| Side or rear inlet duct spigot |
***/LDS-(S/R) |
All |
| Screened air intake |
***/SAI |
All |
| Inlet filter – EU1 |
***/FB |
All |
| Weatherproofed inlet filter – EU1 |
**EA/FB |
CPx EA |
| Proportional air damper |
***/PAD |
All |
| Weatherproofed proportional air damper |
**EA/PAD |
CPx EA |
| Two position damper motor (24v) |
2DM-24 |
PAD |
| Two position damper motor (230v) |
2DM-230 |
PAD |
| Modulating damper motor (24v) |
MDM-24 |
PAD |
| Modulating damper motor (230v) |
MDM-230 |
PAD |
| Two position damper motor (230v) |
2DM |
All |
| Model |
Part Number |
Used on |
| MC200 remote sensor |
143070031 |
All |
| MC200 duct sensor |
143070035 |
All |
| Differential Pressure Switch |
ECP/DPS |
All |
Disclaimer:
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
