This Kit Includes:
1 × Powrmatic CXG120UF Cabinet Heater Upright Free-Blowing Configuration
1 × Factory-fitted modulating gas burner assembly
1 × Integrated control interface (MC200 compatible)

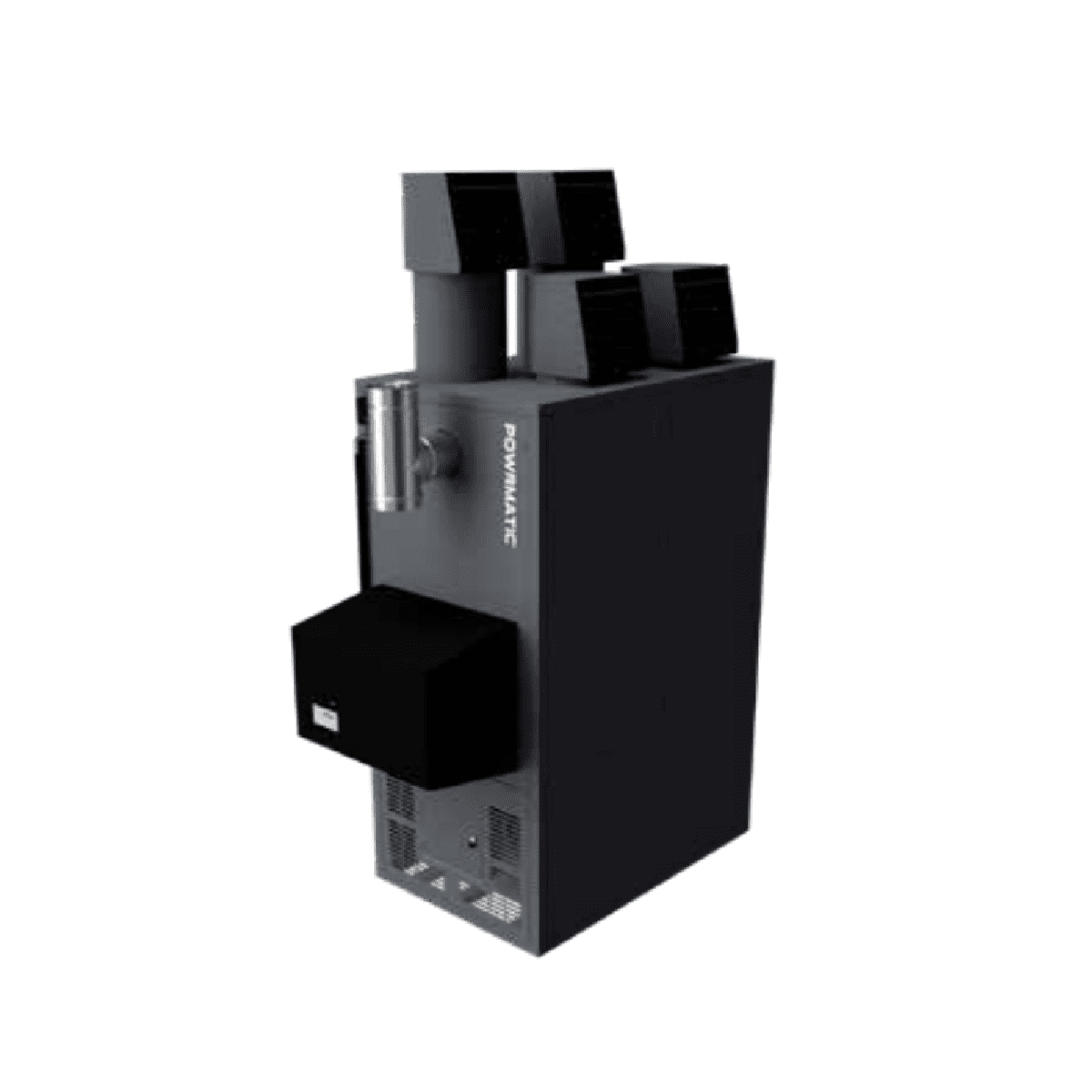

120kW Upright Cabinet Free-Blowing Gas-Fired Industrial Heater (ErP 2021 Compliant)
The Powrmatic CXG120UF is a very high-capacity, energy-efficient cabinet heater designed to deliver powerful and reliable warm air heating in the largest commercial and industrial environments. With a 120kW heat output and upright free-blowing configuration, it is ideal for applications where ductwork is not required and large volumes of warm air can be discharged directly into the occupied space.
As part of Powrmatic’s ErP 2021-compliant CX gas-fired range, the CXG120UF incorporates the advanced BURNERTECH InverterJet® ultra-low NOx burner. This fully modulating burner technology delivers excellent part-load efficiency, reduced emissions and lower operating costs, making it well suited to modern buildings with strict energy efficiency and carbon reduction targets.
The heavy-duty cabinet construction, upright installation format and compatibility with advanced control systems make the CXG120UF a dependable heating solution for warehouses, factories, distribution centres, aircraft hangars and large commercial spaces requiring extremely high-output direct warm air delivery.
Key Product Features:
• Heat output: 120kW
• Upright free-blowing configuration for direct air discharge
• Fully modulating BURNERTECH InverterJet® ultra-low NOx gas burner
• ErP 2021 compliant for energy efficiency and emissions
• High seasonal efficiency with reduced cycling
• Suitable for internal installation
• Heavy-duty cabinet design for industrial environments
• Compatible with remote sensors, dampers and BMS integration
• Available for natural gas or LPG configurations
Technical Specifications:
Model: CXG120UF
Heater Type: Gas-fired cabinet heater
Output: 120kW
Air Delivery: Free-blowing (no duct connection required)
Orientation: Upright
Installation Location: Internal
Burner Type: Fully modulating ultra-low NOx
Fuel Options:
Natural gas (G20) / LPG propane (G31)
Power Supply:
220–240V ~ 50Hz (control circuit dependent on configuration)
Control Compatibility:
Powrmatic MC200 and remote sensor options
Heat Exchanger:
High-grade steel (optional stainless steel variants available)
CX & CPx - Heater Accessories:
| Model |
Part Number |
Used on |
| Wired 1 phase |
***/1PH |
As shown |
| Wired 3 phase |
***/3PH |
As shown |
| Uprated fan |
***/LHP |
UD/HD |
| Variable Speed Drive (inverter) |
***/INV |
All |
| Soft start option |
***/SOFT |
All |
| Heater less standard controls |
***/NC |
All |
| Heater supplied in kit form (note 1) |
***/KIT |
All |
| Heater supplied in split form |
***/SPLIT |
All |
| Galvanised heater option |
***/GALV |
All |
| 409 S/S heat exchanger |
***/409 |
All |
| Painted colour options (BS or RAL) |
***/RAL |
All |
| Model |
Part Number |
Used on |
| Combustion air intake adapter |
***/CAA |
All |
| Side or rear inlet duct spigot |
***/LDS-(S/R) |
All |
| Screened air intake |
***/SAI |
All |
| Inlet filter – EU1 |
***/FB |
All |
| Weatherproofed inlet filter – EU1 |
**EA/FB |
CPx EA |
| Proportional air damper |
***/PAD |
All |
| Weatherproofed proportional air damper |
**EA/PAD |
CPx EA |
| Two position damper motor (24v) |
2DM-24 |
PAD |
| Two position damper motor (230v) |
2DM-230 |
PAD |
| Modulating damper motor (24v) |
MDM-24 |
PAD |
| Modulating damper motor (230v) |
MDM-230 |
PAD |
| Two position damper motor (230v) |
2DM |
All |
| Model |
Part Number |
Used on |
| MC200 remote sensor |
143070031 |
All |
| MC200 duct sensor |
143070035 |
All |
| Differential Pressure Switch |
ECP/DPS |
All |
Disclaimer:
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
