Powrmatic CECx Calecon De-stratification Fans

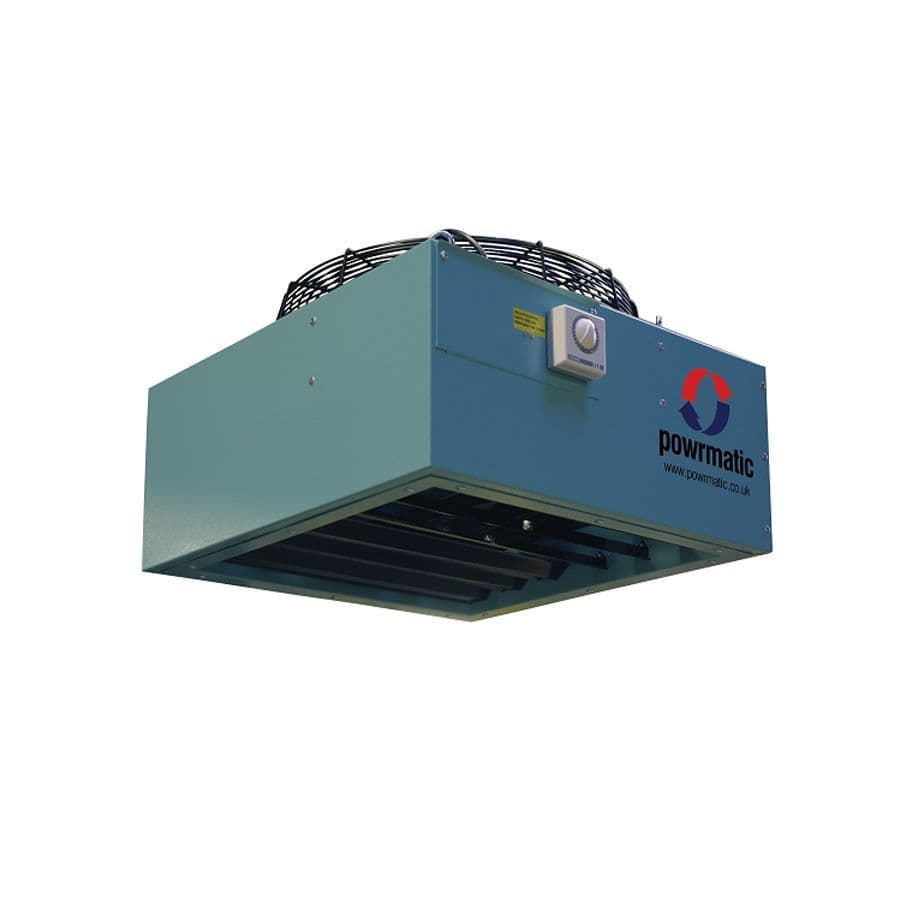

Powrmatic CECx6500 Calecon De-stratification Fan 11040m3/h 240V~50Hz

Powrmatic CECx6500 Calecon De-stratification Fan 11040m3/h 240V~50Hz

£1,017.12 £847.60 (ex. VAT)
Stock Status: In Stock

The new and extended CECx range of destratification fans from Powrmatic. The Powrmatic CECx is a heat recovery unit with low running costs and minimum maintenance It is a basic law of physics that hot air rises and in high roofed buildings this will cause a temperature gradient with hot air under the roof and cooler air at floor level. CECx destratification fans will automatically recirculation of high level hot air, reducing stratification and associated heat losses.


CECx Calecon de-stratification fans are specifically designed to lower the fuel consumption of space heating systems and at the same time, improve comfort levels. The displacement of warm air from the roof void down into the working zone converts wasted heat into useful heat reducing fuel consumption greater 15% depending upon the building height.

An additional benefit is the ability of the fans to enhance comfort levels by creating a uniform pattern of heat throughout the area within which they are installed. CECx Calecon fans comprise of a panel box construction onto which is a resiliently mounted axial fan set which discharges warm air through an adjustable punched louvered grille. Automatic thermostatic controls prohibit fan operation until the roof space temperature reaches a pre-determined level. Installation is quick and easy with fans only requiring mounting via the four eye-bolts provided and the connection of an electrical supply.


Key Product Features:

  • Ease of installation
  • Adjustable punched louvres
  • Low running costs
  • Reliable in operation with minimum maintenance
  • Extremely effective heat distribution
  • Blue paint finish (RAL 6027). Other colours to special order

Technical Data:

Model

CECx6500

Air displacement

m3/s

3.07

m3/h

11040

Mounting Height (maximum)

m

25

Mounting Height (suggested minimum)

m

6.0

Electrics

Supply

V/ph/Hz

230/1/50

Start Current

amps

5.3

Run Current

amps

3.7

Dimensions

Width

mm

808

Depth

mm

808

Overall Height

mm

310.5

Nett weight

kg

33

Noise Level

dB(A)

70

Notes:

Maximum mounting heights are based upon a terminal velocity of 0.5m/s

Noise levels are applicable to the CECx models measured 5m from appliance in a typical installation situation.
