This Kit Includes:

1 × Powrmatic BAR4/GFAC Gas Fired Heated Industrial Door Curtain
1 × Integrated centrifugal fan assembly (4 fans)
1 × Downward discharge slot with adjustable directional louvres
1 × Factory-fitted gas burner system
1 × 100mm flue spigot connection

High Capacity Gas Fired Heated Door Curtain for Wide Industrial Openings

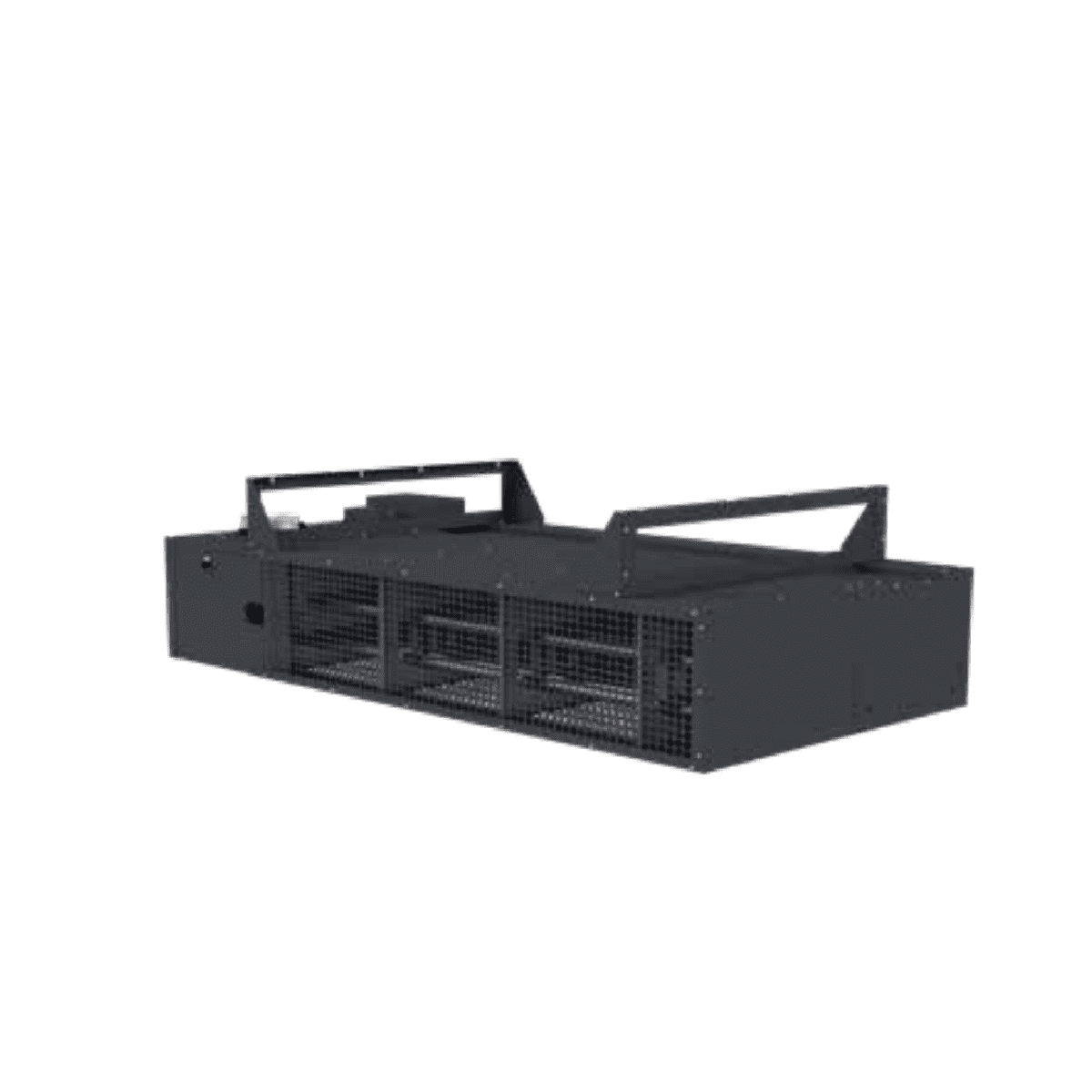

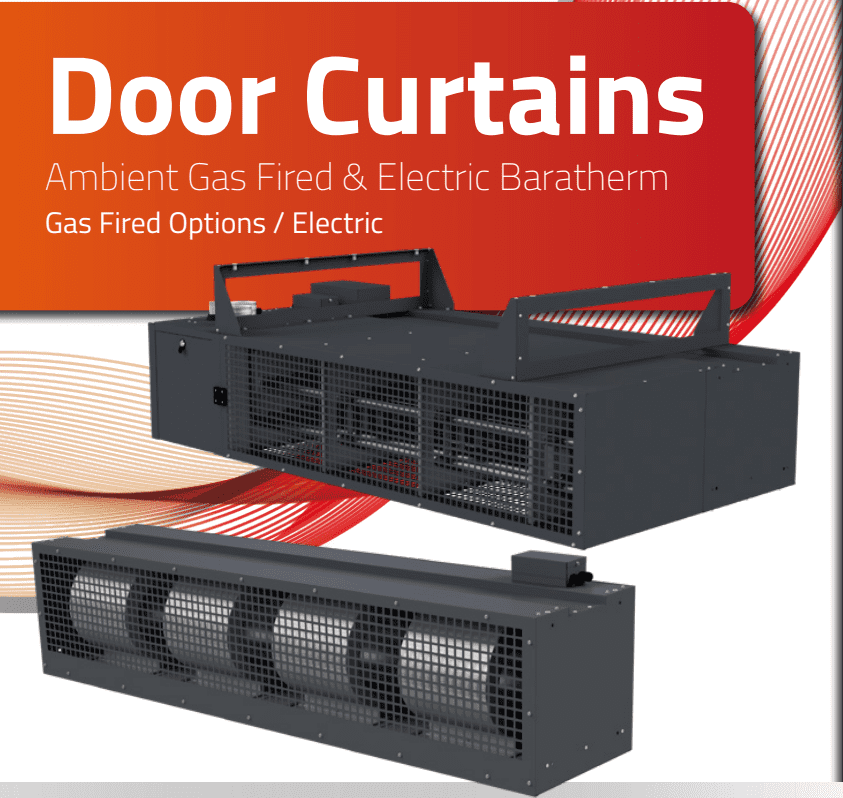

The Powrmatic BAR4/GFAC is a high-output 50kW gas fired heated door curtain designed to provide both environmental separation and active heating across large industrial door openings.

Engineered for high-level horizontal installation, the BAR4/GFAC delivers a powerful heated air stream downward across the doorway. This prevents cold air ingress while breaking up cold air pooling at floor level — a critical factor in high-traffic loading bays and logistics facilities.

With a maximum nominal output of 54.0kW and gas input (net CV) of 58.9kW on high fire, the unit provides substantial heating capacity to support wide openings up to 2,250mm. The high velocity air stream (15.3 m/s average outlet velocity) combined with four centrifugal fans ensures balanced airflow across the full module width.

The system operates on a 220-240V~50Hz single-phase supply and incorporates three-speed airflow control, allowing adjustment to suit mounting height and site conditions.

Key Product Features:

• Gas fired heated industrial door curtain
• Nominal heat output (high fire): 54.0kW
• Nominal heat output (low fire): 40.4kW
• Gas input (net CV): 58.9kW (high fire)
• Average outlet velocity: 15.3 m/s
• High speed airflow: 10,800 m³/h
• Medium speed airflow: 6,000 m³/h
• Low speed airflow: 4,000 m³/h
• Four centrifugal fans for even air distribution
• High-level horizontal mounting configuration
• Directional discharge louvres fitted
• Suitable for large warehouse loading bays
• Reduces heat loss and cold air infiltration

Technical Specifications:

Model: BAR4/GFAC
Product Type: Gas fired heated industrial door curtain

Heat Output (Nominal):
High Fire (max): 54.0kW
Low Fire (min): 40.4kW

Gas Input (Net CV):
High Fire (max): 58.9kW
Low Fire (min): 44.0kW

Airflow Volume:
High Speed: 10,800 m³/h
Medium Speed: 6,000 m³/h
Low Speed: 4,000 m³/h

Electrical Supply: 220-240V~50Hz 1Ph
Starting Current: 28.0A
Running Current: 16.0A

Fuel Connection: ¾" BSP Rc
Nominal Inlet Pressure: 20.0 mbar
Gas Consumption: 6.2 m³/h

Recommended Mounting Height (Min): 2.0 m

Overall Dimensions:
Height: 466 mm
Width: 2,250 mm
Depth: 1,150 mm

Install Clearance:
Top: 200 mm
Front (air inlet): 1,000 mm
Sides: 25 mm

Flue Diameter: 100 mm
Maximum Flue Length: 7m + 2 × 90° elbows (flue only or room sealed)
Combustion Air Spigot: 100 mm

Quantity of Fans: 4
Noise Level: 72 dB(A)
Net Weight: 103 kg

Applications:

• Large industrial warehouses
• Distribution centres
• High traffic loading bays
• Manufacturing facilities
• Logistics hubs
• Wide commercial door openings requiring heated air separation
